AhlsellProductsElectricLighting 70-8374 Downlights, spotlightsDownlights 60-99 mm holesDownlight multipack

Designlight

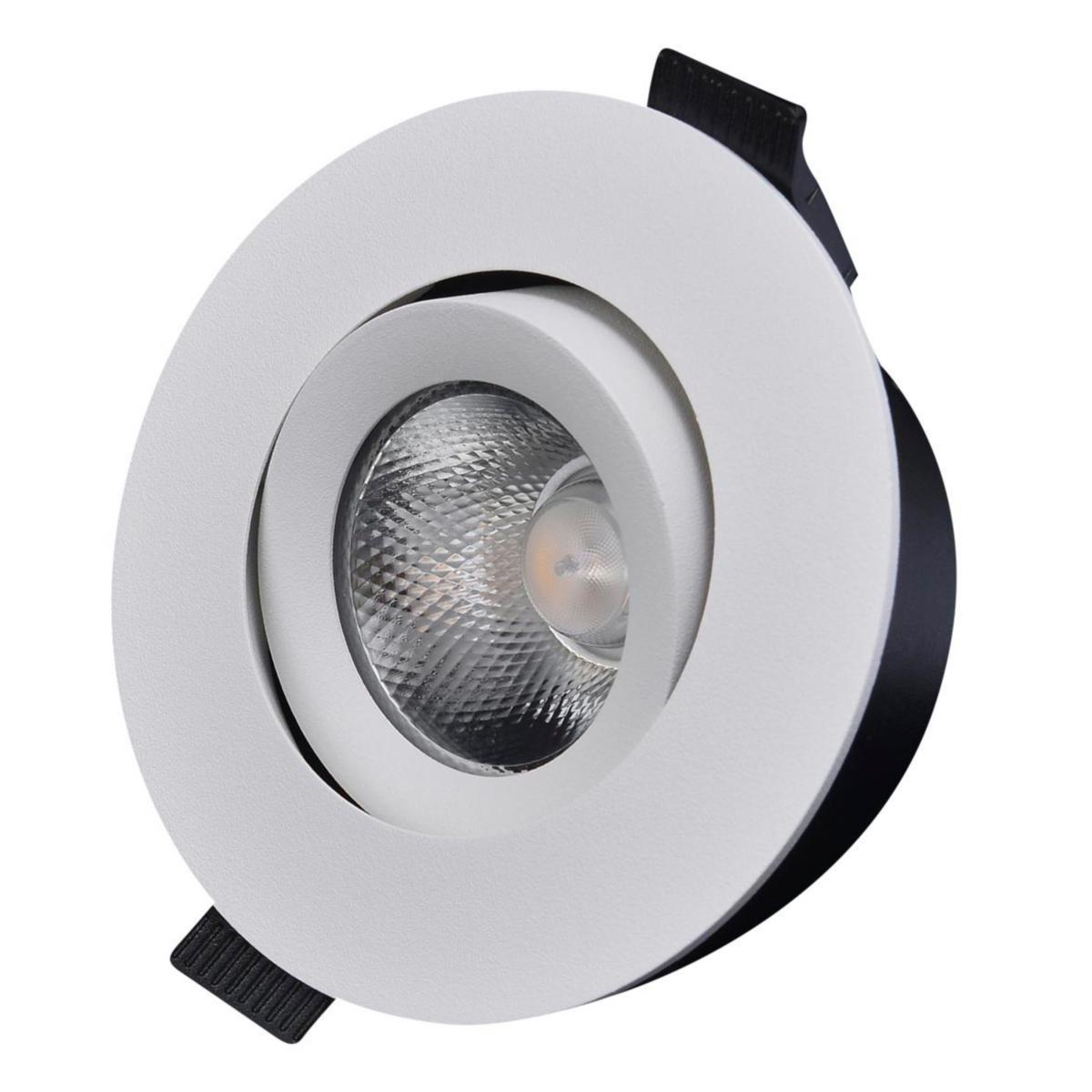

Downlight D-007 multipack
Downl D-007 3000K White 6-pack
Article number: Suppl. article no:
7476914
D-007MW30-6
to see price and stock
D-007 is equipped with the latest technology in terms of lens and reflector, which gives both an exclusive expression and a quality light. For those looking for a downlight that stands out, there is a luminaire front to order as an accessory, for example in the colors gold and chrome. Equipped with a sturdy junction box with quick connection to make it easy for the installer and which also saves time and money. The luminaire has a modular design and can be easily disassembled, which means that the life cycle is extended and can ultimately be recycled properly. High protection class and angle bar enable many different areas of use such as kitchens, bathrooms and even in indoor pitched ceilings.
- Article number: 7476914
- Suppl. article no: D-007MW30-6
- Ean no: 7340132804835
- Material class QT4440
Technical data
- Packagin Size: 1 PCS/6 PCS
- Max. system power: 7 W
- Rated luminous flux according to IEC 62722-2- 1: 558 lm
- Colour temperature: 3000 K
- Housing colour: White
- Surface brushed: No
- Beam angle: 21-40° - Medium beam
- Outer diameter: 95 mm
- Built-in diameter: 73-83 mm
- Height/depth: 39 mm
- Lamp type: LED exchangeable
- Adjustability: Swivelling
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Luminous intensity: 1377 cd
- Housing material: Aluminium
- Dimming phase cut-off (trailing edge): Yes
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Width: 95 mm
- Power factor: 0.9
- Dimming phase cut-on (leading edge): Yes
- Dimmable: Yes
- Degree of protection (IP), front side: IP44
- Degree of protection (IP), rear side: IP20
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light outlet: Direct
- Luminaire efficacy: 75 lm/W
- Suitable for built-in mounting: Yes
- Colour rendering index CRI: 90-100
- Suitable for clamp-mounting: No
- Suitable for lamp power: 5.2 W
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- Length: 95 mm
- With light sensor: No
- With movement sensor: No
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Suitable for ceiling mounting: Yes
- Surface protection: Lacquered
- Colour consistency (McAdam ellipse): SDCM6
- Covering of the luminaire with thermally insulating material possible: Yes
- Beam angle adjustable: No
- Colour of light adjustable: No
- Constant light output (CLO): No
- Luminous flux adjustable: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 100
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 200
- IFTTT support available: No
- Exchangeable control gear: Yes
- Operation by Bluetooth: No
- Energy efficiency class of the light source according to EU regulation 2019/2015: F
- Reflector colour: Silver
- Nominal current: 350 mA
- Connection type: Push-in clamp
- REACH Date: 2023-11-15
- REACH Information obligation: No
