Ledvance
Downlight Comfort

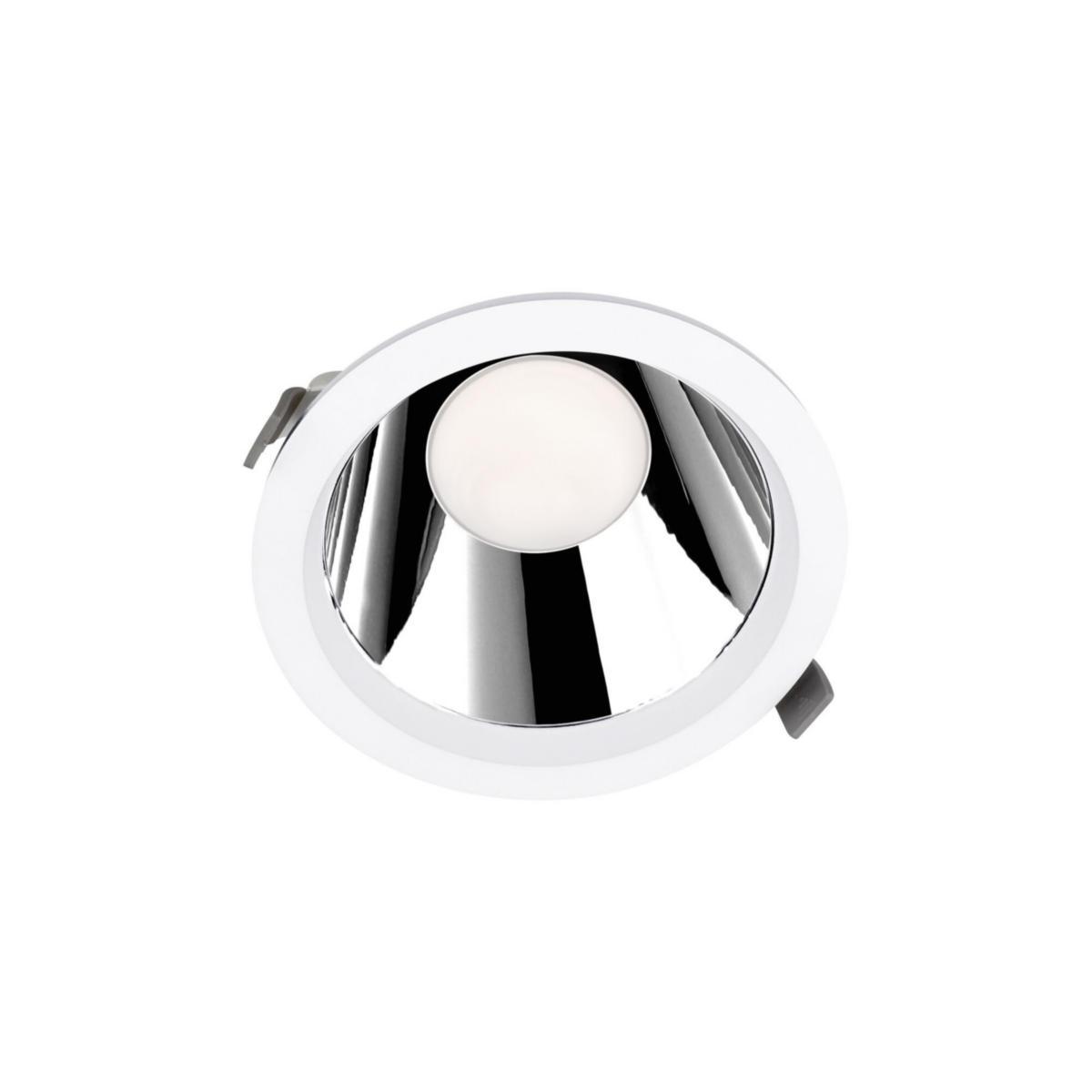

DOWNLIGHT COMFORT 18W UGR19
Article number: Suppl. article no:
7477927
4099854491085
to see price and stock
LEDVANCE DOWNLIGHT COMFORT with adjustable color temperature and lumen. Choose between 3000 and 4000K and lumen in three steps. Available with 4 different hole diameters and in opal and UGR19 versions. Excellent light quality with color rendering Ra90 and high color consistency SDCM3. High performance with efficacy up to 120 lm/W. Quick and easy installation thanks to external driver with possible through-wiring. Long service life of up to 70,000 hours (L80) and 5-year warranty. Aluminum luminaire housing. Replaceable decorative ring available as an accessory in black and gray. Frame for surface mounting available as an accessory in white, black and gray. IP44 (from the room side) makes the luminaire suitable for applications such as kitchens, bathrooms and protected outdoor areas.
- Article number: 7477927
- Suppl. article no: 4099854491085
- Ean no: 4099854491085
- Material class QT4400
Technical data
- Packagin Size: 1 PCS/8 PCS
- Max. system power: 18 W
- Rated luminous flux according to IEC 62722-2- 1: 1320-2160 lm
- Colour temperature: 3000-4000 K
- Housing colour: White
- Surface brushed: No
- Beam angle: 41-80° - Wide beam
- Outer diameter: 160 mm
- Built-in diameter: 150 mm
- Height/depth: 92 mm
- Lamp type: LED not exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: Electronic ballast
- Reflector: High-gloss
- Housing material: Aluminium
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 2
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Width: 150 mm
- Rated ambient temperature according to IEC 62722-2-1: -20-40 °C
- Power factor: 0.9
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Material cover: Plastic, opal
- Dimmable: No
- Degree of protection (IP), front side: IP44
- Degree of protection (IP), rear side: IP20
- Lamp holder: None
- Light distribution: Symmetric
- Protection class according to IEC 61140: III
- Light distributor: Reflector
- Light outlet: Direct
- Luminaire efficacy: 110-120 lm/W
- Colour rendering index CRI: 90-100
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: Yes
- Suitable for surface mounting: No
- Length: 160 mm
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 220-240 V
- Voltage type: AC
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Suitable for ceiling mounting: Yes
- Impact strength: IK03
- Type of wiring: Suitable for loop-through wiring
- Surface protection: Powder coating
- Colour consistency (McAdam ellipse): SDCM3
- Covering of the luminaire with thermally insulating material possible: No
- Beam angle adjustable: No
- Colour of light adjustable: Positions
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Constant light output (CLO): No
- Luminous flux adjustable: Positions
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 30
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 38
- IFTTT support available: Yes
- Unified Glare Ratio (UGR): 19
- Exchangeable control gear: Yes
- Operation by Bluetooth: No
- Energy efficiency class of the light source according to EU regulation 2019/2015: F
- Reflector colour: Silver
- Nominal current: 59-82 mA
- Connection type: Push-in clamp
- Compatible with Casambi: No
- Containing product according to 2019/2020/EU: Yes
- With presence detector: No
- UK Building Regs Part B fire rated - 30 minutes: No
- UK Building Regs Part B fire rated - 60 minutes: No
- UK Building Regs Part B fire rated - 90 minutes: No
- REACH Date: 2025-01-01
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
