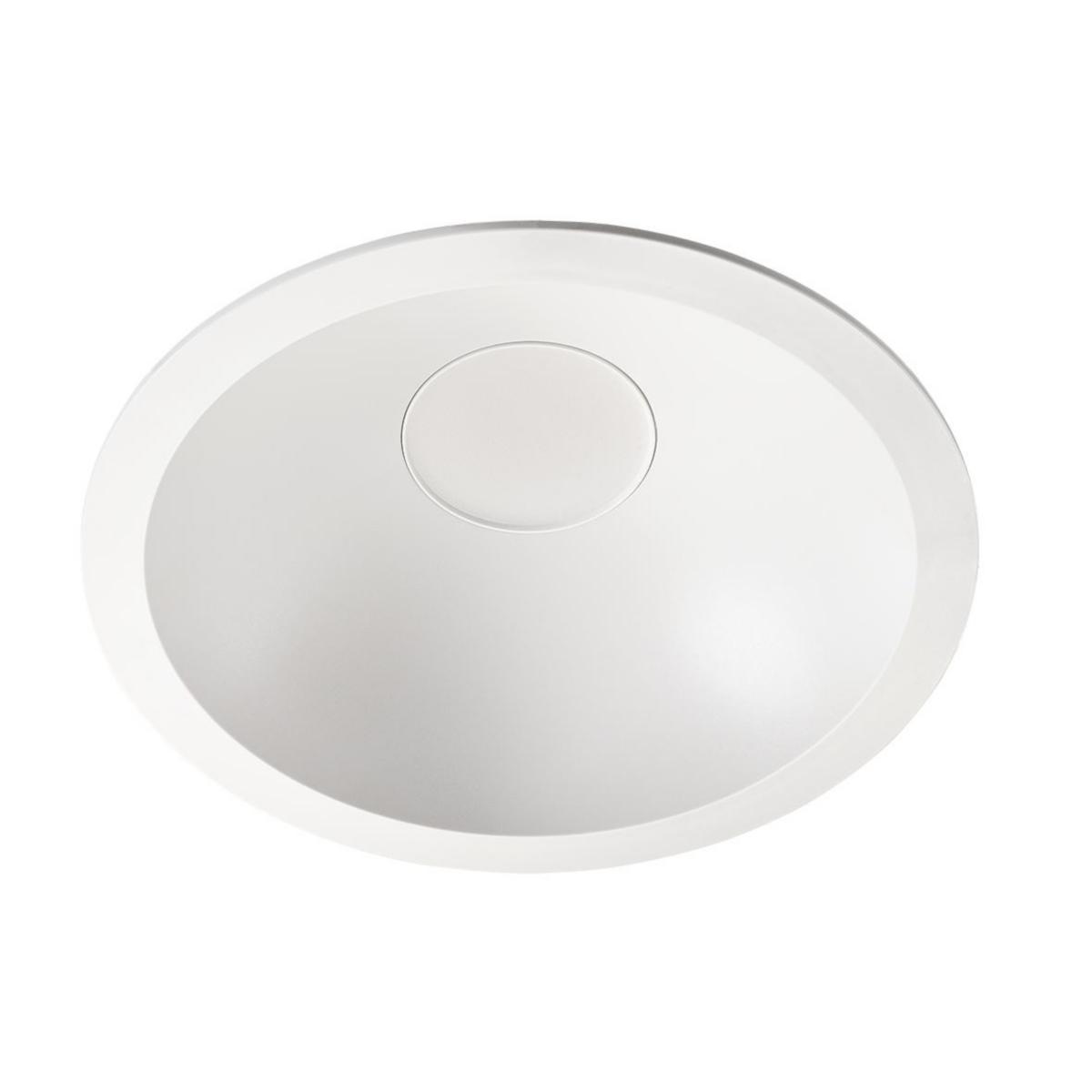

Downlight RAX Eco
Rax Eco 200 3K/4K DALI
Article number: Suppl. article no:
7477235
212587
to see price and stock
Rax Eco is a super flexible and cost-effective downlight for general lighting in public buildings, offices, corridors and more. It has integrated switches for 3000K/4000K and for 2 lumen levels, which means four combinations in one product. Matte white reflector provides high efficiency and low glare with UGR 22, depending on switch setting. Rax Eco is easily installed with springs that fit ceiling tiles with a thickness of 1-50 mm. Quick connection between downlight and driver with junction box. Connects either on screwless terminal block or on linect for quick connection system.
- Article number: 7477235
- Suppl. article no: 212587
- Ean no: 7021982125874
- Material class QT4420
Technical data
- Packagin Size: 1 PCS/8 PCS
- Type: RAX ECO 200
- Max. system power: 20 W
- Rated luminous flux according to IEC 62722-2- 1: 1400-2360 lm
- Colour temperature: 3000-4000 K
- Housing colour: White
- Surface brushed: Yes
- Beam angle: > 80° - Extreme wide beam
- Dimming DALI: Yes
- Dimming DALI-2: Yes
- Outer diameter: 216 mm
- Built-in diameter: 200 mm
- Height/depth: 93 mm
- Lamp type: LED not exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: White
- Type of control gear: Not required
- Reflector: Matt
- Housing material: Plastic
- Number of poles: 5
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- Material cover: Without cover
- Dimmable: Yes
- Degree of protection (IP), rear side: IP20
- Lamp holder: None
- Conductor cross section: 1 mm²
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light distributor: Reflector
- Light outlet: Direct
- Luminaire efficacy: 111-123 lm/W
- Suitable for number of light sources: 1
- Suitable for built-in mounting: Yes
- Colour rendering index CRI: 80-89
- Suitable for lamp power: 12-20 W
- Nominal voltage: 220-240 V
- Voltage type: AC
- Suitable for ceiling mounting: Yes
- Impact strength: IK00
- Type of wiring: Ending
- Connectable conductor cross section: 0.5-2.5 mm²
- Surface protection: Other
- Colour consistency (McAdam ellipse): SDCM3
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 80 %
- Failure rate at median useful life of 50,000 h at 25 °C ambient (tq): 20 %
- Colour of light adjustable: Positions
- Luminous flux adjustable: Positions
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 60
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 60
- Connection type: Push-in clamp
- REACH Date: 2024-08-23
- GWP-tot (A1-A3): 13,6418 kgCO2e/ST
- REACH Information obligation: No
