Airam
Downlight Flat R Duo
Down Flat R Duo 225 DIM 18W
Article number: Suppl. article no:
7475363
4146520
to see price and stock
Flat R Duo is an affordable and flexible panel luminaire/downlight with adjustable color temperature that requires minimal installation space. Manufactured in quality materials and with a high finish, which makes it suitable both in public environments and in private homes where a clean expression is sought. Flat R Duo is rated IP44, which makes it perfectly suitable for both bathrooms and other damp areas. Spring clips for easy installation. Frame in aluminium, matt white structural color and diffuser in opal acrylic. All models are dimmable and can be chained/switched.
- Article number: 7475363
- Suppl. article no: 4146520
- Ean no: 6435200269751
- Material class QT5070
Technical data
- Packagin Size: 1 PCS/16 PCS
- Max. system power: 18 W

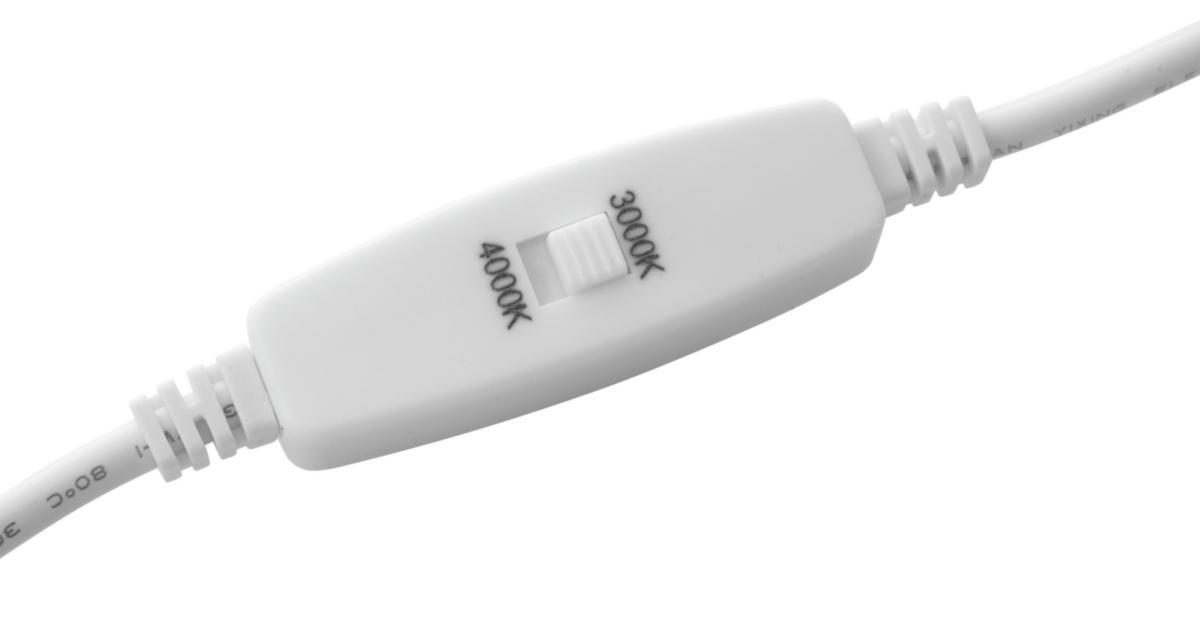

- Colour temperature: 3000-4000 K
- Housing colour: White
- Surface brushed: No
- Beam angle: Open beam/diffuse
- Dimming DALI: No
- Dimming DALI-2: No
- Outer diameter: 224 mm
- Built-in diameter: 205-210 mm
- Height/depth: 22 mm
- Lamp type: LED not exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Housing material: Aluminium
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 3
- Dimming phase cut-off (trailing edge): Yes
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Width: 224 mm
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Rated ambient temperature according to IEC 62722-2-1: 0-25 °C
- Power factor: 0.9
- Photobiological safety according to EN 62471: RG1
- Dimming phase cut-on (leading edge): Yes
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Material cover: Plastic, opal
- Lamp holder: Other
- Conductor cross section: 2.5 mm²
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light distributor: Diffuser lens/optic/panel
- Light outlet: Direct
- Suitable for number of light sources: 1
- Colour rendering index CRI: 80-89
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for lamp power: 18 W
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- Length: 224 mm
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 220-240 V
- Voltage type: AC
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Suitable for ceiling mounting: Yes
- Impact strength: IK03
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Connectable conductor cross section: 1.5-2.5 mm²
- Surface protection: Powder coating
- Colour consistency (McAdam ellipse): SDCM6
- Covering of the luminaire with thermally insulating material possible: No
- Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq): 80 %
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 70 %
- Failure rate at median useful life of 35,000 h at 25 °C ambient (tq): 5 %
- Failure rate at median useful life of 50,000 h at 25 °C ambient (tq): 10 %
- Flickering value Pst LM: 1
- Beam angle adjustable: No
- Colour of light adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Constant light output (CLO): No
- Luminous flux adjustable: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 49
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 73
- IFTTT support available: No
- Stroboscope effect value SVM: 0.4
- Unified Glare Ratio (UGR): 22
- Exchangeable control gear: Yes
- Operation by Bluetooth: No
- Energy efficiency class of the light source according to EU regulation 2019/2015: Not required
- Nominal current: 300 mA
- Connection type: Push-in clamp
- REACH Date: 2021-09-21
- REACH Information obligation: No
