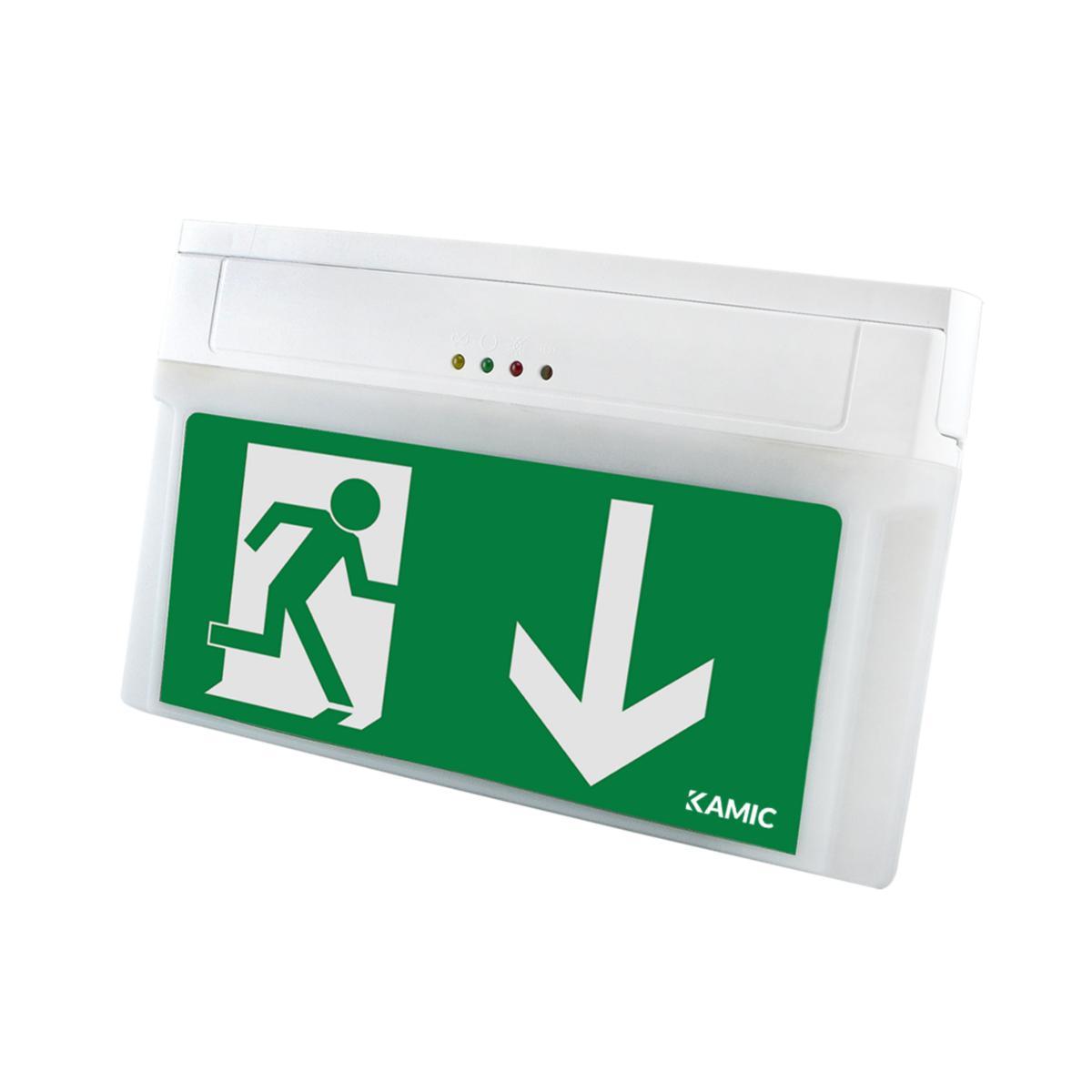

Emergency light luminaire Easy LED with light-emitting diodes, built-in unit and self-test function, Kamic

Body, diffuser and mounting console in white polycarbonate (E73 483 80). Even available in a painted version, i.e. aluminium version (E73 484 01). The fitting is suitable for banks, theatres, cinemas, hotels and other similar environments. The white LEDs have a service life of up to 10 years. The fixtures are equipped with environmentally friendly nickel metal hydride batteries. Easy LED is made in a plug-in version for simple installation and simple maintenance work. The fixture is supplied complete with a mounting console and with a set with 3 pictograms
Self test system: The Fitting is equipped with a microprocessor-based self-test system. On the upper side of the fixture body there are 3 LEDs which show the fixtures test status and a test button. Programmed functions are carried out once a week and a battery capacity test every three months. There is a test button for manual test start.
Lit green LED = the fitting has mains power and works
Blinking green LED = Battery charging
All LED’s off = fault, no battery charging
Lit yellow and green LED = battery fault
Lit green and red LED = Light source fault
Lit yellow, green and red LED = Light source and battery fault
Blinking yellow, green and red LED = test in progress
Mains power: 230 V 50/60 Hz
Plug-in system: Yes
Light source included.
Battery: NiMH 4.8 V 0.6 Ah
