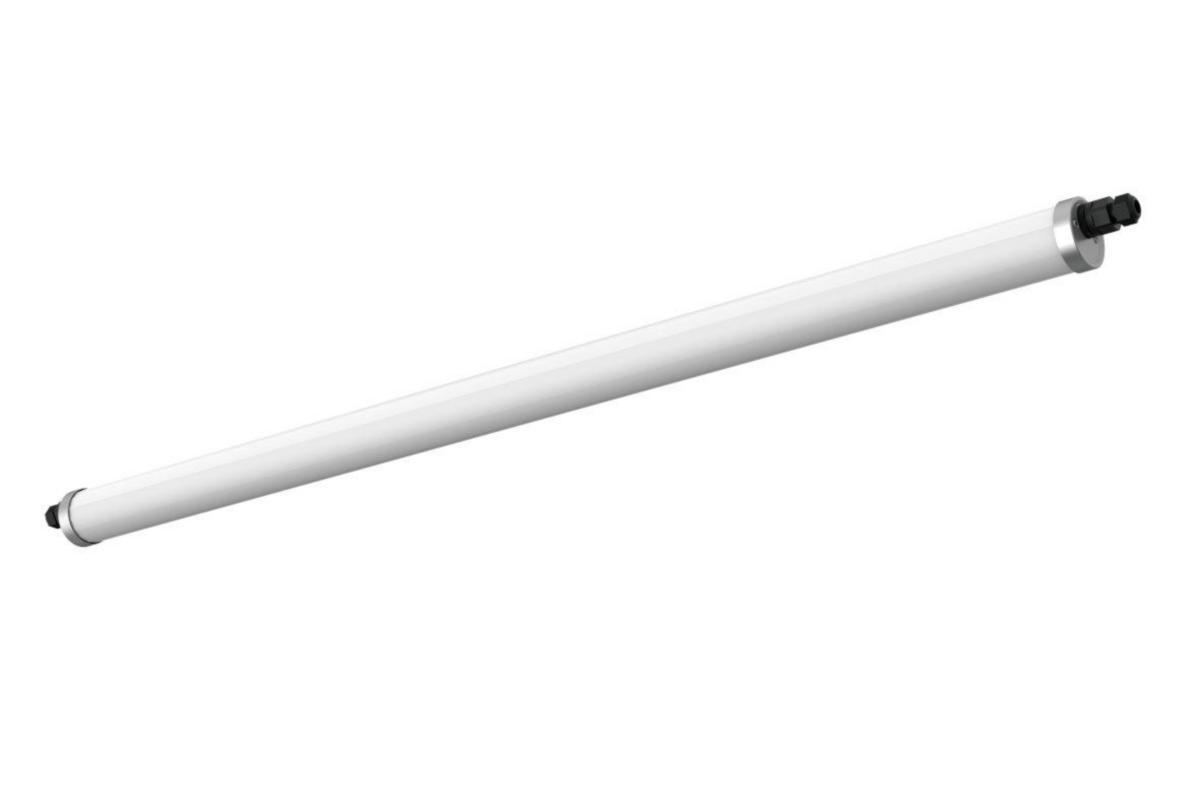

Industrial luminaire Monsun 31 Tube
MONSUN31TUBE IP67 4K ON/OFF
Article number: Suppl. article no:
7219698
51FT107N480A
to see price and stock
Monsun 31 Tube has a high degree of protection IP67 / IP69K to withstand the pressure from high-pressure washing and is therefore suitable for, for example, laundry halls. The fixture is made to withstand noxious gases from tire stores to barns. It has stainless steel end pieces (V4A) and is always switchable.
- Article number: 7219698
- Suppl. article no: 51FT107N480A
- Ean no: 4058352701256
- Material class QT1790
Technical data
- Max. system power: 50 W
- Rated luminous flux according to IEC 62722-2- 1: 8000 lm
- Colour temperature: 4000 K
- Lamp type: LED not exchangeable
- Housing colour: White
- Dimming DALI: No
- Length: 1560 mm
- Width: 75 mm
- Height/depth: 83 mm
- Housing material: Plastic
- Degree of protection (IP): IP67
- Impact strength: IK07
- Protection class according to IEC 61140: I
- With light source: Yes
- Type of control gear: LED operating device voltage-controlled
- With control gear: No
- Nominal voltage: 220-240 V
- Voltage type: AC
- Beam angle: > 80° - Extreme wide beam
- Number of poles: 3
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: Yes
- Dimming programmable: No
- Colour rendering index CRI: 80-89
- Lamp holder: None
- Conductor cross section: 2.5 mm²
- Light distribution: Symmetric
- Colour of light: White
- Light distributor: Diffuser lens/optic/panel
- With protective cover: Yes
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Rated ambient temperature according to IEC 62722-2-1: -20-40 °C
- Colour consistency (McAdam ellipse): SDCM4
- Luminaire efficacy: 160 lm/W
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 80 %
- Failure rate at median useful life of 50,000 h at 25 °C ambient (tq): 50 %
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 16
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 27
- Exchangeable control gear: No
- Energy efficiency class of the light source according to EU regulation 2019/2015: D
- Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C): Yes
- Connection type: Push-in clamp
- REACH Date: 2024-04-24
- REACH Information obligation: No
