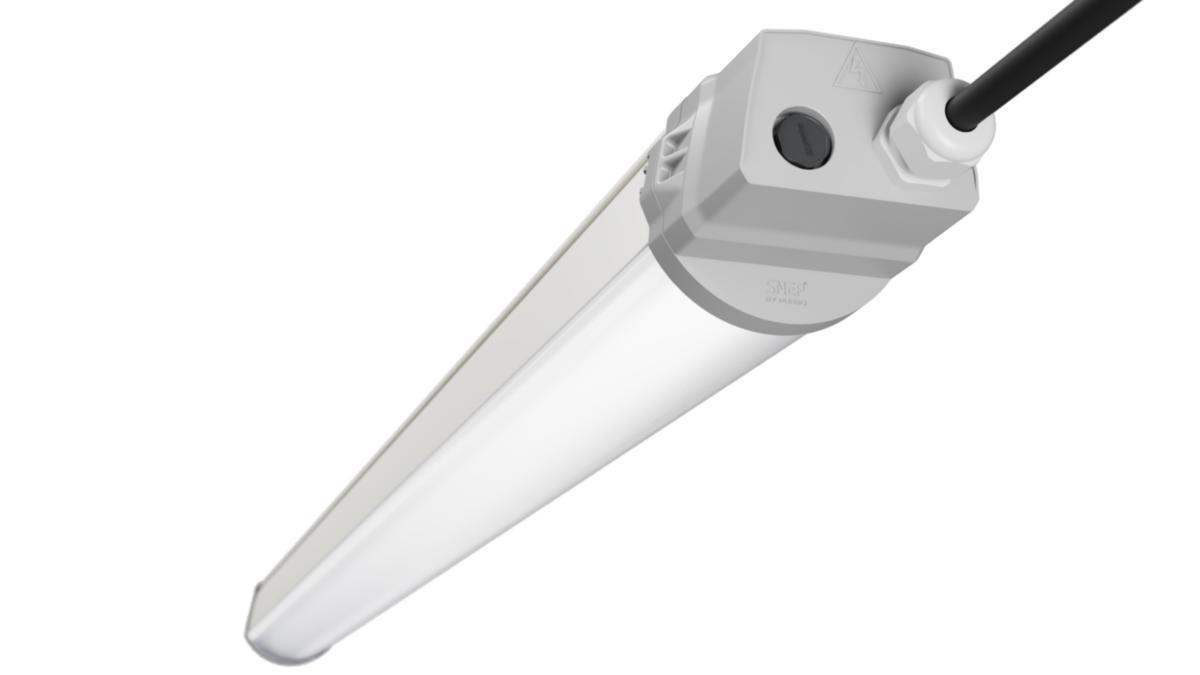

Industrial luminaire SNEP® MODE P
IND 5200LM 35W 4K DA
Article number: Suppl. article no:
7221324
P04MW840LODACLO35WIP
to see price and stock
The robust SNEP® MODE P, thanks to its wide light distribution, is a natural choice for lighting in parking garages, production facilities and warehouses. The high IP65 encapsulation class and the wide operating temperature and luminous flux range enable installation in various locations. The luminaire is available in three lengths and several connection methods and mounting options. The product is quick and easy to install.
- Article number: 7221324
- Suppl. article no: P04MW840LODACLO35WIP
- Ean no: 6438494010313
- Material class QT1710
Technical data
- Max. system power: 45 W
- Rated luminous flux according to IEC 62722-2- 1: 5200 lm
- Colour temperature: 4000 K
- Housing colour: White
- Degree of protection (IP): IP65
- Protection class according to IEC 61140: I
- Nominal voltage: 220-240 V
- Voltage type: AC/DC
- Width: 85 mm
- Height/depth: 80 mm
- Length: 1310 mm
- Colour rendering index CRI: 80-89
- Colour of light: White
- Lamp type: LED exchangeable
- Material: Aluminium
- With light source: Yes
- Covering of the luminaire with thermally insulating material possible: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: Yes
- Number of poles: 5
- Dimmable: Yes
- Dimming DALI-2: Yes
- Dimming LineSwitch: Yes
- Power factor: 0.95
- Constant light output (CLO): Yes
- Conductor cross section: 2.5 mm²
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Type of wiring: Loop-through wiring included
- Energy efficiency class of the light source according to EU regulation 2019/2015: B
- Luminaire efficacy: 149 lm/W
- Connection type: Push-in clamp
- Connectable conductor cross section: 1-2.5 mm²
- Impact strength: IK07
- REACH Date: 2025-06-12
- REACH Information obligation: No
