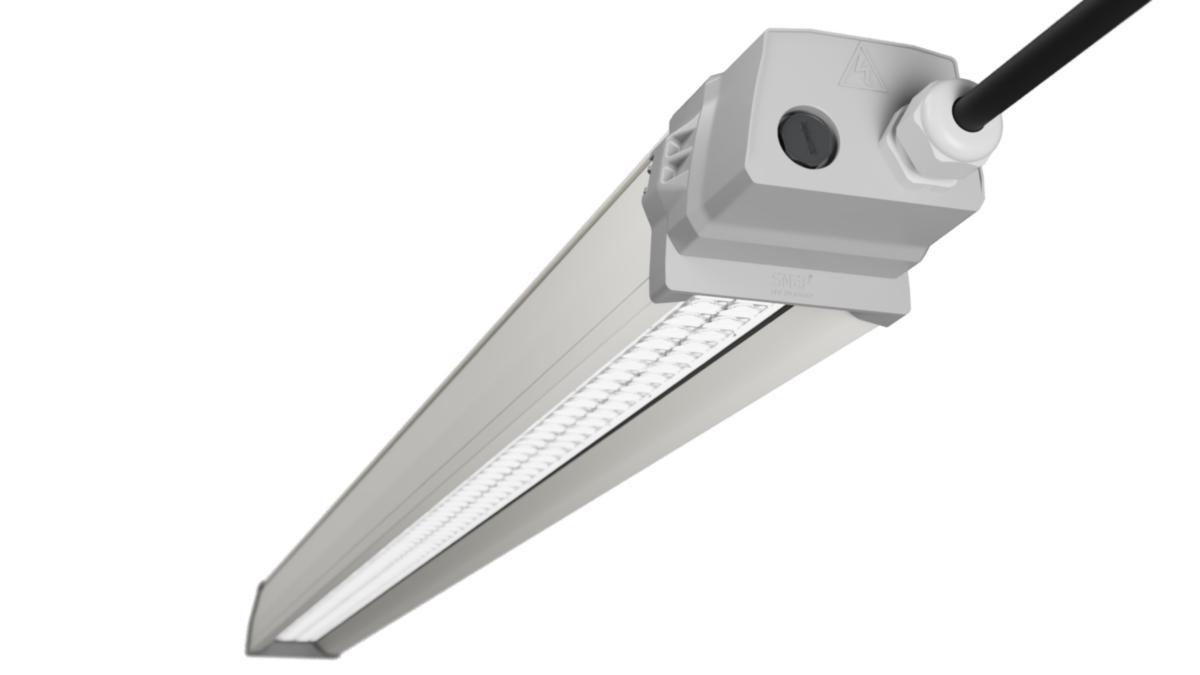

Industrial luminaire SNEP® MODE L
IND 12700LM 80W 4K DA
Article number: Suppl. article no:
7221321
L05L90G840HO2DACLO80
to see price and stock
The master of light, the SNEP® MODE L luminaire is ideal for shops, logistics, production, education, sports and industrial premises at all heights thanks to its versatile and technically excellent light distributions. The high protection class IP65 with a wide operating temperature and light output range enables a wide range of applicability from one type of object to another. The luminaire is available in two lengths and several connection and mounting options. The product is quick and easy to install. The brackets for the SNEP® Mode series are ordered separately.
- Article number: 7221321
- Suppl. article no: L05L90G840HO2DACLO80
- Ean no: 6438494010283
- Material class QT1710
Technical data
- Max. system power: 99 W
- Rated luminous flux according to IEC 62722-2- 1: 12700 lm
- Colour temperature: 4000 K
- Housing colour: Grey
- Degree of protection (IP): IP65
- Protection class according to IEC 61140: I
- Nominal voltage: 220-240 V
- Voltage type: AC/DC
- Width: 88 mm
- Height/depth: 85 mm
- Length: 1586 mm
- Colour rendering index CRI: 80-89
- Lamp type: LED exchangeable
- Material: Aluminium
- With light source: Yes
- Covering of the luminaire with thermally insulating material possible: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: Yes
- Number of poles: 5
- Dimmable: Yes
- Dimming DALI-2: Yes
- Dimming LineSwitch: Yes
- Power factor: 0.95
- Constant light output (CLO): Yes
- Conductor cross section: 2.5 mm²
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Type of wiring: Loop-through wiring included
- Energy efficiency class of the light source according to EU regulation 2019/2015: B
- Luminaire efficacy: 159 lm/W
- Connection type: Push-in clamp
- Connectable conductor cross section: 1-2.5 mm²
- Impact strength: IK07
- REACH Date: 2025-06-12
- REACH Information obligation: No
