I-VALO

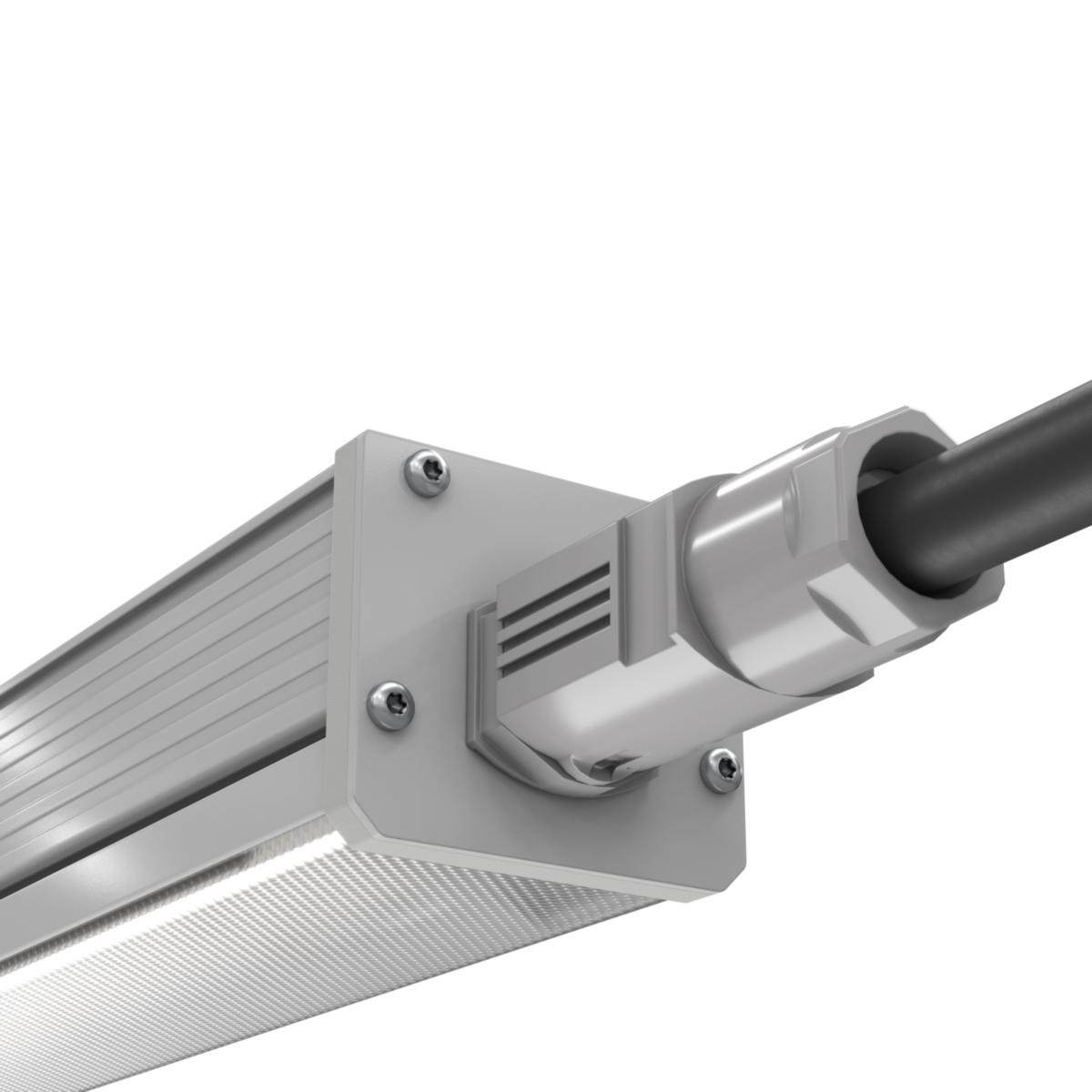

Industrial luminaire Arvo
Industrial LED luminaire
Article number: Suppl. article no:
7219276
AR12X000TW
to see price and stock
Robust linjär industriarmatur i anodiserad aluminium. Kupa av Mikroprismatisk akryl (PMMA) Enkel anslutning i gavel utan att behöva öppna armaturen.
TW= Through-Wire. Genomgående ledning inkluderad.
TW= Through-Wire. Genomgående ledning inkluderad.
- Article number: 7219276
- Suppl. article no: AR12X000TW
- Material class QT1880
Technical data
- Type: TW
- Max. system power: 37 W
- Rated luminous flux according to IEC 62722-2- 1: 5400-5800 lm
- Colour temperature: 4000 K
- Lamp type: LED exchangeable
- Housing colour: Aluminium
- Dimming DALI-2: No
- Length: 1367 mm
- Width: 67 mm
- Height/depth: 60 mm
- Housing material: Aluminium
- Degree of protection (IP): IP65
- Impact strength: IK07
- Protection class according to IEC 61140: I
- With light source: Yes
- Type of control gear: LED operating device current-controlled
- With control gear: Yes
- Nominal voltage: 220-240 V
- Voltage type: AC
- Beam angle: > 80° - Extreme wide beam
- Number of poles: 5
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: Yes
- Power factor: 0.95
- Colour rendering index CRI: 80-89
- Dimmable: No
- Conductor cross section: 2.5 mm²
- Light distribution: Symmetric
- Light distributor: Diffuser lens/optic/panel
- Material reflector: Aluminium
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Rated ambient temperature according to IEC 62722-2-1: -20-50 °C
- Reflector: Matt
- Type of wiring: Loop-through wiring included
- Colour consistency (McAdam ellipse): SDCM3
- Luminaire efficacy: 146-157 lm/W
- Beam angle adjustable: No
- Colour of light adjustable: No
- Luminous flux adjustable: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 22
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 36
- Exchangeable control gear: Yes
- Operation by Bluetooth: No
- Energy efficiency class of the light source according to EU regulation 2019/2015: B
- Reflector colour: Other
- Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C): Yes
- Connection type: Push-in clamp
- Connectable conductor cross section: 1-2.5 mm²
- Suitable for suspended mounting: Yes
- Suitable for ceiling mounting: Yes
- Suitable for wall mounting: Yes
- With movement sensor: No
- REACH Date: 2024-08-27
- REACH Information obligation: No
