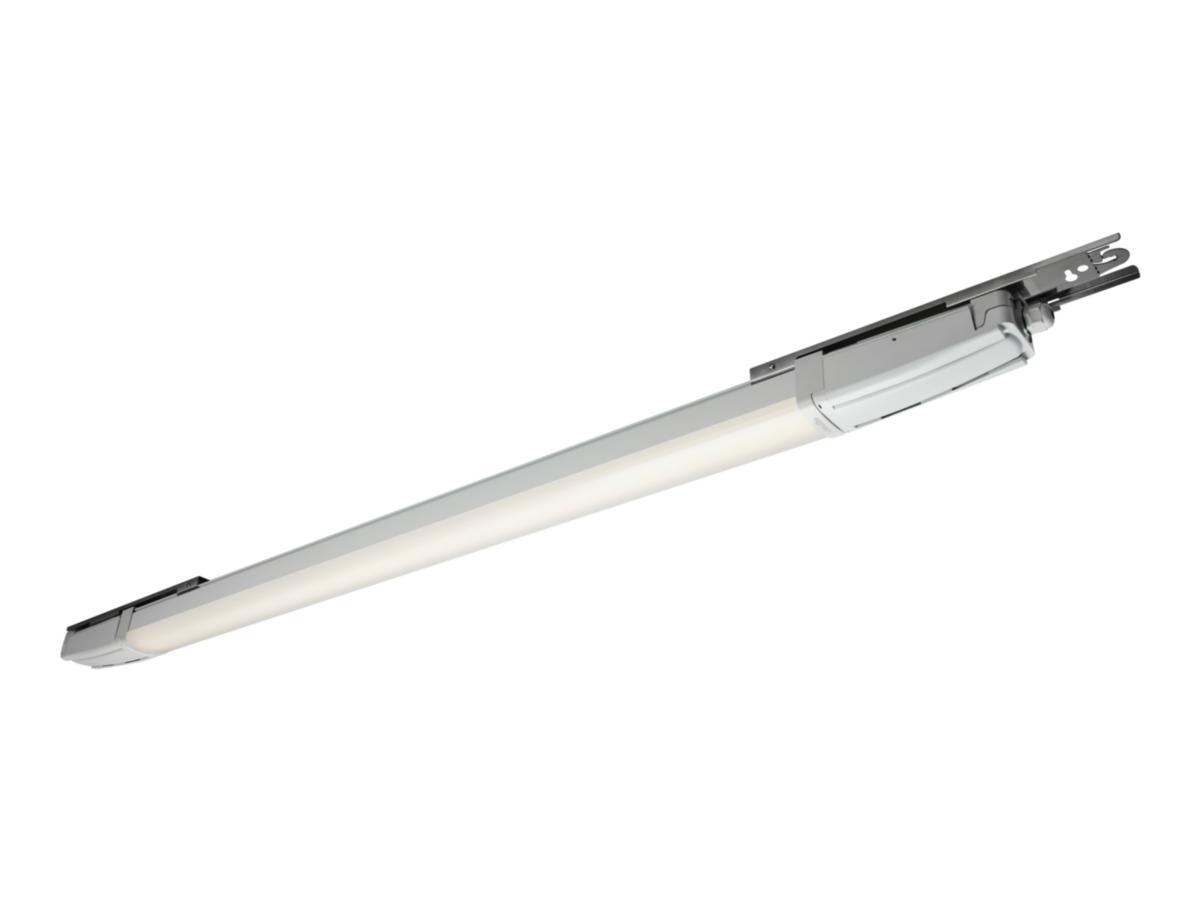

Industrial luminaire Liteline IP66+
Liteline IP66+ 1500
Article number: Suppl. article no:
7219269
5168
to see price and stock

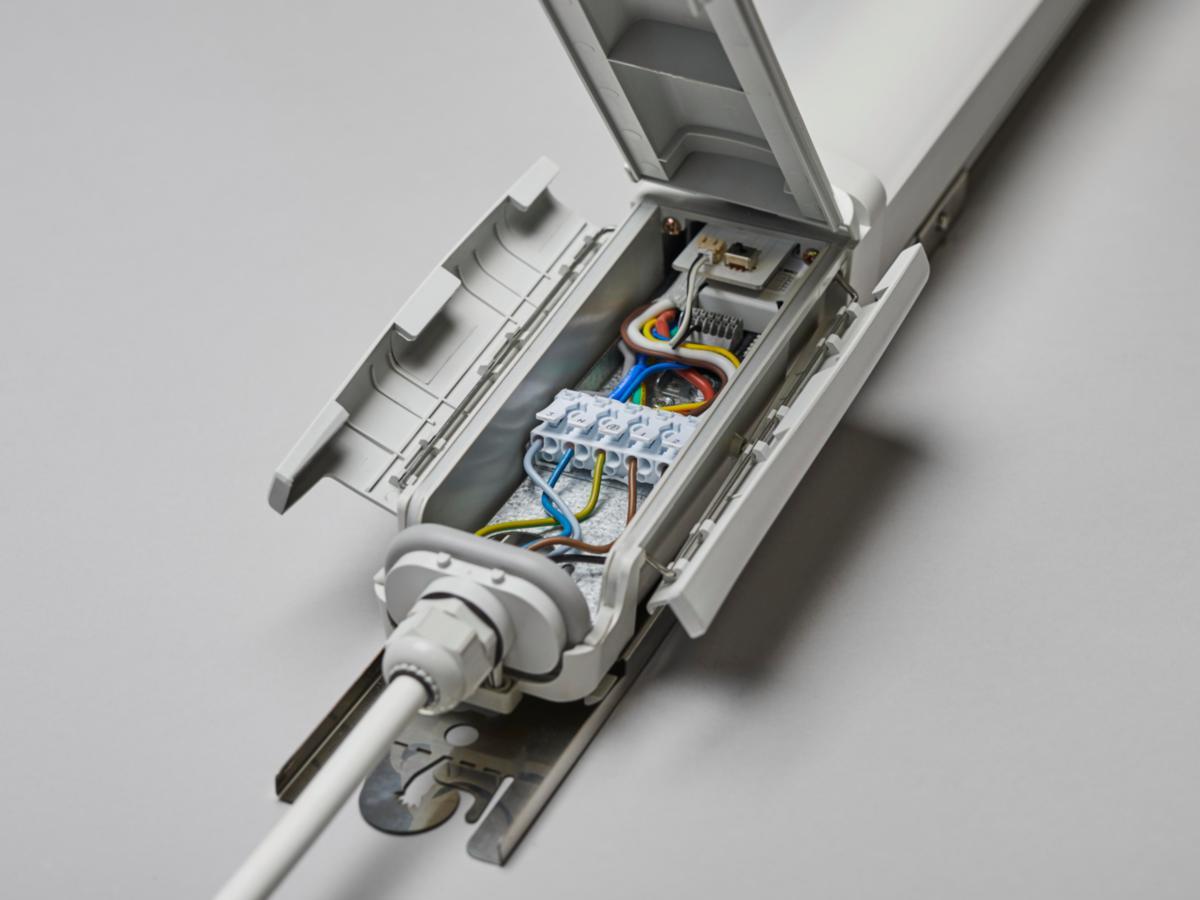

Liteline IP66+ is a luminaire for demanding environments, designed to withstand corrosive conditions and suitable for spaces such as pig pens, cow pens and horse stables. The well-thought-out design enables connection and access to drivers without opening the housing. Control the lighting via On/Off or DALI. The sliding brackets make installation quick and easy. With Liteline IP66+ you get replaceable LED and drivers, as well as the option to select a color temperature of 3000K/4000K and adjust the light output via DIP switch. On/Off 5x2.5 mm². Over-wiring, M20 screw connection in each end and an extra accessory with 2 M20 screw connections if necessary. Adapted for mounting on a luminaire rail, keyhole for ceiling mounting and integrated wire suspension with hook and hook lock. D-marked for protection against increased fire risk.
- Article number: 7219269
- Suppl. article no: 5168
- Ean no: 7392971150642
- Material class QT1900
Technical data
- Packagin Size: 1 PCS/4 PCS
- Max. system power: 55 W
- Rated luminous flux according to IEC 62722-2- 1: 5500-8550 lm
- Colour temperature: 3000-4000 K
- Lamp type: LED exchangeable
- Housing colour: Grey
- Length: 1595 mm
- Width: 77 mm
- Height/depth: 72 mm
- Housing material: Plastic
- Degree of protection (IP): IP66
- Impact strength: IK07
- Protection class according to IEC 61140: I
- With light source: Yes
- Type of control gear: LED operating device current-controlled
- With control gear: Yes
- Nominal voltage: 220-240 V
- Voltage type: AC
- Beam angle: > 80° - Extreme wide beam
- Number of poles: 5
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: Yes
- Power factor: 0.93
- Colour rendering index CRI: 80-89
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Dimmable: No
- Conductor cross section: 2.5 mm²
- Light distribution: Symmetric
- Colour of light: White
- Light distributor: Diffuser lens/optic/panel
- Suitable for number of light sources: 1
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Rated ambient temperature according to IEC 62722-2-1: -25-35 °C
- Type of wiring: Suitable for loop-through wiring
- Colour consistency (McAdam ellipse): SDCM3
- Luminaire efficacy: 155-157 lm/W
- Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq): 80 %
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 92 %
- Total harmonic distortion (THD): 10 %
- Beam angle adjustable: No
- Colour of light adjustable: Positions
- Constant light output (CLO): No
- Luminous flux adjustable: Positions
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 35
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 35
- Exchangeable control gear: Yes
- Nominal current: 700-1050 mA
- Connection type: Push-in clamp
- Connectable conductor cross section: 0.5-2.5 mm²
- Suitable for suspended mounting: Yes
- Suitable for ceiling mounting: Yes
- Suitable for wall mounting: Yes
- With movement sensor: No
- Containing product according to 2019/2020/EU: Yes
- REACH Date: 2025-06-16
- REACH Information obligation: No
