AhlsellProductsElectricLighting 70-8372 Industrial luminairesIndustrial luminaires IP54-68 and accessoriesIndustrial luminaires IP54-68
Ledvance

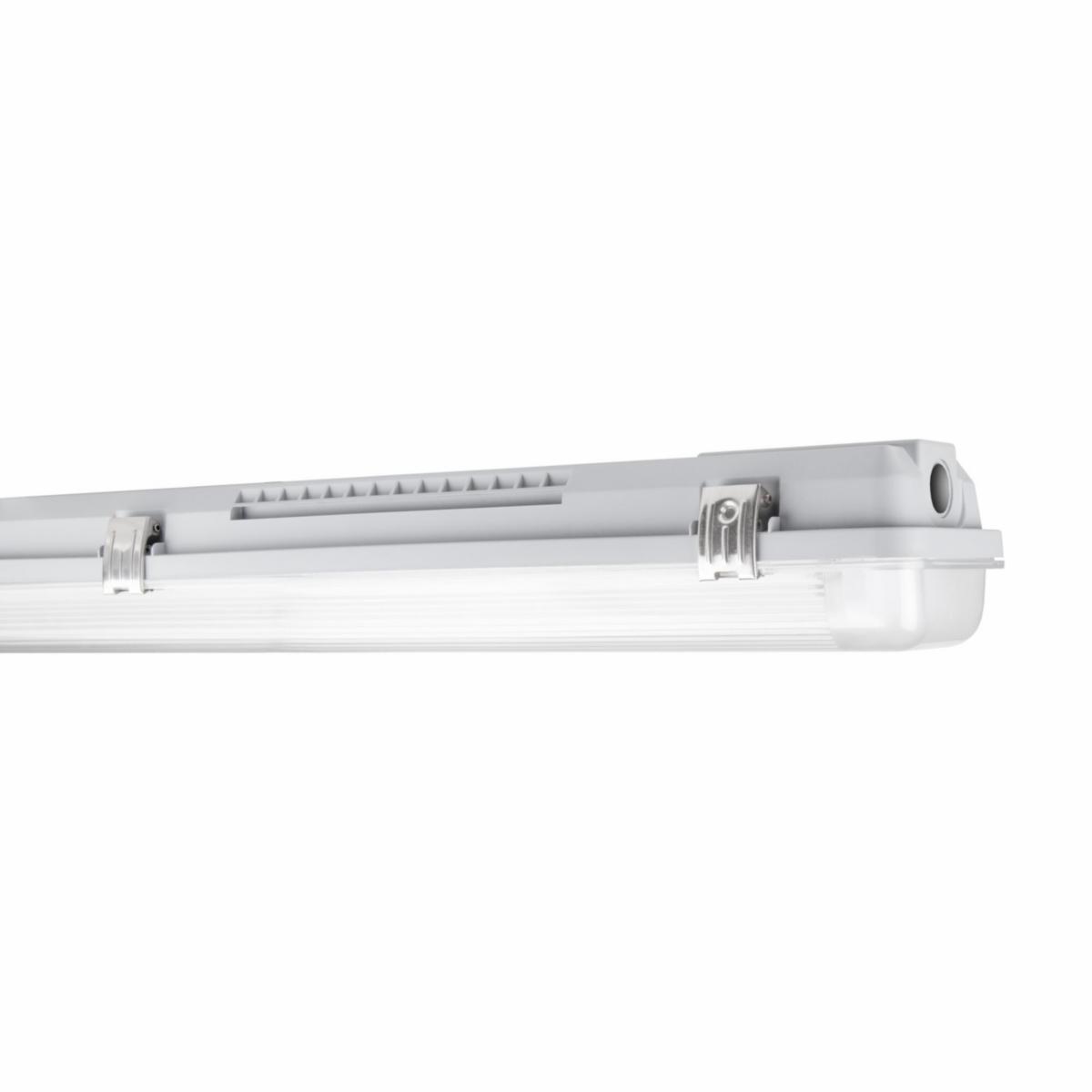

Industrial luminaire Damp Proof excl light source
DAMP PROOF HOUSING 1500X2
Article number: Suppl. article no:
7218871
4099854118210
to see price and stock
LEDVANCE DAMP PROOF luminaire housing for directly connected LED fluorescent tubes. Wide mounting brackets, easy opening function of the luminaire and cable gland. Clamps and mounting brackets in stainless steel are included with the fixture. Available in lengths 600 mm, 1200 mm and 1500 mm for 1 or 2 LED fluorescent tubes. Delivered excluding LED tubes.
- Article number: 7218871
- Suppl. article no: 4099854118210
- Ean no: 4099854118210
- Material class QT1910
Technical data
- Packagin Size: 1 PCS/6 PCS
- Design: 2x LED
- Dimming DALI: No
- Dimming DALI-2: No
- With movement sensor: No
- Housing colour: Grey
- Housing material: Plastic
- Degree of protection (IP): IP65
- Lamp holder: G13
- Length: 1585 mm
- Width: 95 mm
- Height/depth: 70 mm
- Lamp type: LED exchangeable
- Nominal voltage: 220-240 V
- Suitable for number of light sources: 2
- Impact strength: IK08
- Material cover: Plastic, opal
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 3
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming with push-button: No
- Dimming mains voltage modulation: No
- Dimming phase cut-off (trailing edge): No
- Dimming phase cut-on (leading edge): No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- With control gear: No
- Filament test according to IEC 60695-2-11: 850 °C - 30 s
- Dimmable: No
- Light distribution: Symmetric
- Light distributor: Other
- Light outlet: Direct
- Suitable for built-in mounting: No
- Suitable for light line configuration: No
- Suitable for emergency lighting: No
- Suitable for suspended mounting: Yes
- Suitable for surface mounting: Yes
- With light source: No
- With light sensor: No
- With air slots: No
- Rated ambient temperature according to IEC 62722-2-1: -30-40 °C
- Suitable for ceiling mounting: Yes
- Type of grid: Matt
- Protection class according to IEC 61140: II
- Voltage type: AC
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Covering of the luminaire with thermally insulating material possible: No
- Operation by Bluetooth: No
- Surface protection housing: Plastic-coated
- Beam angle adjustable: No
- Colour of light adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Constant light output (CLO): No
- Luminous flux adjustable: No
- IFTTT support available: Yes
- Exchangeable control gear: No
- Compatible with Casambi: No
- Suitable for wall mounting: Yes
- Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C): No
- Connection type: Push-in clamp
- REACH Date: 2023-01-01
- REACH contains candidate substances: Bly
- Dimming LineSwitch: No
- Dimming Sine Wave Reduction: No
- REACH Information obligation: Yes
- Emergency power supply integrated: No
