Industrial fixture Indy 66 with industrial fittings - IND LUM 55W 8000LM 4000K IND D INDY66
D
a-collection

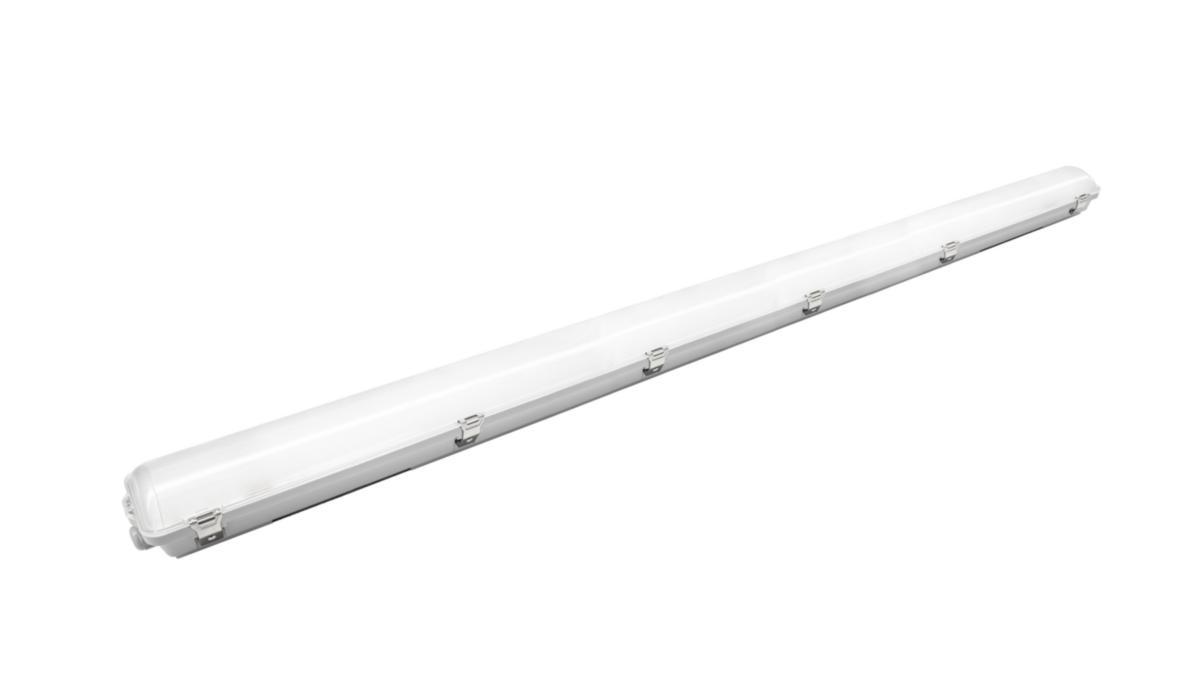

Industrial fixture Indy 66 with industrial fittings

IND LUM 55W 8000LM 4000K IND D INDY66
Article number:
7215916





 to see price and stock
Energimärkt D
Luminaire for garages, wet rooms or other equivalent indoor environments that require IP66 and functional lighting. D-marked. This version with industrially adapted driver. Not suitable for installation in washrooms, animal stables or other environments with aggressive chemicals. Body and diffuser in polycarbonate with stainless steel clips. Can be mounted directly to the ceiling/wall, suspended or on a cable. Stainless steel mounting brackets and a bracket for cable mounting are included. The diffuser can be locked with the included security screw. Connection: Cable entry through PG 13.5 knockouts in the ends. Cable glands are included. Prepared for over-wiring in the ends with a 5G2.5 mm terminal block.
  • Article number:
    7215916
  • Ean no:
    7333123081223
  • Material class
    QT1600
Technical data
  • Packagin Size: 1 ST/6 ST
  • Energy label: D
  • Max. system power: 42 W
  • Rated luminous flux according to IEC 62722-2- 1: 6000 lm
  • Colour temperature: 4000 K
  • Dimming DALI: No
  • With movement sensor: No
  • Housing colour: Grey
  • Housing material: Plastic
  • Degree of protection (IP), front side: IP66
  • Degree of protection (IP), rear side: IP66
  • Length: 1520 mm
  • Width: 105 mm
  • Height/depth: 85 mm
  • Lamp type: LED not exchangeable
  • Nominal voltage: 220-240 V
  • Impact strength: IK08
  • Material cover: Plastic matt/satinized
  • Number of poles: 5
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: Yes
  • Colour rendering index CRI: 80-89
  • Dimmable: No
  • Conductor cross section: 2.5 mm²
  • Suitable for suspended mounting: Yes
  • Rated life time L80/B10 at 25 °C: 100000 h
  • Rated ambient temperature according to IEC 62722-2-1: -25-50 °C
  • Suitable for ceiling mounting: Yes
  • Type of wiring: Loop-through wiring included
  • Colour consistency (McAdam ellipse): SDCM3
  • Suitable for wall mounting: Yes
  • REACH Date: 2025-04-15
  • REACH Information obligation: No
