Industrial luminaire Liny Basic IP44
Ind. Liny Basic IP44 1300 3K
Article number: Suppl. article no:
7218514
L8-1300
to see price and stock
Industrial luminaire IP44 with selectable power. With opal dome, for a softer light. 110 degree beam angle. Liny Basic is switchable with 5-pole terminals (5x2.5mm²) at each end. The ends are easy to open without tools for easy access during installation, they are locked with a magnet. Insertion holes in the ends or on the back plate at the sides/in the middle. Keyhole for attachment. Suitable for both new installation and as a replacement luminaire for fluorescent luminaires with T8 and T5.
- Article number: 7218514
- Suppl. article no: L8-1300
- Ean no: 7340132805580
- Material class QT1890
Technical data
- Packagin Size: 1 PCS/6 PCS
- Energy label: C
- Max. system power: 40 W
- Rated luminous flux according to IEC 62722-2- 1: 5600 lm
- Colour temperature: 3000 K
- Dimmable: No
- Dimming DALI: No
- Dimming DALI-2: No
- With movement sensor: No
- With light sensor: No
- With light source: Yes
- Degree of protection (IP): IP44
- Length: 1295 mm
- Width: 85 mm
- Height/depth: 70 mm

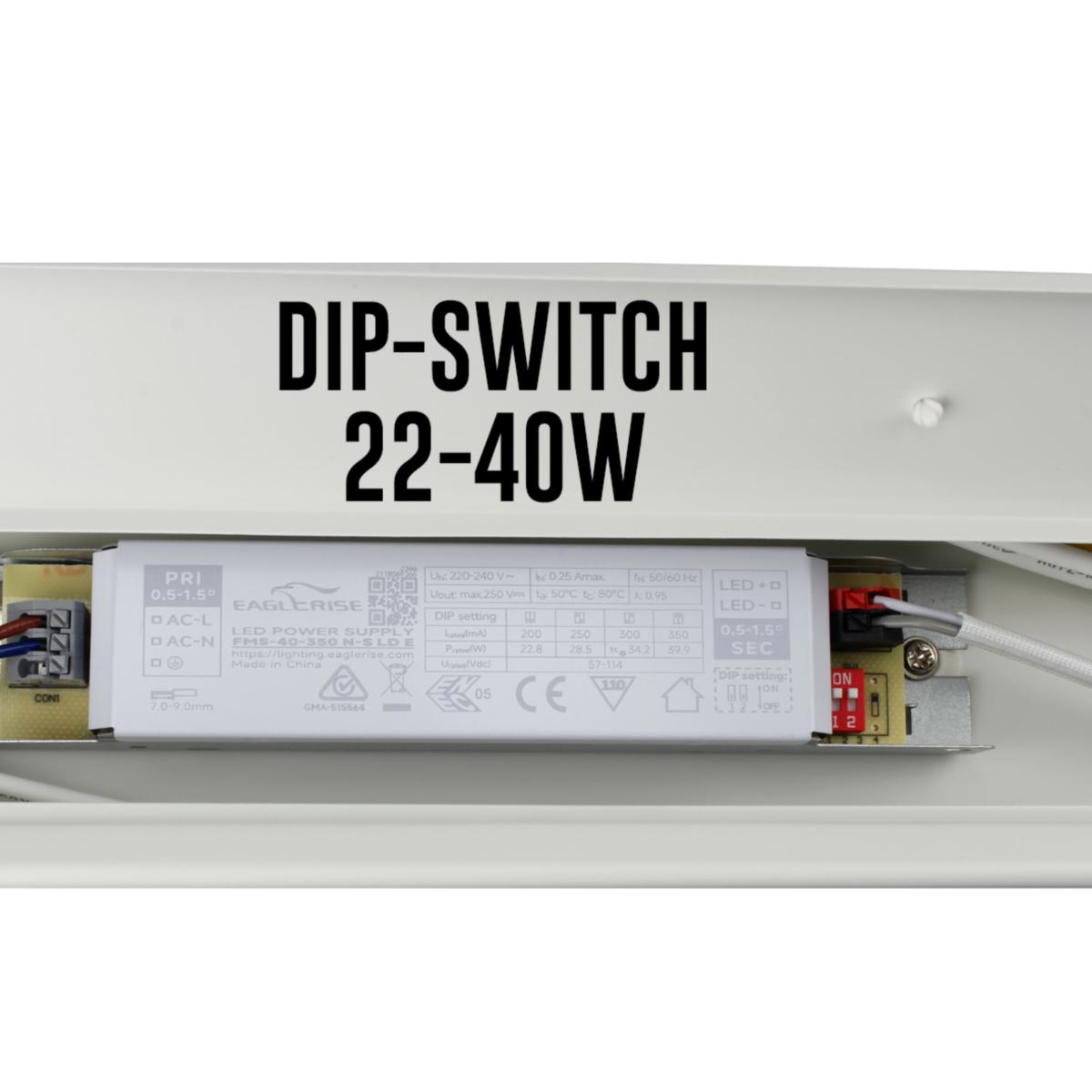

- Suitable for lamp power: 22-40 W
- Lamp type: LED exchangeable
- Type of wiring: Loop-through wiring included
- Suitable for ceiling mounting: Yes
- Suitable for surface mounting: Yes
- Suitable for suspended mounting: No
- Suitable for built-in mounting: No
- Suitable for workplace according to EN 12464-1: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: Yes
- Colour rendering index CRI: 80-89
- Material cover: Plastic, opal
- Covering of the luminaire with thermally insulating material possible: No
- Housing colour: White
- Housing material: Steel
- With control gear: Yes
- Light distribution: Symmetric
- Colour of light: White
- Light outlet: Direct
- Suitable for light line configuration: No
- With air slots: No
- Nominal voltage: 220-240 V
- Impact strength: IK07
- Voltage type: AC
- Type of control gear: LED operating device current-controlled
- Beam angle: > 80° - Extreme wide beam
- Dimming phase cut-off (trailing edge): No
- Operation by Bluetooth: No
- Number of poles: 5
- Dimming with push-button: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Power factor: 0.9
- Dimming phase cut-on (leading edge): No
- Colour consistency (McAdam ellipse): SDCM5
- Conductor cross section: 2.5 mm²
- Luminaire efficacy: 140 lm/W
- Rated lifetime L70/B50 at 25 °C: 120000 h
- Dimming Touch and Dim: No
- Surface protection housing: Lacquered
- Beam angle adjustable: No
- Colour of light adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Constant light output (CLO): No
- Luminous flux adjustable: Positions
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 45
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 32
- IFTTT support available: No
- Exchangeable control gear: Yes
- Energy efficiency class of the light source according to EU regulation 2019/2015: C
- Compatible with Casambi: No
- Connection type: Push-in clamp
- Luminous intensity: 1336 cd
- REACH Date: 2023-02-17
- Dimming LineSwitch: No
- Dimming Sine Wave Reduction: No
- REACH Information obligation: No
- Emergency power supply integrated: No
