Hide-a-lite

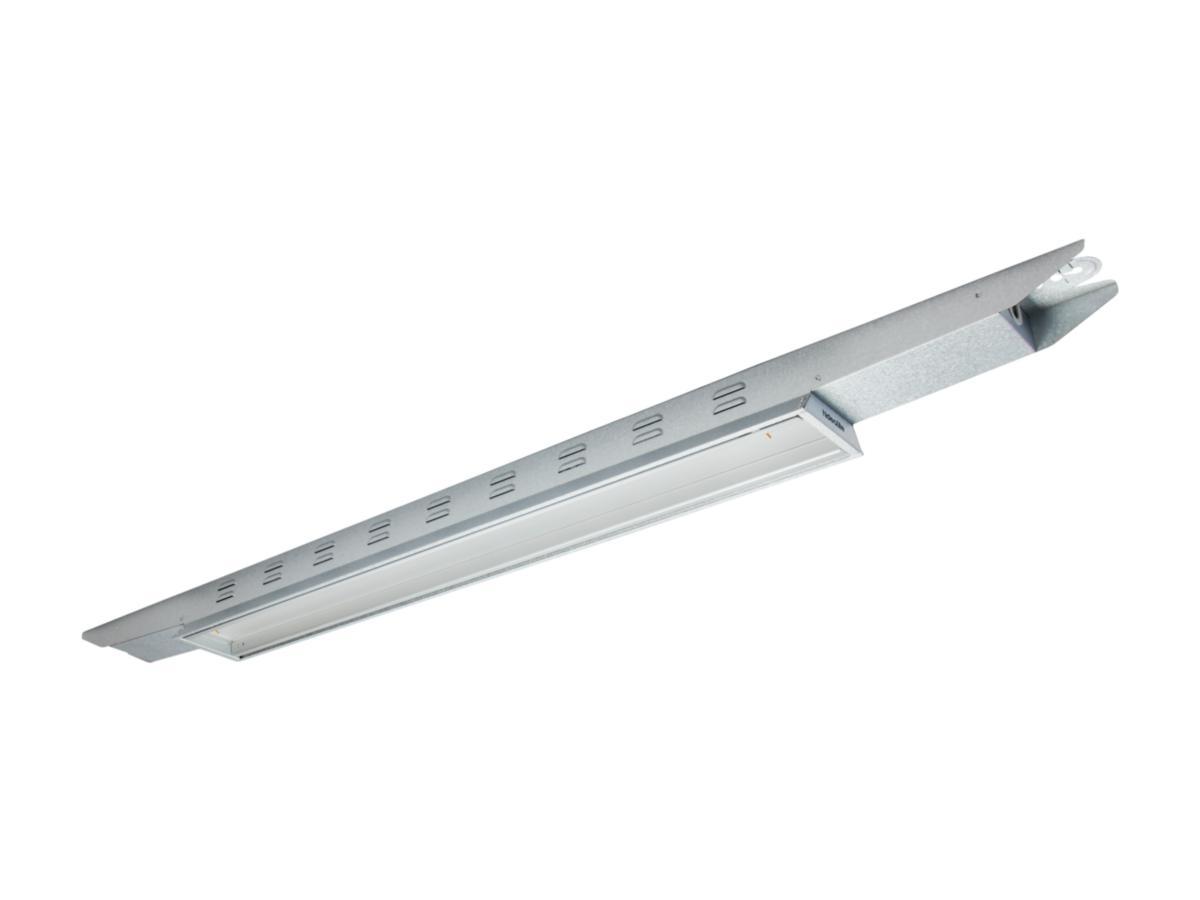

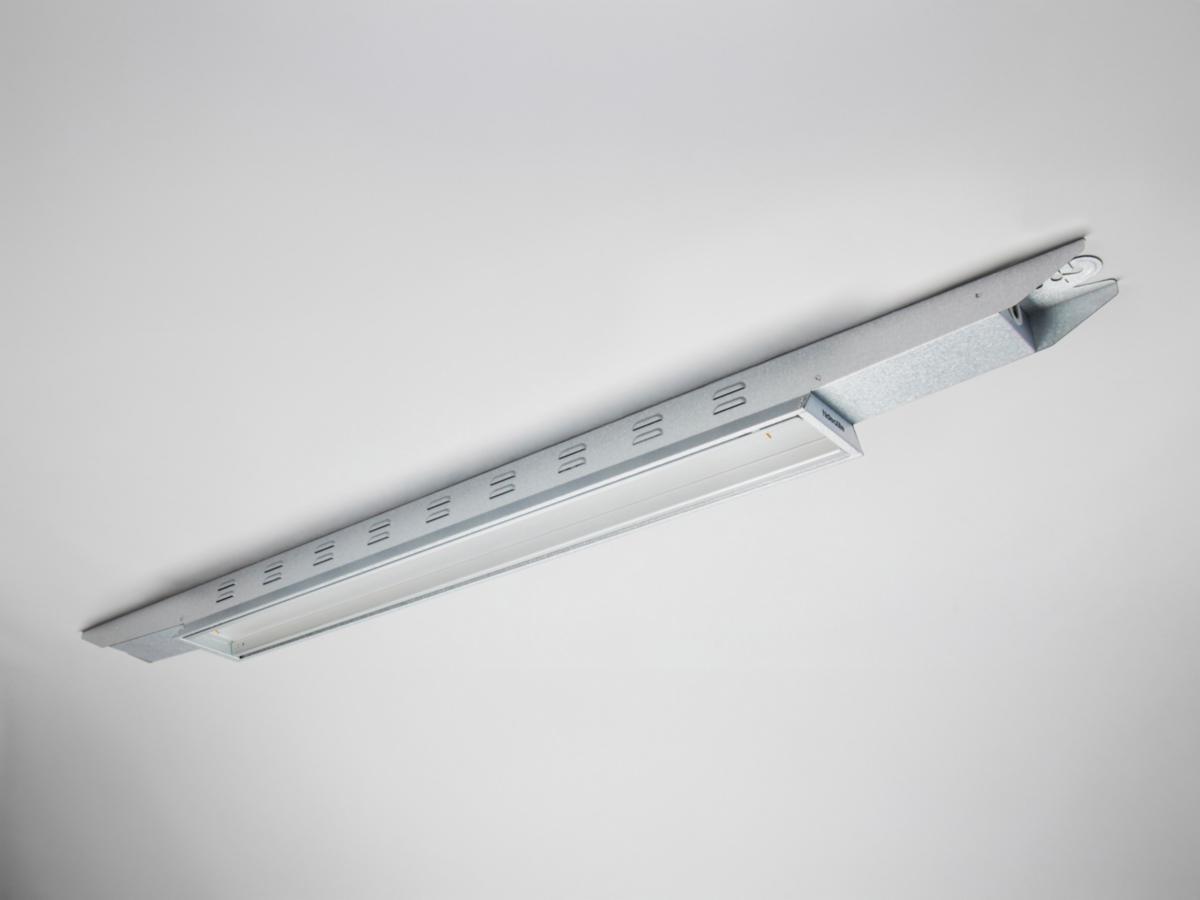

Industrial luminaire Indline Basic IP23
Indline Basic IP23 M 85°
Article number: Suppl. article no:
7219285
5528
to see price and stock

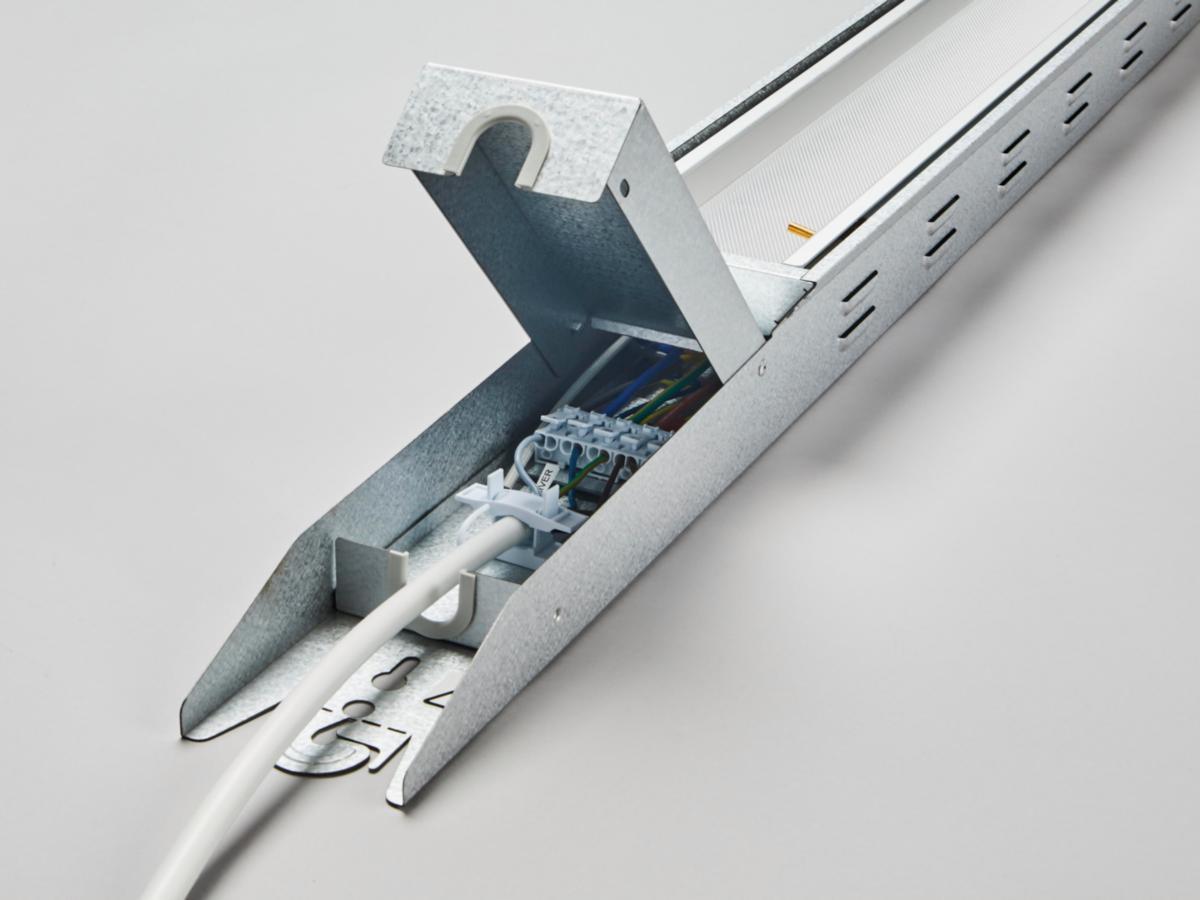

Indline Basic is a basic industrial luminaire – a cost-effective solution for replacing old T5 and T8 fluorescent tube systems. Available in two sizes, M and L, and a choice between On/Off and DALI. The well-thought-out design allows for the replacement of both LED and driver, which simplifies maintenance. On/Off can be adjusted to lower luminous flux and power via DIP-Switch Power. With microprismatic glare protection, it provides an even and good luminous flux. The luminaire is supplied with openable end caps.
- Article number: 7219285
- Suppl. article no: 5528
- Ean no: 7392971150680
- Material class QT1900
- This is an alternative to item 7216637 7216638
Technical data
- Packagin Size: 1 PCS/2 PCS
- Max. system power: 62 W
- Colour temperature: 4000 K
- Length: 1374 mm
- Width: 102 mm
- Height/depth: 73 mm
- Beam angle: > 80° - Extreme wide beam
- Light distribution: Symmetric
- Type of control gear: LED operating device current-controlled
- Colour of light: White
- Degree of protection (IP): IP23
- Lamp type: LED exchangeable
- With light source: Yes
- With control gear: Yes
- Protection class according to IEC 61140: I
- Housing colour: Aluminium
- Impact strength: IK03
- Suitable for number of light sources: 1
- Number of poles: 5
- Power factor: 0.92
- Colour rendering index CRI: 80-89
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Dimmable: No
- Housing material: Steel
- Conductor cross section: 2.5 mm²
- Light distributor: Diffuser lens/optic/panel
- Nominal voltage: 220-240 V
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Rated ambient temperature according to IEC 62722-2-1: -25-40 °C
- Voltage type: AC
- Type of wiring: Suitable for loop-through wiring
- Colour consistency (McAdam ellipse): SDCM3
- Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq): 70 %
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 89 %
- Total harmonic distortion (THD): 10 %
- Beam angle adjustable: No
- Luminous flux adjustable: Positions
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 25
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 25
- Exchangeable control gear: Yes
- Nominal current: 200-350 mA
- Connection type: Push-in clamp
- Connectable conductor cross section: 0.5-2.5 mm²
- Suitable for suspended mounting: Yes
- Suitable for ceiling mounting: Yes
- With movement sensor: No
- Containing product according to 2019/2020/EU: Yes
- REACH Date: 2025-06-16
- GWP-tot (A1-A3): 28,8000 kgCO2e/ST
- REACH Information obligation: No
