AhlsellProductsElectricLighting 70-8372 Industrial luminairesHigh-Bay luminaires and accessoriesHigh-Bay luminaires
Siteco
Highbay 31
HIGHBAY 31 L 26K DALI 90
Article number: Suppl. article no:
7220861
51HC427A4MMC
to see price and stock

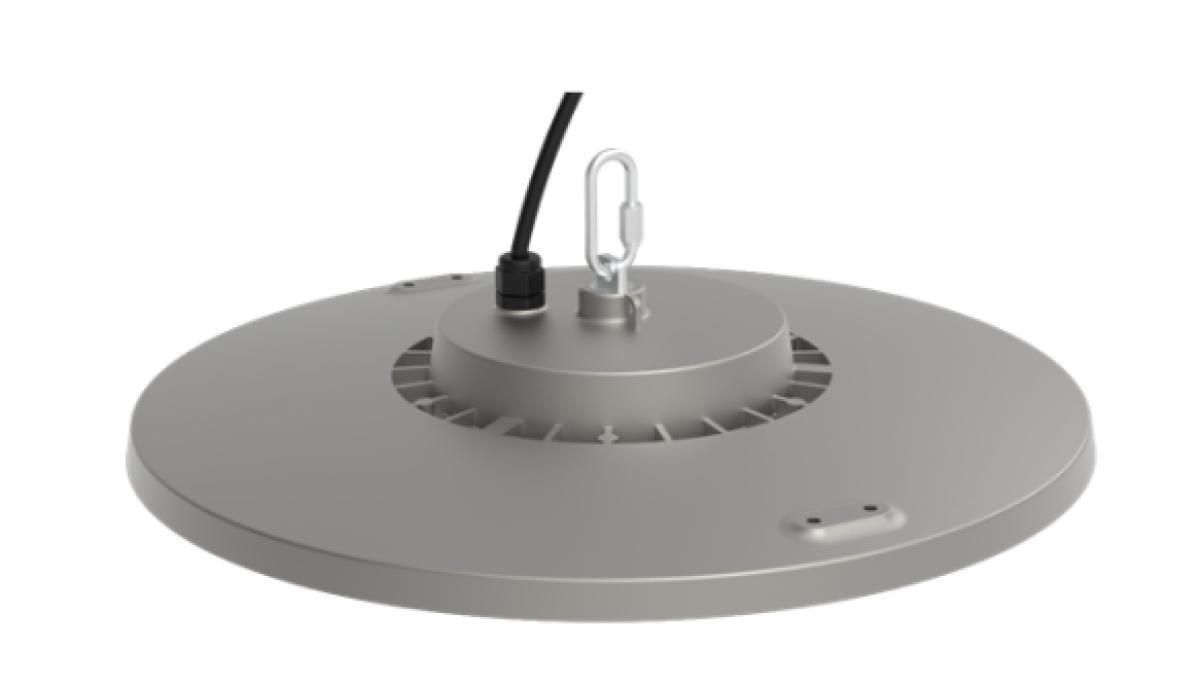

High-height luminaire with luminaire housing made of die-cast aluminium. Incl. attachment loop with lockable carabiner.
- Article number: 7220861
- Suppl. article no: 51HC427A4MMC
- Ean no: 4069025251183
- Material class QT1790
- This is an alternative to item 7218968
Technical data
- Design: 90°
- Max. system power: 187 W
- Rated luminous flux according to IEC 62722-2- 1: 28000 lm
- Colour temperature: 4000 K
- Housing colour: Grey
- Dimming DALI: No
- Dimming DALI-2: No
- Beam angle: > 80° - Extreme wide beam
- Light distribution: Symmetric
- Height/depth: 74 mm
- Outer diameter: 404 mm
- Housing material: Aluminium
- Degree of protection (IP): IP65
- Impact strength: IK08
- With light source: Yes
- Type of control gear: Electronic ballast
- With control gear: Yes
- Nominal voltage: 220-240 V
- Voltage type: AC/DC
- Number of poles: 3
- Dimming phase cut-off (trailing edge): No
- Ball-proof according to DIN 18032-3: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: Yes
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Dimming phase cut-on (leading edge): No
- Colour rendering index CRI: 80-89
- Dimmable: No
- Conductor cross section: 1 mm²
- Colour of light: White
- Light distributor: Diffuser lens/optic/panel
- Lamp type: LED exchangeable
- Suitable for auxiliary lamp: No
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Rated ambient temperature according to IEC 62722-2-1: -30-45 °C
- Reflector: None
- Dimming Touch and Dim: No
- Colour consistency (McAdam ellipse): SDCM4
- Luminaire efficacy: 150 lm/W
- Beam angle adjustable: No
- Colour of light adjustable: No
- Constant light output (CLO): No
- Luminous flux adjustable: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 4
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 7
- Exchangeable control gear: Yes
- Operation by Bluetooth: No
- Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C): Yes
- Connection type: Other
- Connectable conductor cross section: 1 mm²
- Suitable for suspended mounting: Yes
- Suitable for ceiling mounting: Yes
- Suitable for wall mounting: No
- With movement sensor: No
- Emergency function monitoring system: None
- With light sensor: No
- With presence detector: No
- REACH Date: 2025-06-04
- REACH Information obligation: No
