Tupex

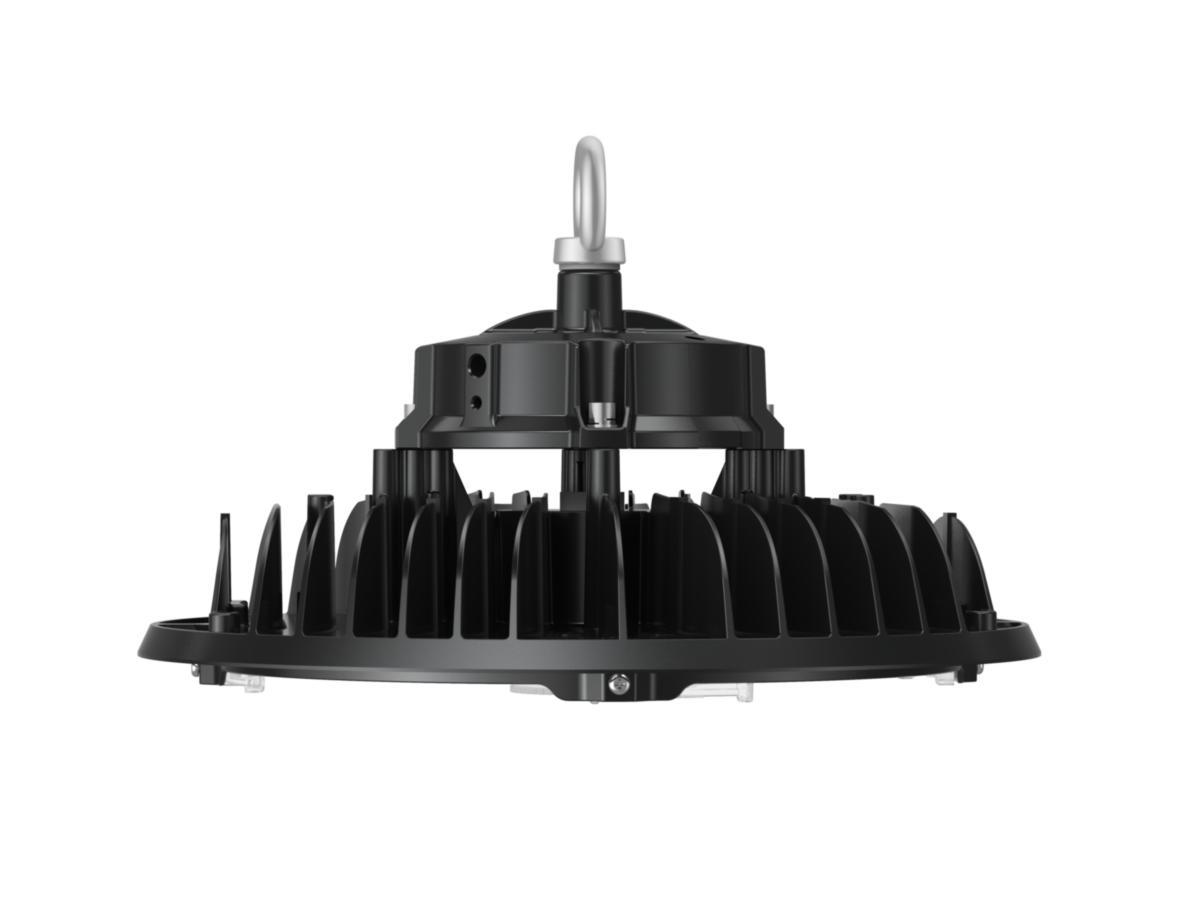

Highbay luminaire Alto
LUM ALTO DALI 120-200W 840
Article number: Suppl. article no:
7220663
264157-4
to see price and stock
ALTO LED Adjustable power/lumen via Dip switch (100%,75%,50%) 120W-160W-200W 1920/25600/32000LM 295*187mm 4000k. 0-10V dimmable with built-in Dip-switch to adjust the power of 120W, 160W and 200W, as well as adjustable scattering angle, 65° 85° 100°
- Article number: 7220663
- Suppl. article no: 264157-4
- Material class QT1830
Technical data
- Max. system power: 200 W
- Rated luminous flux according to IEC 62722-2- 1: 32000 lm
- Colour temperature: 4000 K
- Dimming DALI: Yes
- Beam angle: > 80° - Extreme wide beam
- Housing colour: Black
- Housing material: Aluminium
- Height/depth: 166 mm
- Lamp type: LED not exchangeable
- Nominal voltage: 220-240 V
- Impact strength: IK09
- Type of control gear: LED operating device current-controlled
- With control gear: Yes
- Colour rendering index CRI: 80-89
- Light distribution: Symmetric
- Colour of light: White
- Light distributor: Refractor lens
- Luminaire efficacy: 160 lm/W
- Suitable for suspended mounting: Yes
- With light source: Yes
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Rated ambient temperature according to IEC 62722-2-1: -20-45 °C
- Suitable for ceiling mounting: Yes
- Voltage type: AC/DC
- Outer diameter: 295 mm
- Colour consistency (McAdam ellipse): SDCM3
- Beam angle adjustable: Positions
- Colour of light adjustable: No
- Luminous flux adjustable: Continuously variable
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 9
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 10
- Exchangeable control gear: Yes
- Suitable for wall mounting: Yes
- Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C): Yes
- REACH Date: 2025-06-03
- REACH Information obligation: No
