Siteco

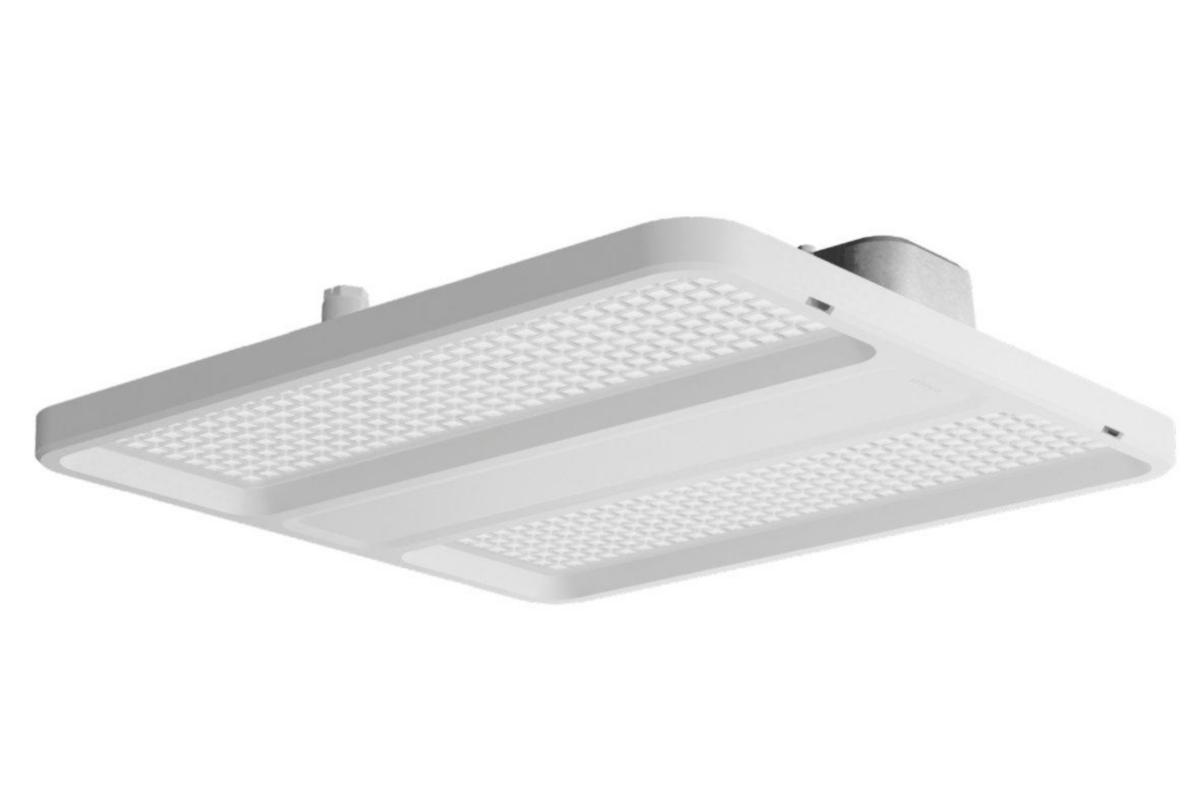

Industrial luminaire HB11
IND ARM HB11 MD WB 4K 28000LM
Article number: Suppl. article no:
7220533
51HN12DA4MDA
to see price and stock
The Highbay family stands out with its high efficiency and durability. With manufacturing in Europe (Traunreut) and minimal material consumption and modular design, it is an obvious choice for the environmentally conscious. With its light weight of 4 or 8 kg, it is easy to handle and delivers maximum quality light from a luminaire with the most modern technology. Delivers outstanding light from 6 to 30m in ceiling height with a temperature range from -40 to +65 or +70 degrees. See variants with double module for higher luminous fluxes. And see Highbay 21 for price-sensitive projects with lower requirements. Mounting accessories are required, ordered separately.
NB = Narrow beam
WB = Wide beam
NB = Narrow beam
WB = Wide beam
- Article number: 7220533
- Suppl. article no: 51HN12DA4MDA
- Ean no: 4069025230584
- Material class QT1790
Technical data
- Design: WB, Single
- Max. system power: 147 W
- Rated luminous flux according to IEC 62722-2- 1: 28000 lm
- Colour temperature: 4000 K
- Housing colour: White
- Length: 72 mm
- Width: 474 mm
- Dimming DALI: No
- Dimming DALI-2: Yes
- Light distribution: Symmetric
- Height/depth: 442 mm
- Housing material: Plastic
- Degree of protection (IP): IP66
- With light source: Yes
- Type of control gear: Electronic ballast
- With control gear: Yes
- Nominal voltage: 230-240 V
- Voltage type: AC
- Number of poles: 5
- Dimming phase cut-off (trailing edge): No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: Yes
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming manufacturer's proprietary system: No
- Dimming phase cut-on (leading edge): No
- Colour rendering index CRI: 80-89
- Dimmable: No
- Lamp holder: None
- Conductor cross section: 2.5 mm²
- Colour of light: White
- Light distributor: Diffuser lens/optic/panel
- Lamp type: LED exchangeable
- Rated ambient temperature according to IEC 62722-2-1: -40-50 °C
- Reflector: None
- Dimming Touch and Dim: No
- Type of wiring: Ending
- Colour consistency (McAdam ellipse): SDCM3
- Luminaire efficacy: 190 lm/W
- Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq): 90 %
- Failure rate at median useful life of 100,000 h at 25 °C ambient (tq): 50 %
- Beam angle adjustable: No
- Colour of light adjustable: No
- Constant light output (CLO): No
- Luminous flux adjustable: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 20
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 33
- Exchangeable control gear: Yes
- Operation by Bluetooth: No
- Energy efficiency class of the light source according to EU regulation 2019/2015: B
- Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C): Yes
- Connection type: Other
- Connectable conductor cross section: 2.5 mm²
- Suitable for suspended mounting: Yes
- Suitable for ceiling mounting: Yes
- Suitable for wall mounting: Yes
- With movement sensor: No
- Emergency power supply system: None
- Emergency function monitoring system: None
- With light sensor: No
- With presence detector: No
- REACH Date: 2025-01-16
- REACH Information obligation: No
