Designlight

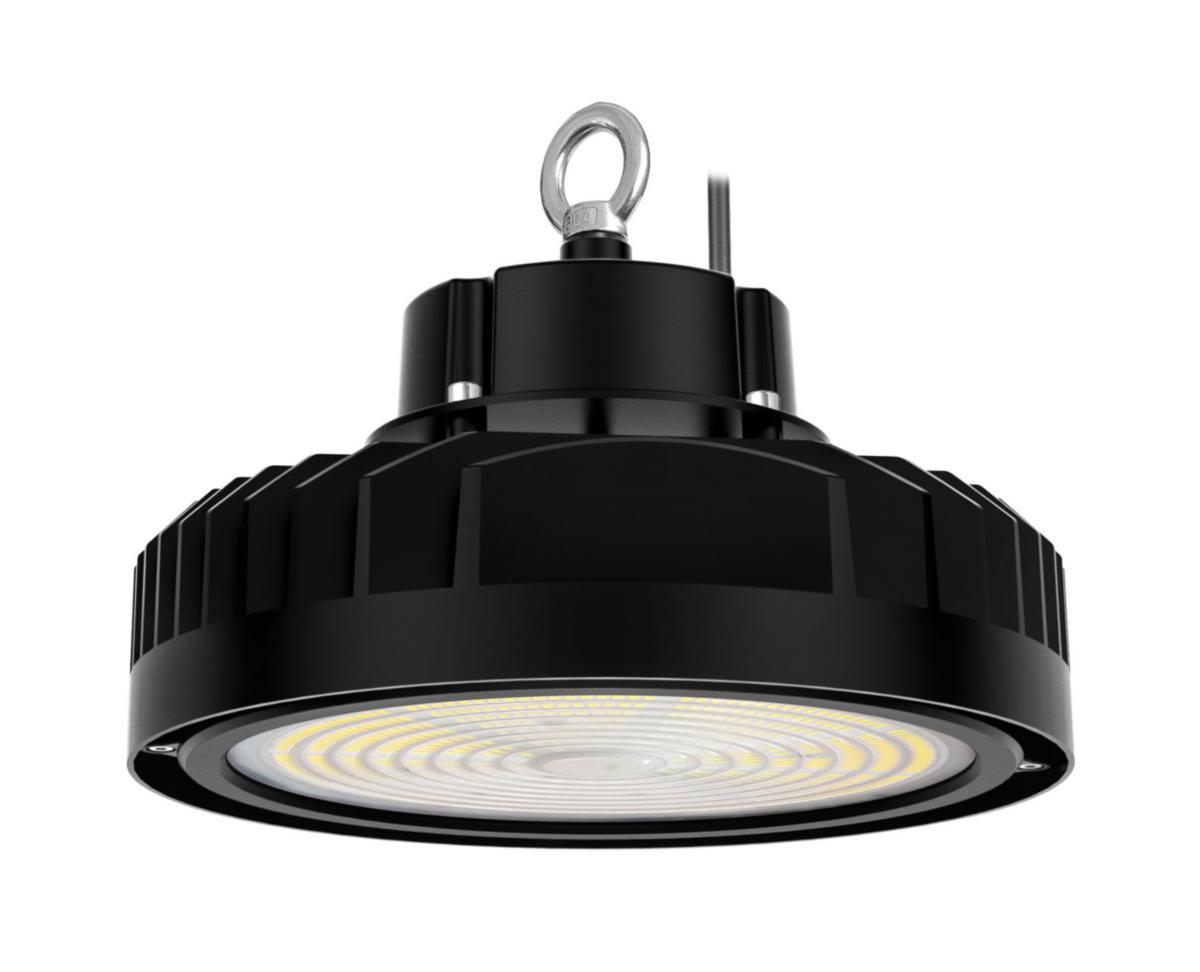

High-height luminaire Highbay HB
HighBay 100W 4000K 15137lm
Article number: Suppl. article no:
7217695
HB-100W
to see price and stock
Spotlight High Bay. 120° dispersion angle, IP65. Impact resistance IK08. Cast aluminum housing with Akzo Nobel powder coating and large heatsink for more efficient cooling of diodes.
- Article number: 7217695
- Suppl. article no: HB-100W
- Ean no: 7340132804262
- Replaces art.nbr: 7215254
- Material class QT1700
- This is an alternative to item 7215254
Technical data
- Packagin Size: 1 PCS/2 PCS/36 PCS
- Energy label: C
- Max. system power: 100 W
- Rated luminous flux according to IEC 62722-2- 1: 15137 lm
- Colour temperature: 4000 K
- Dimming DALI: No
- Dimming DALI-2: No
- Housing colour: Black
- Beam angle: > 80° - Extreme wide beam
- Colour rendering index CRI: 80-89
- With light source: Yes
- Length: 257 mm
- Width: 257 mm
- Height/depth: 153 mm
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 3
- Dimming phase cut-off (trailing edge): No
- Surface brushed: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: Yes
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 1-10 V: Yes
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Type of control gear: LED operating device current-controlled
- With control gear: Yes
- Dimming phase cut-on (leading edge): No
- Dimmable: Yes
- Adjustability: Not adjustable
- Degree of protection (IP): IP65
- Lamp holder: None
- Colour of light: White
- Light distributor: Other
- Light distribution: Symmetric
- Lamp type: LED exchangeable
- Light outlet: Direct
- Suitable for built-in mounting: No
- Suitable for clamp-mounting: No
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: Yes
- Suitable for light-track mounting: No
- Suitable for ceiling mounting: Yes
- Suitable for traverse mounting: No
- Suitable for wall mounting: Yes
- Suitable for surface mounting: Yes
- Housing material: Aluminium
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 220-240 V
- Rated lifetime L70/B50 at 25 °C: 169000 h
- Rated ambient temperature according to IEC 62722-2-1: -20-50 °C
- Reflector: None
- Impact strength: IK08
- Voltage type: AC
- Dimming Touch and Dim: No
- Type of wiring: Ending
- Surface protection: Powder coating
- Outer diameter: 257 mm
- Covering of the luminaire with thermally insulating material possible: No
- Beam angle adjustable: No
- Colour of light adjustable: No
- Constant light output (CLO): No
- Luminous flux adjustable: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 4
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 7
- Exchangeable control gear: Yes
- Energy efficiency class of the light source according to EU regulation 2019/2015: C
- GWP-tot (A1-A3): 64,9844 kgCO2e/ST
- REACH Date: 2022-11-30
- REACH Information obligation: No
- Emergency power supply integrated: No
