Industrial luminaire XC-LIFEx-ME, EX-classed - LED XC-LIFEx Ex 1/21 8375lm
https://www.youtube.com/watch?v=/external-assets/JPEGlarge800_800/48/71/ProductImage74114871.jpg
https://www.youtube.com/watch?v=/external-assets/JPEGlarge800_800/48/73/ProductImage74114873.jpg
Toleka

Industrial luminaire XC-LIFEx-ME, EX-classed

LED XC-LIFEx Ex 1/21 8375lm
Article number:
7219339
Suppl. article no:
XC-LIFEx-ME-1260AAT





 to see price and stock

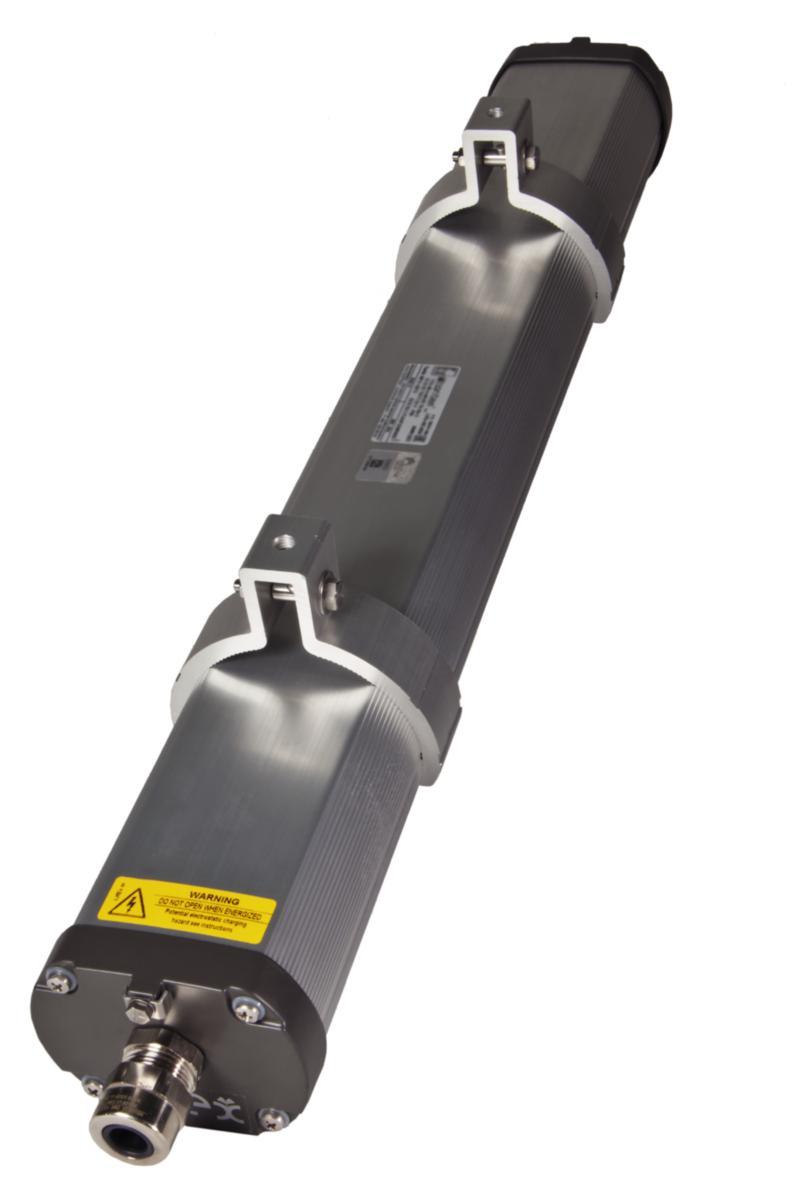

The XC-LIFEx-ME is a robust, compact, impact resistant and lightweight luminaire designed to suit most applications for zone 1, 2, 21 & 22. With its flexible brackets it can easily be installed and replace existing luminaires. With the included bracket, the luminaire can be adjusted from -30° to +30°. XC-LIFEx has been designed and certified according to the installation zone and in addition to passing all the tests required by the regulations, it has passed additional mechanical and electrical tests such as vibration tests, IP66, surge tests and more. XC-LIFEx is available in lengths from 30 up to 150 cm and from 15 to 120 W. Can also be obtained as a pass-through bar. Housing: Aluminum alloy with low copper content. Lens: Impact and temperature resistant tempered glass sealed with aluminum ring. Gasket: Acid, hydrocarbon and silicone with high temperature resistance. Bracket: Stainless steel 316L. Dimmable on request.
  • Article number:
    7219339
  • Suppl. article no:
    XC-LIFEx-ME-1260AAT
  • Material class
    QT1930
Technical data
  • Type: XC-LIFEX-ME-1260AAT
  • Max. system power: 60 W
  • Rated luminous flux according to IEC 62722-2- 1: 8316 lm
  • Colour temperature: 5000 K
  • For Ex-zone dust: 21, 22
  • For Ex-zone gas: 1, 2
  • Housing material: Aluminium
  • Material cover: Glass matt/satinized
  • Lamp holder: None
  • Light distributor: None
  • Lamp type: LED not exchangeable
  • Beam angle: > 80° - Extreme wide beam
  • Width: 105 mm
  • Length: 1200 mm
  • Height/depth: 120 mm
  • Degree of protection (IP): IP66
  • Mounting method: Wall-/ceiling mounting
  • Impact strength: IK09
  • Nominal voltage: 220-240 V
  • Voltage type: AC
  • Type of wiring: Loop-through wiring included
  • With light source: Yes
  • Rated ambient temperature according to IEC 62722-2-1: -60-60 °C
  • With control gear: Yes
  • Power factor: 0.96
  • Adjustable: Yes
  • Exchangeable control gear: Yes
  • Luminaire efficacy: 149 lm/W
  • Nominal current: 250 mA
  • REACH Date: 2023-12-07
  • REACH Information obligation: No
