Charging box Dawn Professional
Dawn Professional
Article number: Suppl. article no:
2701268
131741
to see price and stock

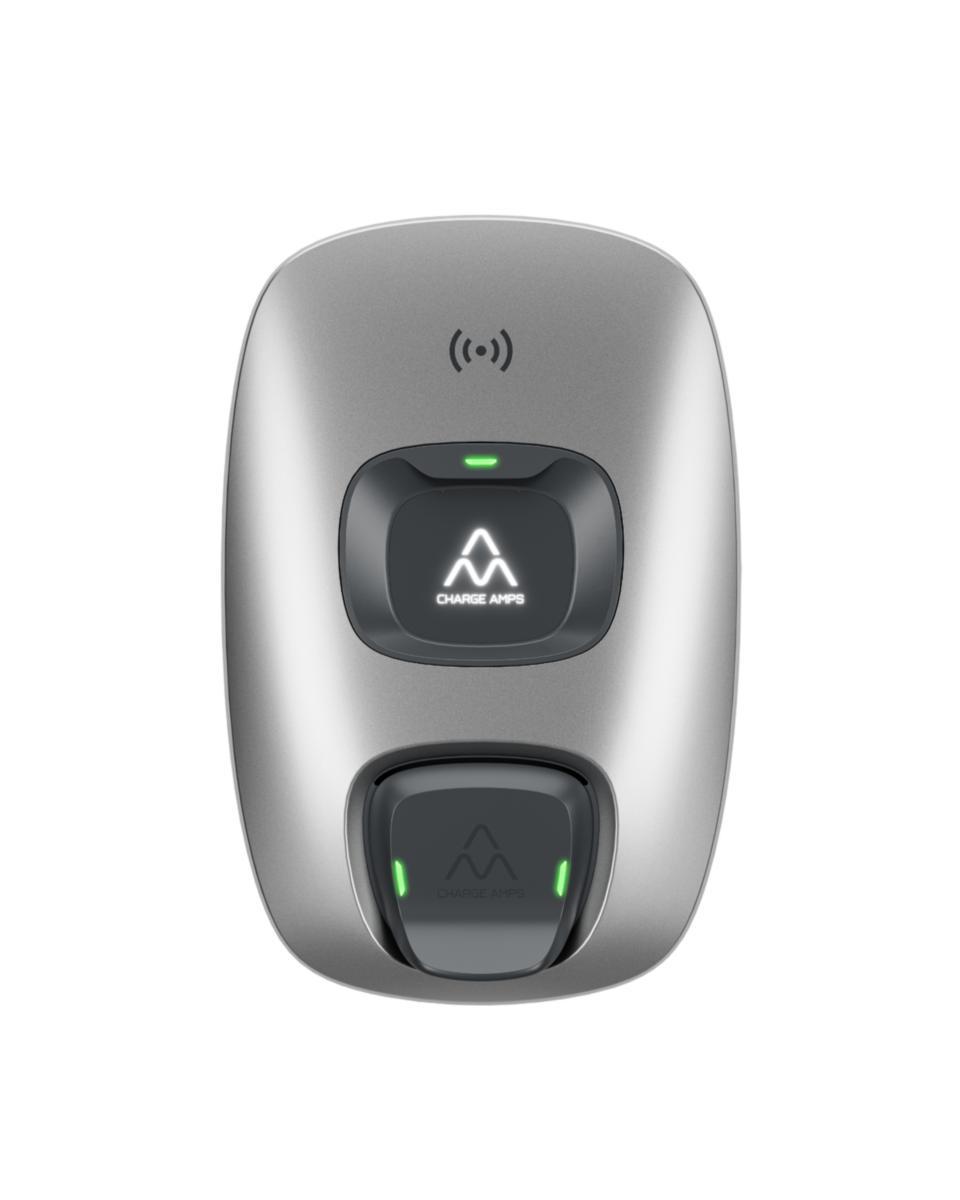

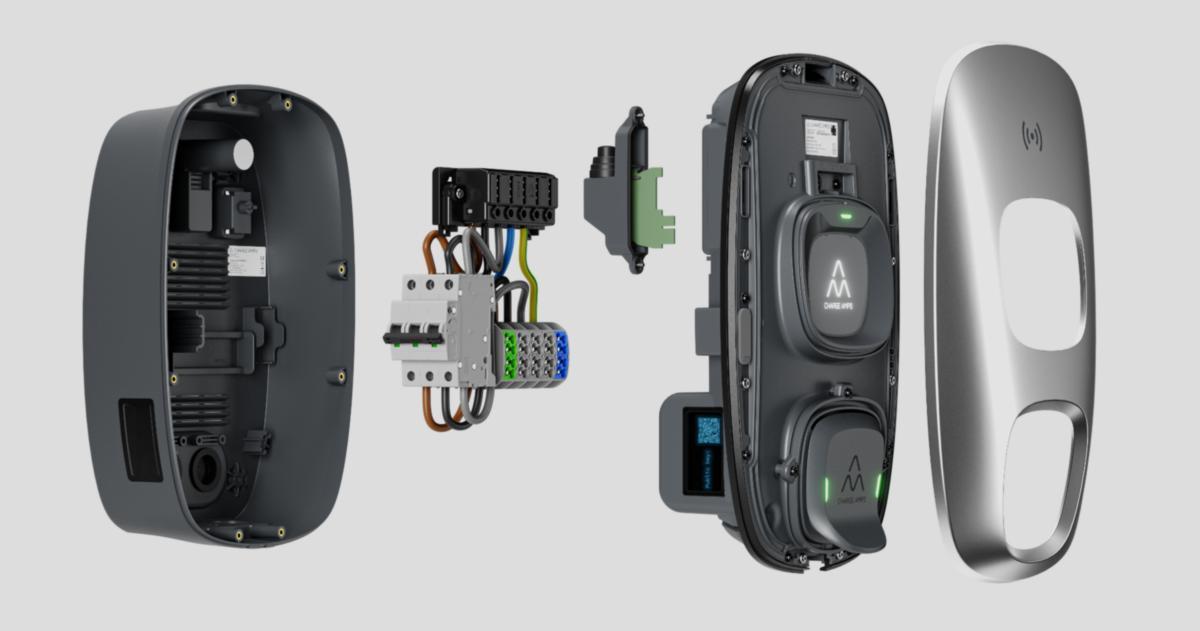

Charge Amps Dawn Professional is a 22kW AC charger with Type 2 socket, MID certified electricity meter and built-in RCD type B. Prepared for Daisy Chaining with MCB and terminal block.
The charging box can be connected with Wifi, LAN or 4G LTE-M (built-in SIM) to Charge Amps Cloud. Together with Charge Amps Amp Guard or Enegic, dynamic load balancing is enabled.
The charging box can connect to an external CPMS (Charge Point Management System) via API to Charge Amps Cloud to utilize Charge Amps load balancing or directly via OCPP to any OCPP compatible CPMS. When connecting directly to a CPMS other than Charge Amps Cloud, this external CPMS needs to offer dynamic load balancing.
Always register the product via Charge Amps Partner Portal, create an account for Charge Amps Partner Portal before starting the configuration: https://my.charge.space/partner
Configuration of Charge Amps Dawn can be done via smartphone, tablet or computer.
Charge Amps Dawn can be installed via the Charge Amps Installer App (Andriod or Iphone).
The charging box can be connected with Wifi, LAN or 4G LTE-M (built-in SIM) to Charge Amps Cloud. Together with Charge Amps Amp Guard or Enegic, dynamic load balancing is enabled.
The charging box can connect to an external CPMS (Charge Point Management System) via API to Charge Amps Cloud to utilize Charge Amps load balancing or directly via OCPP to any OCPP compatible CPMS. When connecting directly to a CPMS other than Charge Amps Cloud, this external CPMS needs to offer dynamic load balancing.
Always register the product via Charge Amps Partner Portal, create an account for Charge Amps Partner Portal before starting the configuration: https://my.charge.space/partner
Configuration of Charge Amps Dawn can be done via smartphone, tablet or computer.
Charge Amps Dawn can be installed via the Charge Amps Installer App (Andriod or Iphone).
- Article number: 2701268
- Suppl. article no: 131741
- Ean no: 7350084191976
- Material class QJ7280
- This is an alternative to item 2700835
Technical data
- Max. power per charging point: 22 kW
- Number of socket outlets Type 2: 1
- With built-in RFID card reader: Yes
- With energy meter: Yes
- Number of charging units: 1
- Number of earth leakage circuit breakers type B: 1
- Width: 250 mm
- Depth: 145 mm
- Height: 380 mm
- Housing material: Plastic
- Degree of protection (IP): IP54
- Impact strength: IK10
- With miniature circuit breaker (MCB): Yes
- With display: No
- Installation side connection model: 3-phase
- DC residual current detection: Yes
- Operation and configuration by app: Yes
- Frequency: 50 Hz
- Input voltage: 230-400 V
- Charging cable permanently lockable at charging device: Yes
- Suitable for dynamic load management: Yes
- With MID compliant energy meter: Yes
- Networkable via LAN: Yes
- Networkable via Wi-Fi: Yes
- OpenChargePointProtocoll (OCPP) version: 1.6
- Plug and charge (ISO 15118): Yes
- Suitable for wall mounting: Yes
- Voltage type (supply voltage): AC
- Portable: No
- Mobile communication standard 4G (LTE): Yes
- REACH Date: 2023-01-26
- REACH Information obligation: No
