DEFA e-mobility
Charging box DEFA Power S

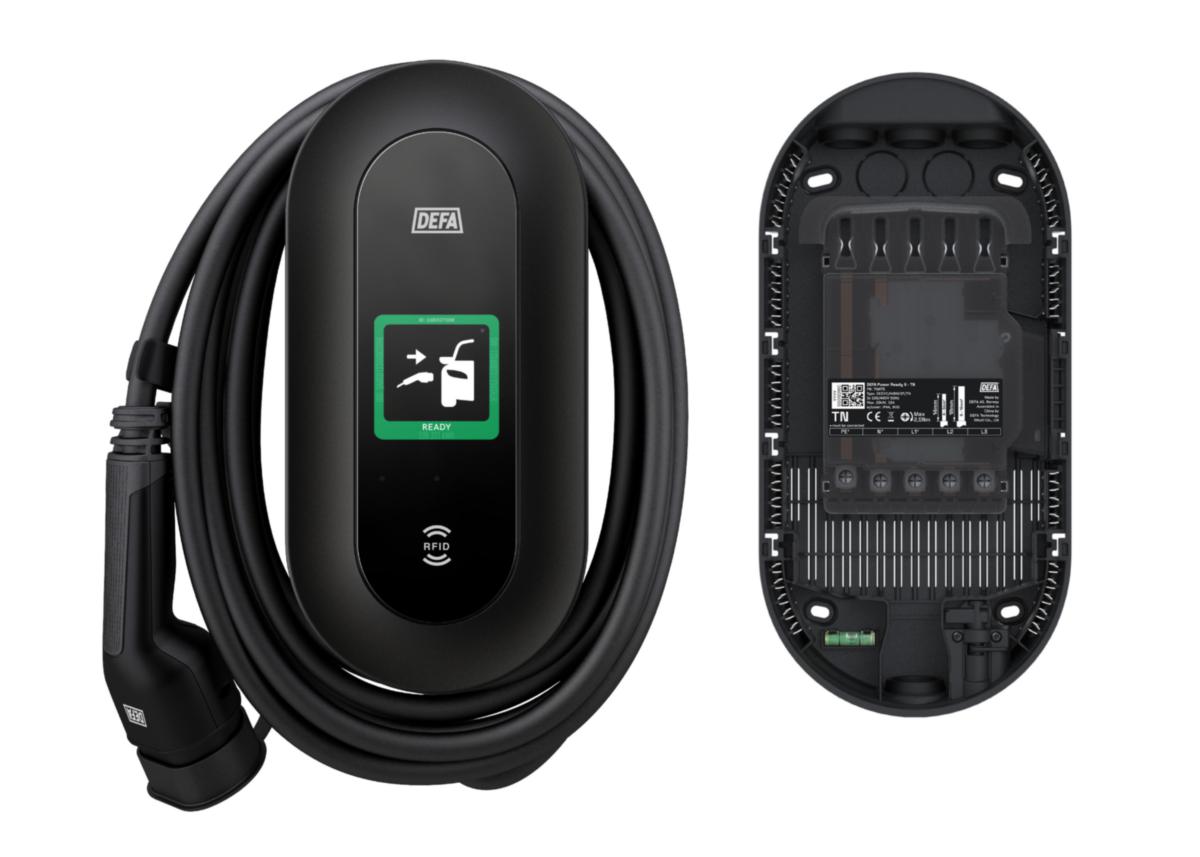

DEFA Power S
Article number: Suppl. article no:
2700925
715003
to see price and stock
Smart charging station for system installation with display, integrated cable and circuit breaker integrated in the wall bracket. The ideal solution for system installations, with the new generation of EV chargers. For the EV owner, the DEFA Power S offers the optimal user experience with an integrated charging cable (6m) and an intuitive display. For the installer, installation, setup and expansion are simple, fast and cost-effective. The operator/owner gets a charging system with future-proof and safe technology, which uses open standards OCPP 2.0.1 and ISO 15118, as well as chargers that comply with international regulations.
- Article number: 2700925
- Suppl. article no: 715003
- Ean no: 7042287150033
- Material class QJ7240
Technical data
- Max. power per charging point: 22 kW
- Number of vehicle connectors Type 2: 1
- Length of charging cable: 6 m
- With built-in RFID card reader: Yes
- With energy meter: Yes
- Number of charging units: 1
- Nominal connection power: 22 kW
- Width: 167 mm
- Depth: 128 mm
- Height: 350 mm
- Housing material: Plastic
- Degree of protection (IP): IP55
- Impact strength: IK10
- With miniature circuit breaker (MCB): Yes
- With display: Yes
- Installation side connection model: 3-phase
- Connectable conductor cross section: 1.5-16 mm²
- DC residual current detection: Yes
- Operation and configuration by app: Yes
- Export of charging logs: Yes
- Frequency: 50/60 Hz
- Input voltage: 230-400 V
- Backend included: Yes
- Contactor welding detection: Yes
- Charging cable permanently lockable at charging device: Yes
- With MID compliant energy meter: Yes
- NFC (Near Field Communication): Yes
- Networkable via LAN: Yes
- Networkable via Wi-Fi: Yes
- OpenChargePointProtocoll (OCPP) version: 2.1
- Plug and charge (ISO 15118): Yes
- Mobile communication standard 5G: No
- Static load management integrated: Yes
- Mobile communication standard 4G (LTE): Yes
- REACH Date: 2025-09-08
- REACH Information obligation: No
