Eldon Installation

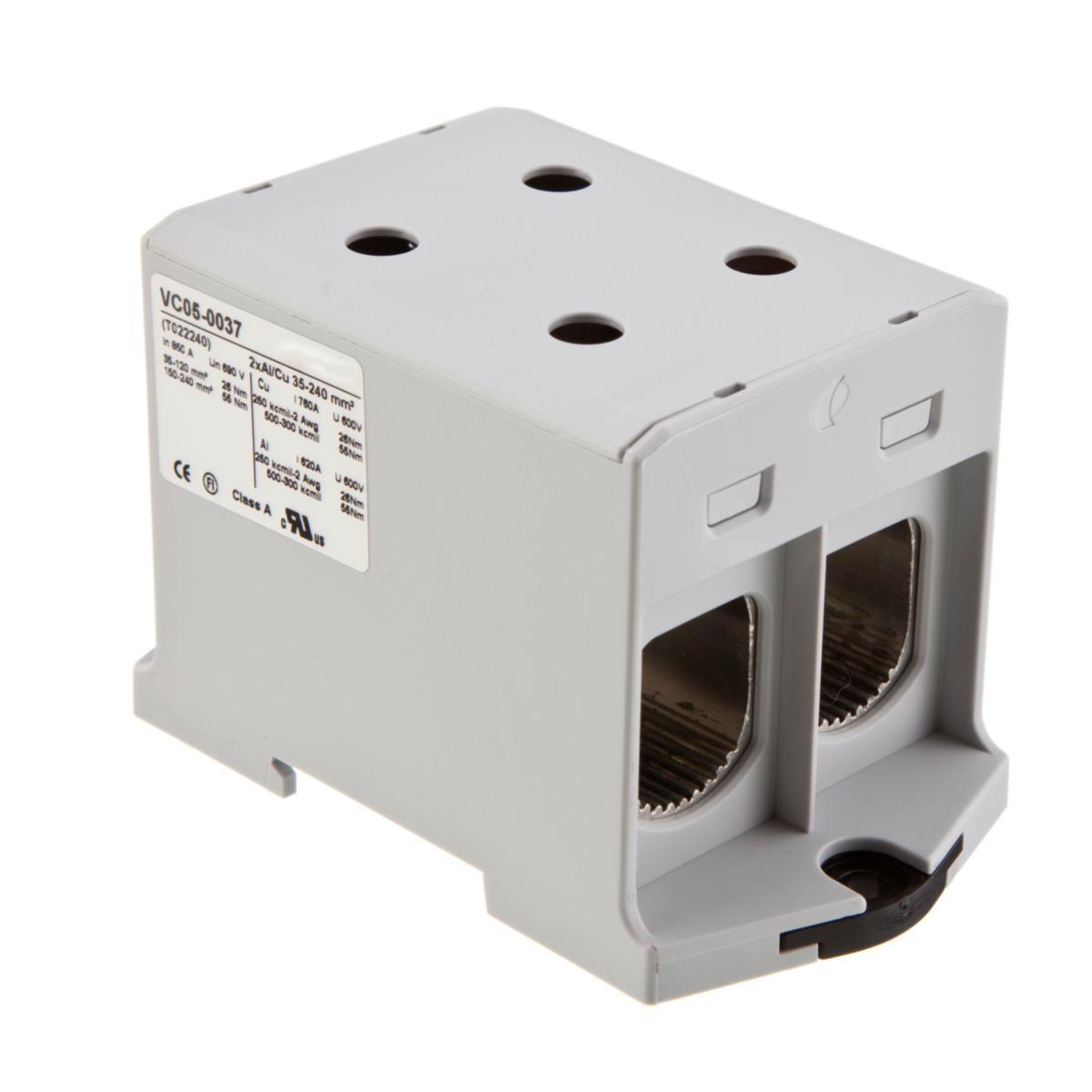

Terminal Al/Cu ET2
Terminal 2x35-240mm² Al/Cu
Article number: Suppl. article no:
2675384
ET22240
to see price and stock
Certified universal clamp/terminal block for Al and/or Cu conductors, Class A, which guarantees safety and compliance with current requirements. Nordic manufacturing. Easy installation and reliable tightening with an Allen key. Compact and stable construction. Tinned aluminum coated with paste against oxidation. Color-coded product range, with grey, red and black for Phase, blue for N and green/yellow for PE. Can be connected with several conductors and without end sleeve. Adapted for solar cells.
- Article number: 2675384
- Suppl. article no: ET22240
- Ean no: 6410019141337
- Material class QM733B
Technical data
- Packagin Size: 1 PCS/12 PCS
- Type: ET22240
- Colour: Grey
- Connectable conductor cross section multi-wired: 35-240 mm²
- Rated current In: 425 A
- Rated voltage: 1000 V
- Connectable conductor cross section solid-core: 35-240 mm²
- Connectable conductor cross section fine-strand with cable end sleeve: 35-240 mm²
- Type of electrical connection 1: Screw connection
- Type of electrical connection 2: Screw connection
- Number of levels: 1
- Number of clamp positions per level: 4
- Mounting method: DIN rail (top hat rail) 35 mm
- Material insulation body: Thermoplastic
- Closing plate required: No
- Connectable conductor cross section fine-strand without cable end sleeve: 35-240 mm²
- Operating temperature: -25-80 °C
- Inflammability class of insulation material according to UL94: V2
- Explosion-tested version 'Ex e': No
- Width: 60 mm
- Depth: 106 mm
- Height: 65 mm
- REACH Date: 2022-11-25
- REACH Information obligation: No
