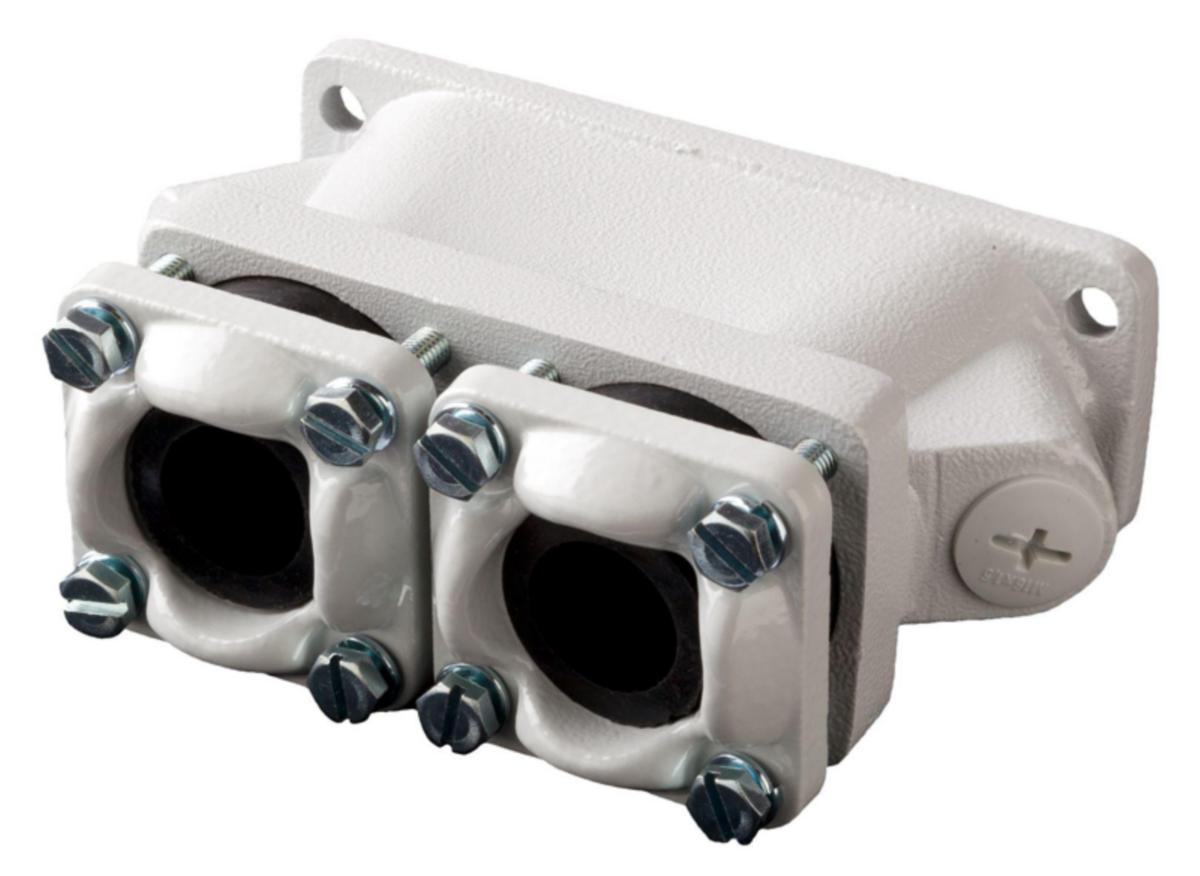

Earth cable flange in alloy FL 13
FLANGE LNPB 1323/24 LNPB 1323/24
Article number: Suppl. article no:
2635010
LNPB 1323/24
to see price and stock
Light metal flanges for connection of plastic ground cable. The flanges are supplied with neoprene gasket, so called onion packing. The sleeves have a powerful pressure washer that provides some strain relief for the cable. All flanges are fitted with 2 threaded holes for cable gland M20 - 2635004 have M16 and drain screw. IP67.
- Article number: 2635010
- Suppl. article no: LNPB 1323/24
- Material class QM750B
Technical data
- Type: LNPB 1323/24
- Design: Light alloy
- Gland plate type according to SEN 280901: FL13
- Flange size: FL 13
- Number of connector holes: 2
- Material: Aluminium
- Suitable for cable diameter: 18.5-32 mm
- Height: 95 mm
- Cable area: 10-70 mm²
- Max gasket size: 32 mm
- Min gasket size: 18.5 mm
- REACH Date: 2021-07-05
- REACH Information obligation: No
