ABB

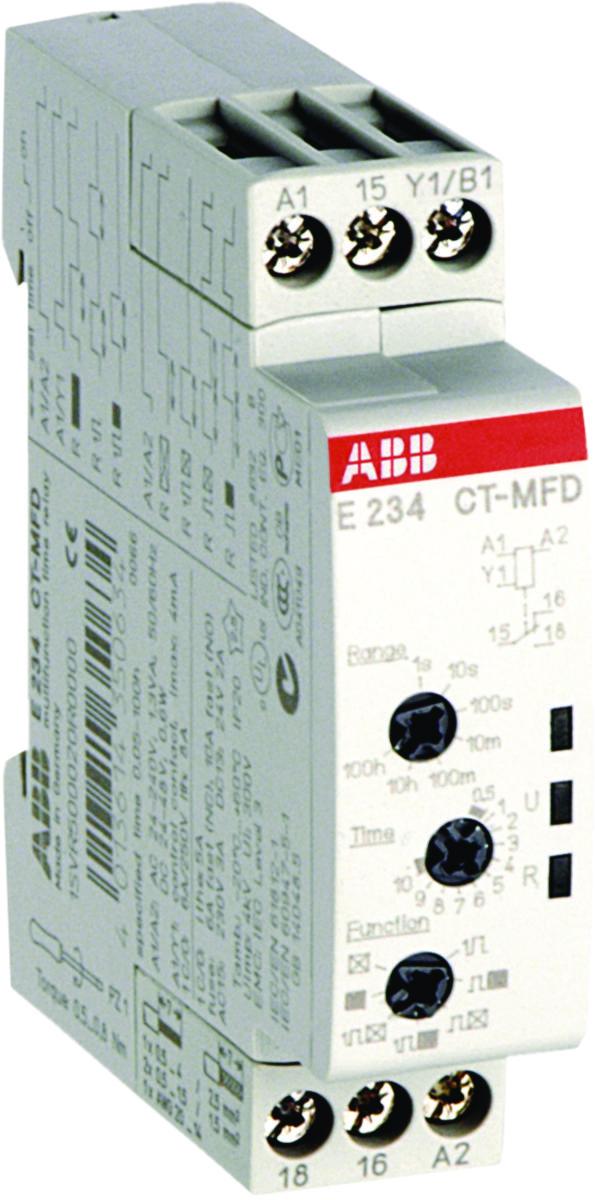

Timer relay CT-S
TIMER RELAY CT-S E234CT-MFD 1SVR5
Article number: Suppl. article no:
4033001
1SVR500020R0000
to see price and stock
Potentiometer time setting possible.
- Article number: 4033001
- Suppl. article no: 1SVR500020R0000
- Ean no: 4013614350634
- Material class QP431B
Technical data
- Rated control supply voltage DC: 24-48 V
- Rated control supply voltage AC 50 Hz: 24-240 V
- Type of electric connection: Screw connection
- Voltage type for actuating: AC/DC
- Time range: 0.05-360000 s
- Rated control supply voltage AC 60 Hz: 24-240 V
- Nominal current: 6 A
- Function delay-on energization: Yes
- Function delay on de-energization: Yes
- Function floating contact on energization: Yes
- Function floating contact on de-energization: Yes
- Function star-delta: No
- Function pulse shaping: Yes
- Function flashing, starting with pause, fixed time: Yes
- Function flashing, starting with pulse, fixed time: Yes
- Clock function, starting with pause, variable: No
- Clock function, starting with pulse, variable: No
- Remote operation possible: No
- Suitable as remote control: No
- Pluggable on auxiliary contact block: No
- Number of outputs, undelayed, normally closed contact: 0
- Number of outputs, undelayed, normally open contact: 0
- Number of outputs, undelayed, change-over contact: 1
- Number of outputs, delayed, normally closed contact: 0
- Number of outputs, delayed, normally open contact: 0
- Number of outputs, delayed, change-over contact: 1
- Outputs, reversible delayed/undelayed: No
- With semiconductor output: No
- Width: 17.5 mm
- Height: 70 mm
- Depth: 63 mm
- Suitable for DIN rail (top hat rail) mounting: Yes
- REACH Date: 2023-01-18
- REACH Information obligation: No
- With plug-in socket: No
