Schneider Electric

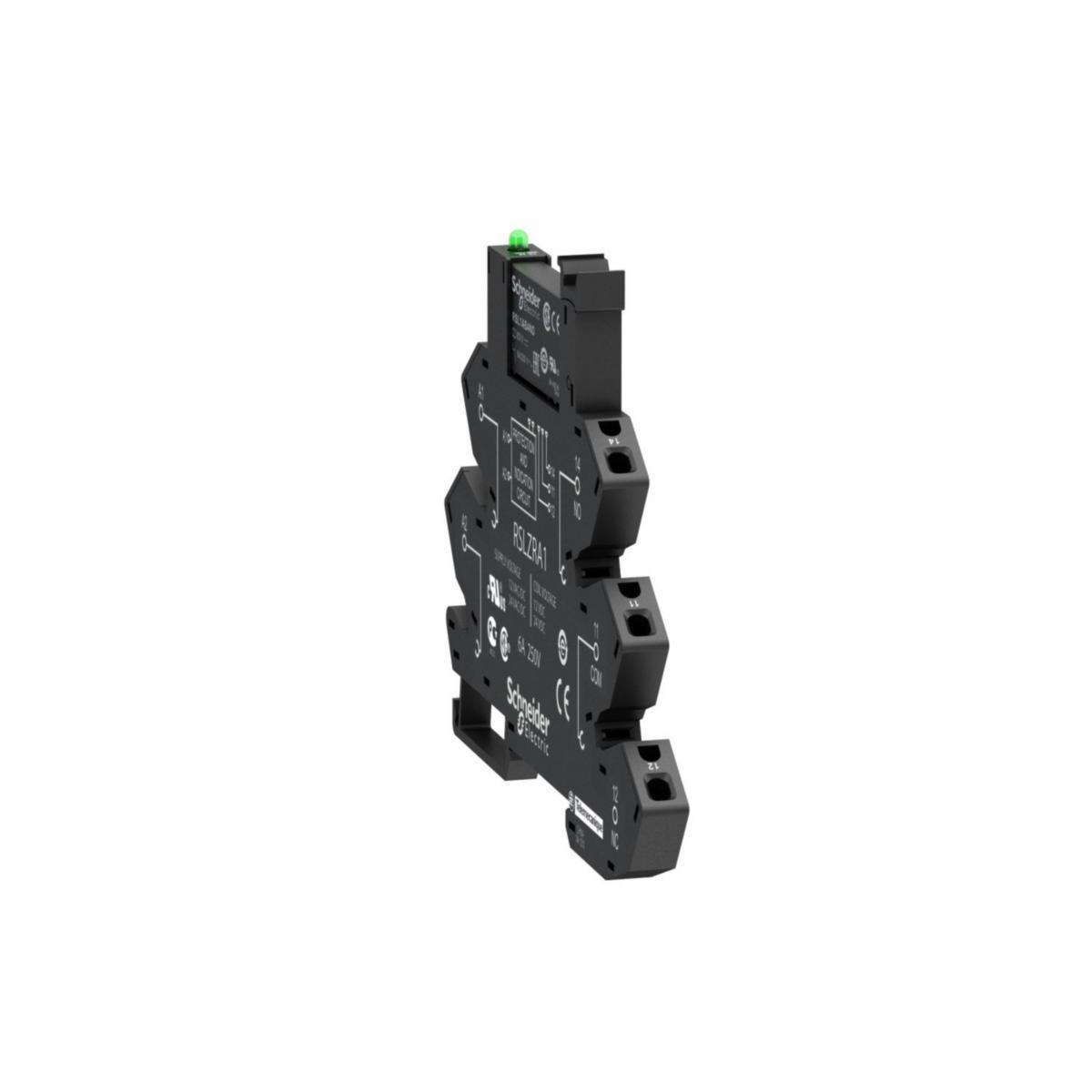

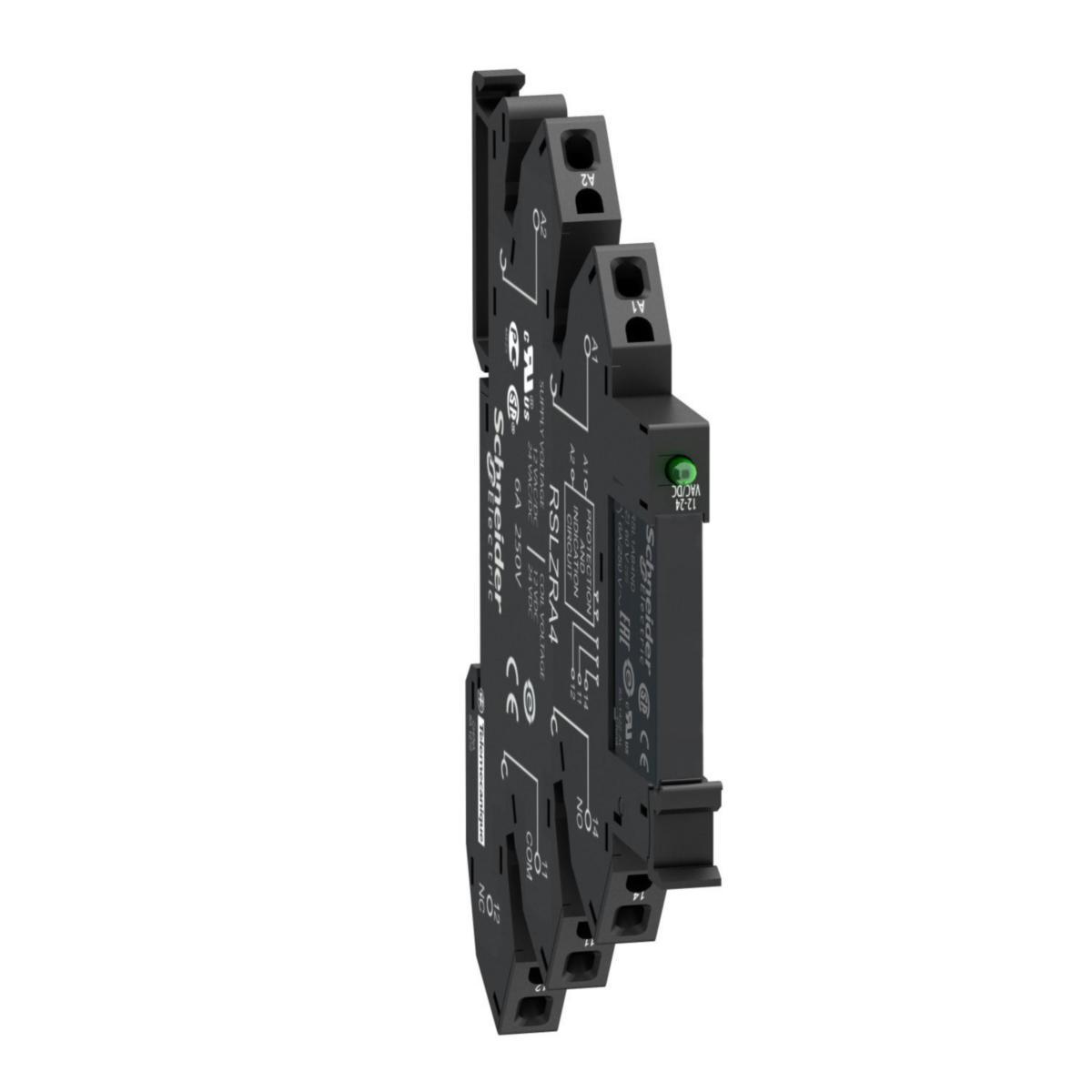

Interface relay RSL 6.2 mm
SLIM RELAY 1C O LED 24VAC DC RSL1PRBU
Article number: Suppl. article no:
4028554
RSL1PRBU
to see price and stock
Relay+base in slim model, width 6.2 mm.
- Article number: 4028554
- Suppl. article no: RSL1PRBU
- Ean no: 3606480077906
- Material class QP400B
Technical data
- Packagin Size: 1 ST/10 ST
- Rated control supply voltage DC: 24 V
- Rated control supply voltage AC 50 Hz: 24 V
- Rated control supply voltage AC 60 Hz: 24 V
- Nominal current: 6 A
- Number of contacts as change-over contact: 1
- Number of contacts as normally open contact: 0
- Number of contacts as normally closed contact: 0
- Type of switch contact: Single contact
- Type of electric connection: Spring clamp connection
- With LED indication: Yes
- Degree of protection (IP): IP40
- With detachable clamps: Yes
- Complete with socket: Yes
- Height: 78.6 mm
- Width: 6.2 mm
- Depth: 101 mm
- With forced-guided contacts: Yes
- Drive, switching attitude: Mono stable
- Drive, polarization: Polarity free
- Voltage type for actuating: DC
- Material contact: Other
- Material of contact insert: Other
- Material of contact surface: Other
- Relay technology category according to IEC 61810-7: RT I
- Contact material: AgSnO2
- REACH Date: 2025-07-18
- REACH Information obligation: No
