Schneider Electric
Manipulator assembly XD
JOYSTICK XD4PA24
Article number: Suppl. article no:
3733355
XD4PA24
to see price and stock

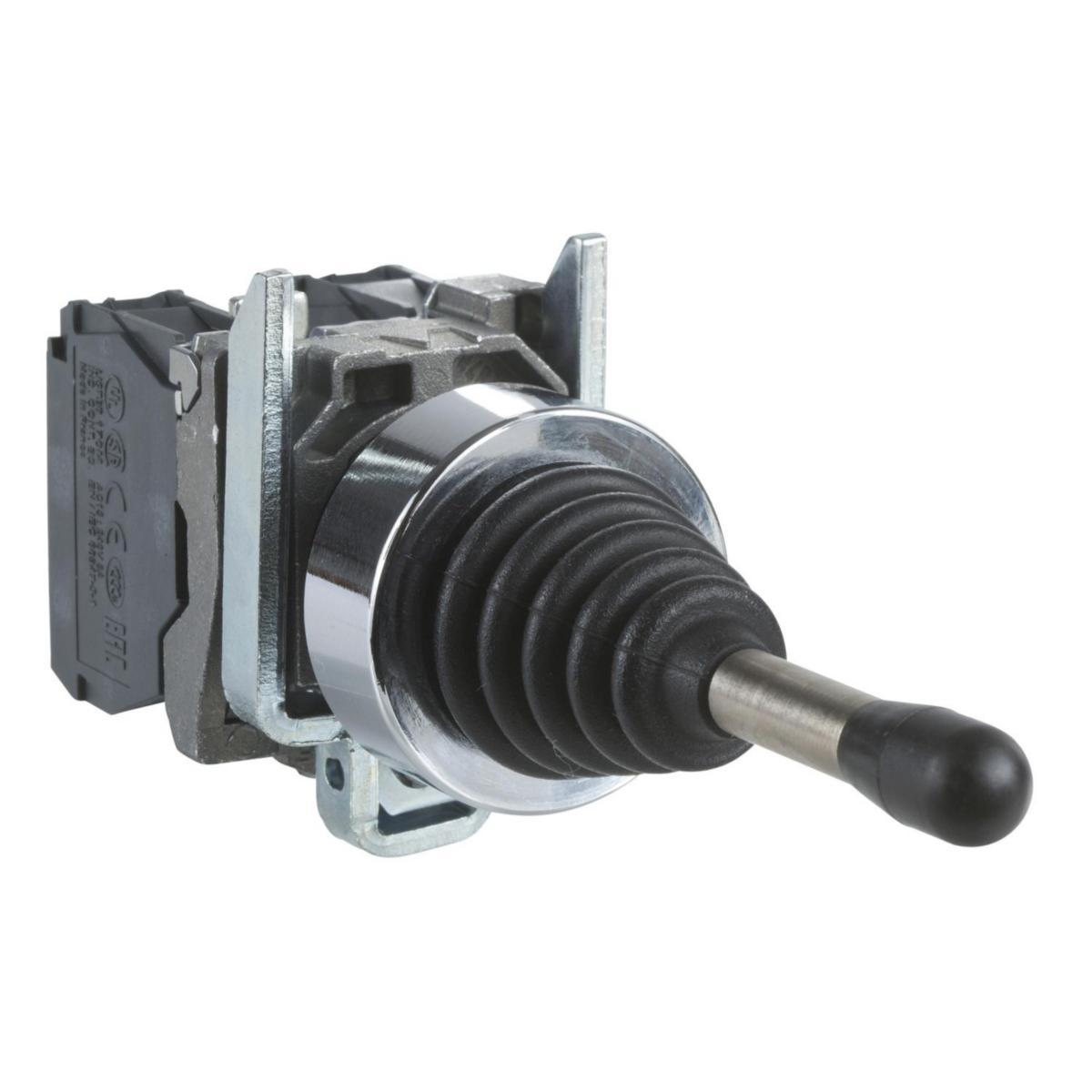

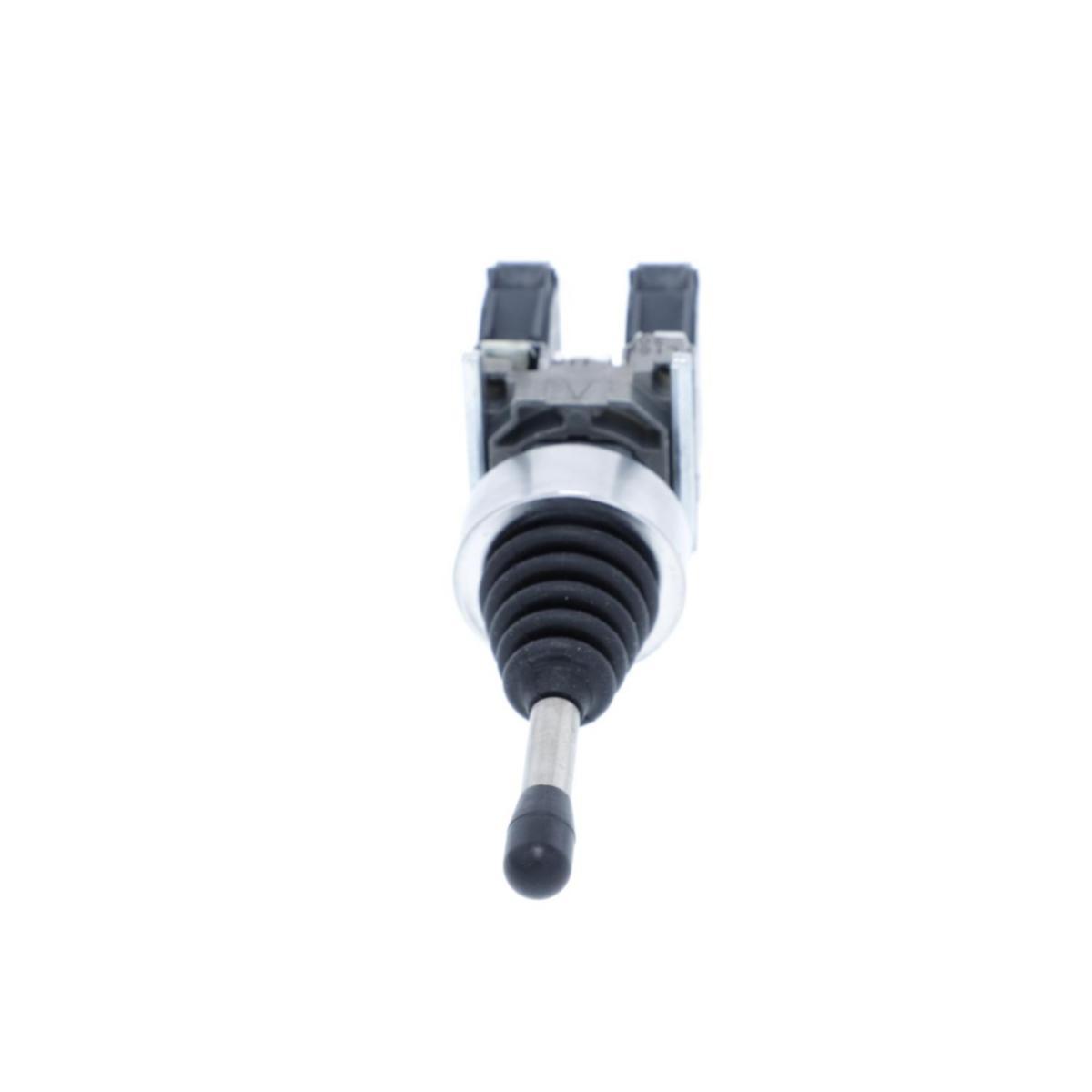

Front ring in metal Harmony with lever 54 mm long. 1 step and 1 closing contact per direction.
- Article number: 3733355
- Suppl. article no: XD4PA24
- Ean no: 3389110887433
- Material class QO760A
Technical data
- Packagin Size: 1 ST/40 ST/320 ST/336 ST
- Type: XD4PA24
- Number of actuation directions: 4
- Material front ring: Metal
- Joy stick length: 54 mm
- Number of normally open contacts per actuation direction: 1
- Number of normally closed contacts per actuation direction: 0
- Rated operation current Ie at AC-21, 400 V: 10 A
- With retraction in 0-position: Yes
- Degree of protection (IP): IP66
- Centre mounting, hole diameter: 22 mm
- Analogue output signal configurable: No
- Number of make-and-break contacts per direction: 0
- Coder: No
- Colour front ring: Chrome
- Locking in 0-position: No
- With front ring: Yes
- Number of switch positions: 4
- Degree of protection (NEMA): Other
- REACH Date: 2022-07-20
- REACH contains candidate substances: 1,2-dimetoxietan, Dimethyl Glycol, 1,2-dimethoxyethane
- REACH Information obligation: Yes
