Schneider Electric

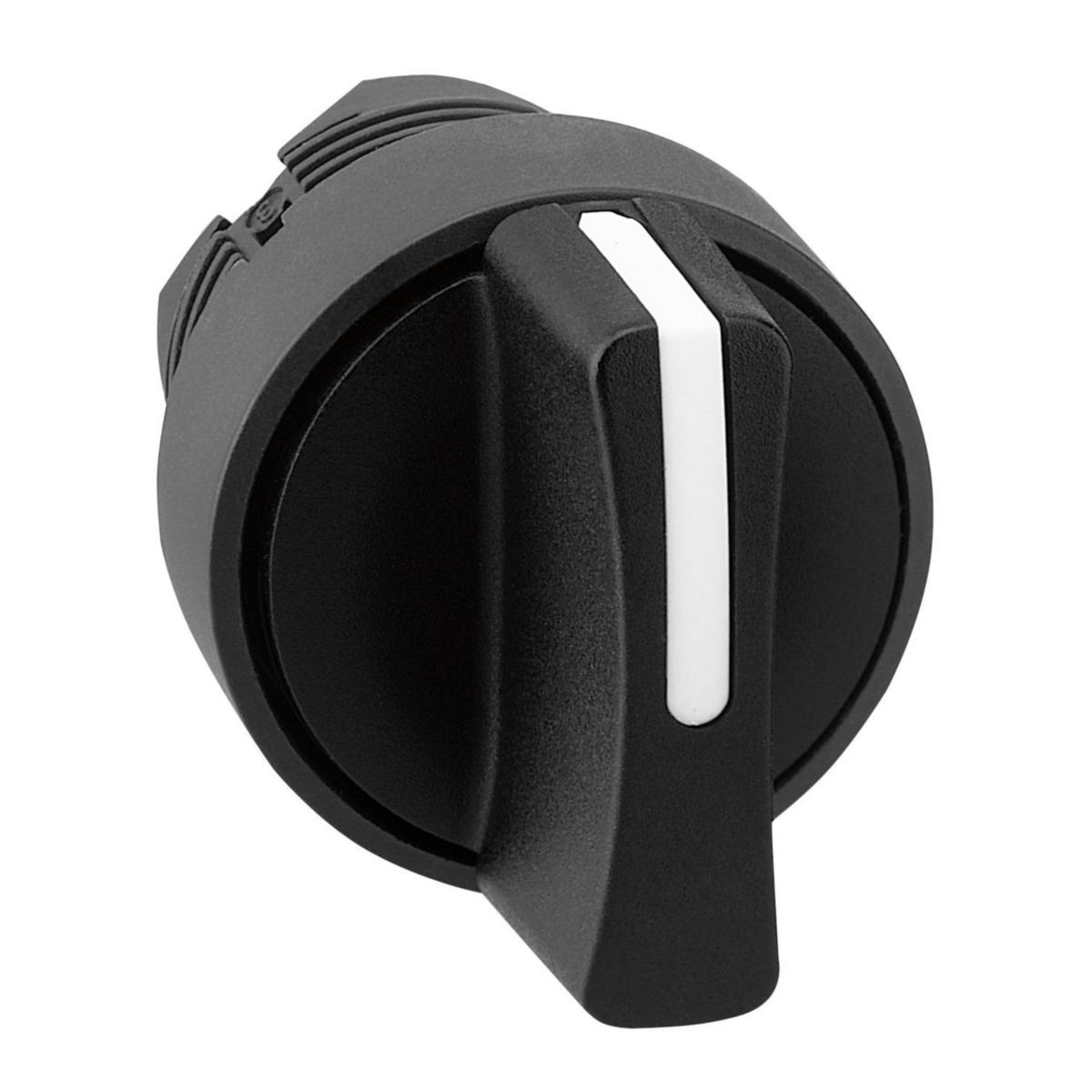

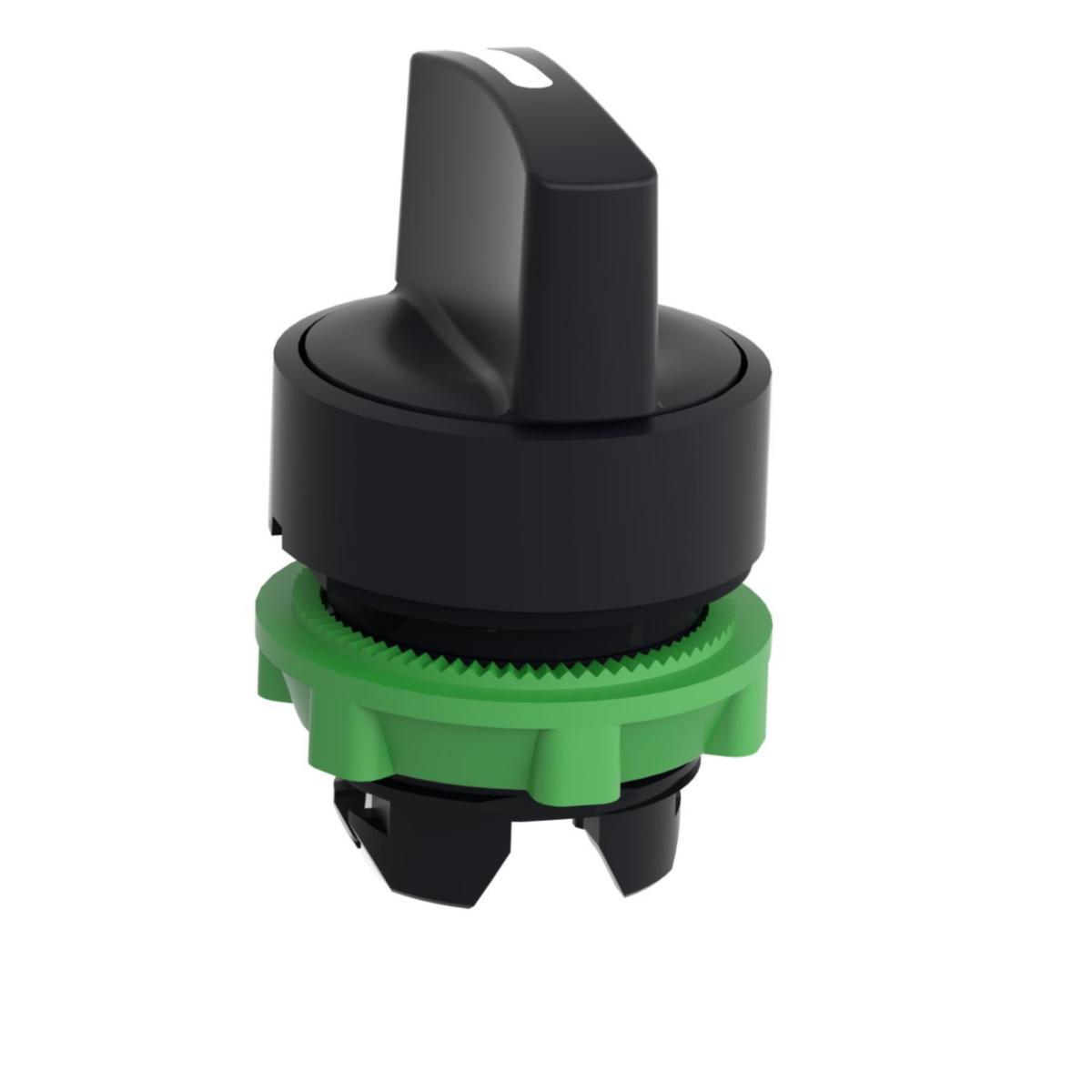

Rotary switch short black ZB5AD
SELECTOR SWITCH HEAD 3 POS ZB5AD8
Article number: Suppl. article no:
3734003
ZB5AD8
to see price and stock
Front ring in plastic Harmony
- Article number: 3734003
- Suppl. article no: ZB5AD8
- Ean no: 3389110905311
- Material class QO760B
Technical data
- Packagin Size: 1 ST/100 ST/400 ST
- Type: ZB5AD8
- Design: Harmony style 5
- Colour control element: Black
- With front ring: Yes
- Colour front ring: Black
- Number of switch positions: 3
- Spring-return: Yes
- Material front ring: Plastic
- Hole diameter: 22.5 mm
- Suitable for lighting: No
- Switching function latching: No
- Degree of protection (IP), front side: IP67
- Type of control element: Short rotary handle
- Construction type lens: Round
- Height opening: 0 mm
- Width opening: 0 mm
- Degree of protection (NEMA): 13
- Weight: 0.024 g
- REACH Date: 2025-07-18
- Product series: Harmony style 5
- Temperature range in operation: -25° C to +70° C
- Number of contacts: 1 to 9 pc
- Rated data at AC 15: Ue = 240 V, le = 3 A
- Rated data at DC 13: Ue = 250 V, le = 0.27 A
- Number of positions: from right to middle
- Screw connection: min 1x0.22 mm without end sleeve
max 2x1.5 mm with end sleeve - REACH Information obligation: No
