Schneider Electric

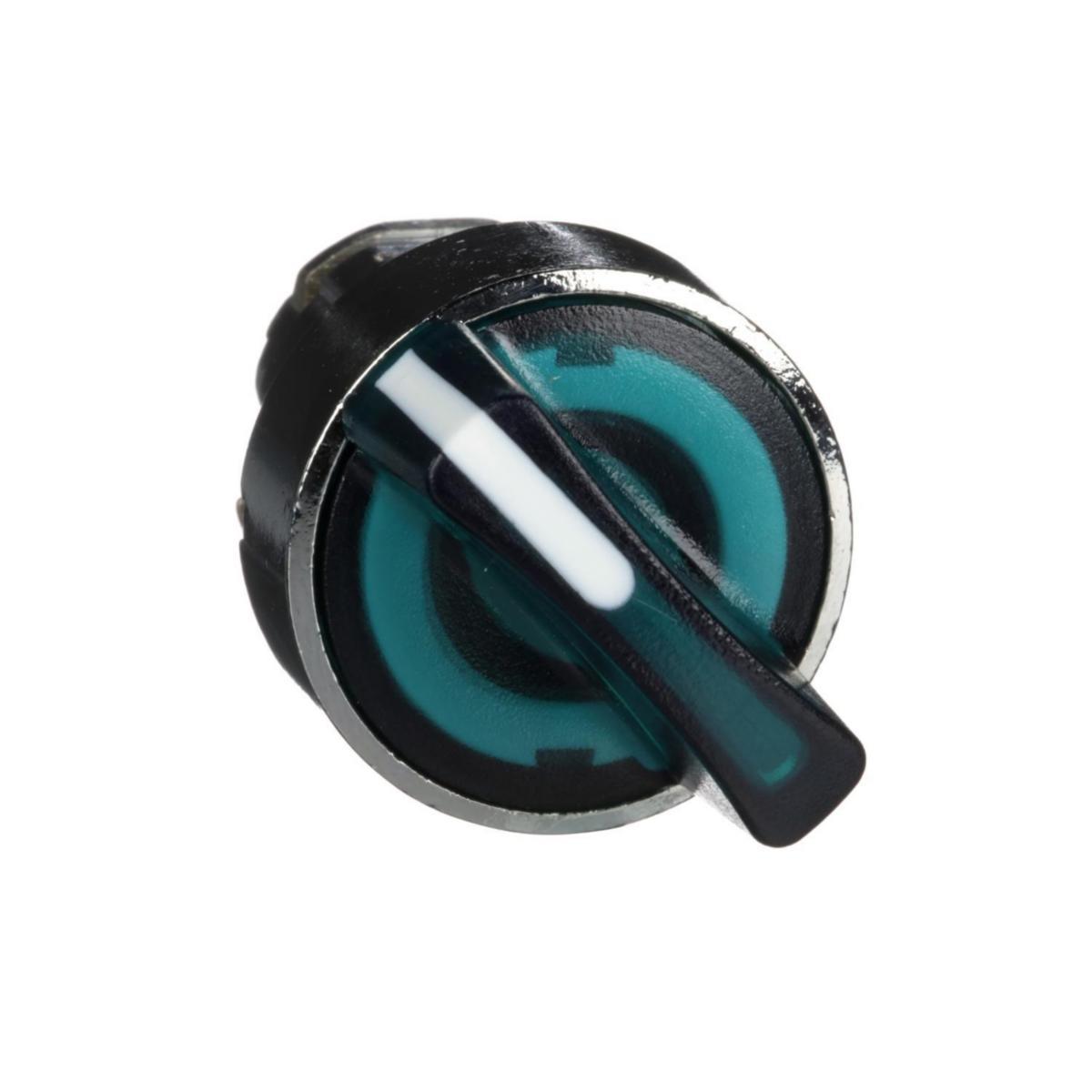

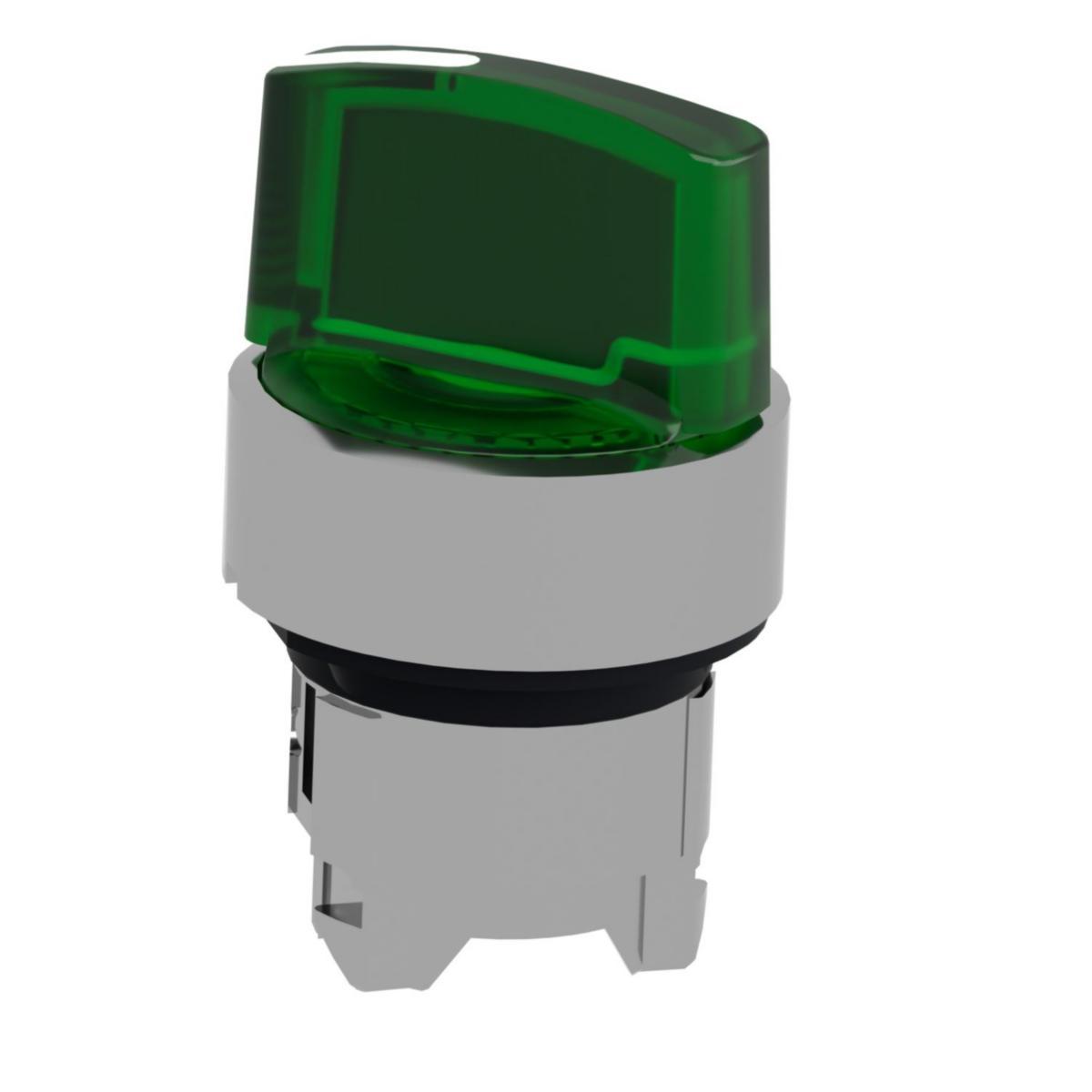

Lamp rotary switch short with LED ZB4BK
ILLUM SEL TO R SWITCH HEAD 2 P ZB4BK1233
Article number: Suppl. article no:
3733164
ZB4BK1233
to see price and stock
Front ring in metal Harmony.
- Article number: 3733164
- Suppl. article no: ZB4BK1233
- Ean no: 3389110890433
- Material class QO760B
Technical data
- Packagin Size: 1 ST/5 ST/250 ST/1600 ST
- Type: ZB4BK1233
- Design: Harmony style 4
- Colour control element: Green
- Colour indicator light cap: Green
- With front ring: Yes
- Colour front ring: Chrome
- Number of switch positions: 2
- Spring-return: No
- Material front ring: Metal
- Hole diameter: 22.5 mm
- Suitable for lighting: Yes
- Switching function latching: Yes
- Degree of protection (IP), front side: IP66
- Type of control element: Short rotary handle
- Construction type lens: Round
- Height opening: 0 mm
- Width opening: 0 mm
- Degree of protection (NEMA): Other
- Weight: 0.04 g
- REACH Date: 2025-07-18
- Temperature range in operation: -25° C to +70° C
- Number of contacts: 1 to 9 pc
- Rated data at AC 15: Ue = 240 V, le = 3 A
- Rated data at DC 13: Ue = 250 V, le = 0.27 A
- Contacts: Slow function, force-switching
- REACH Information obligation: No
