Schneider Electric

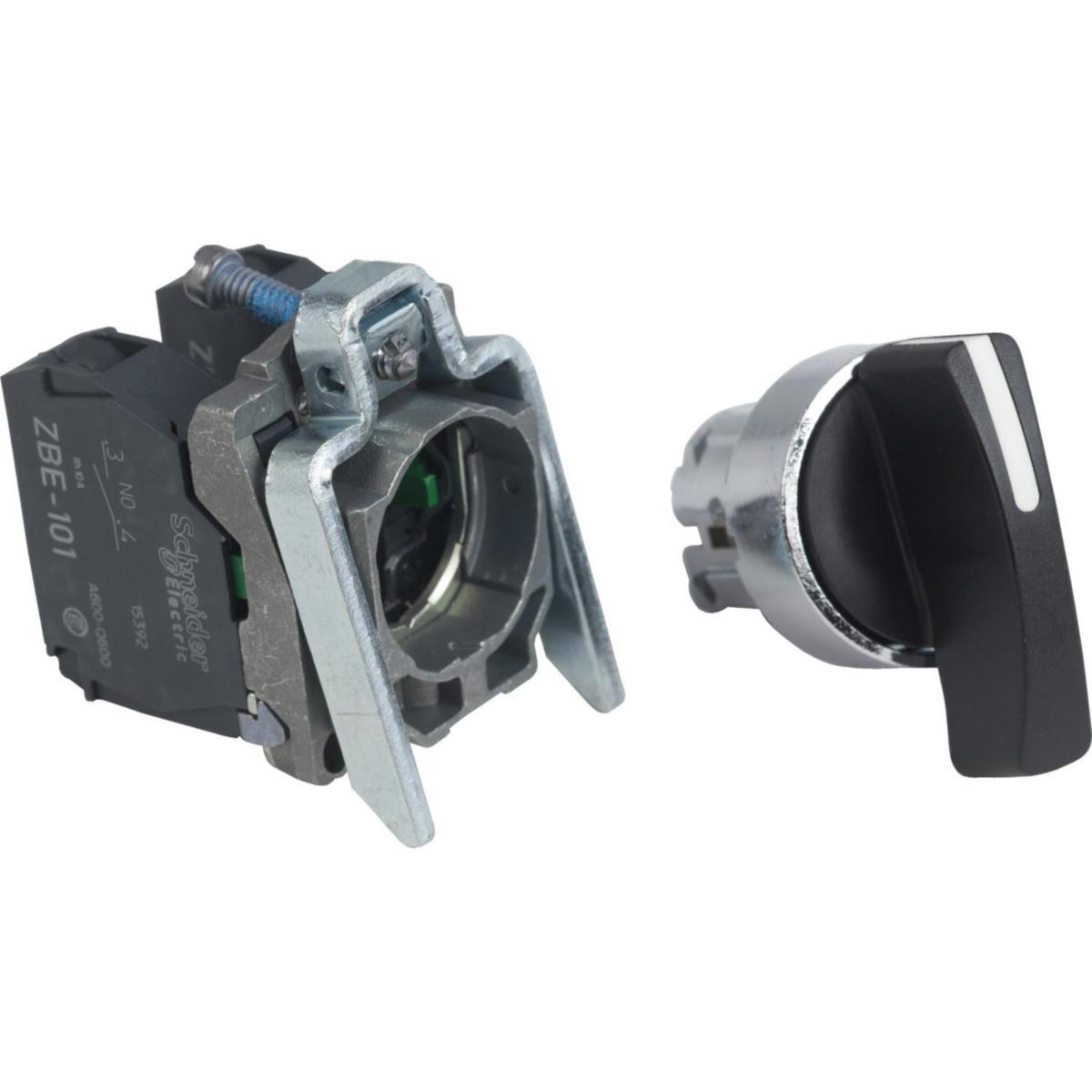

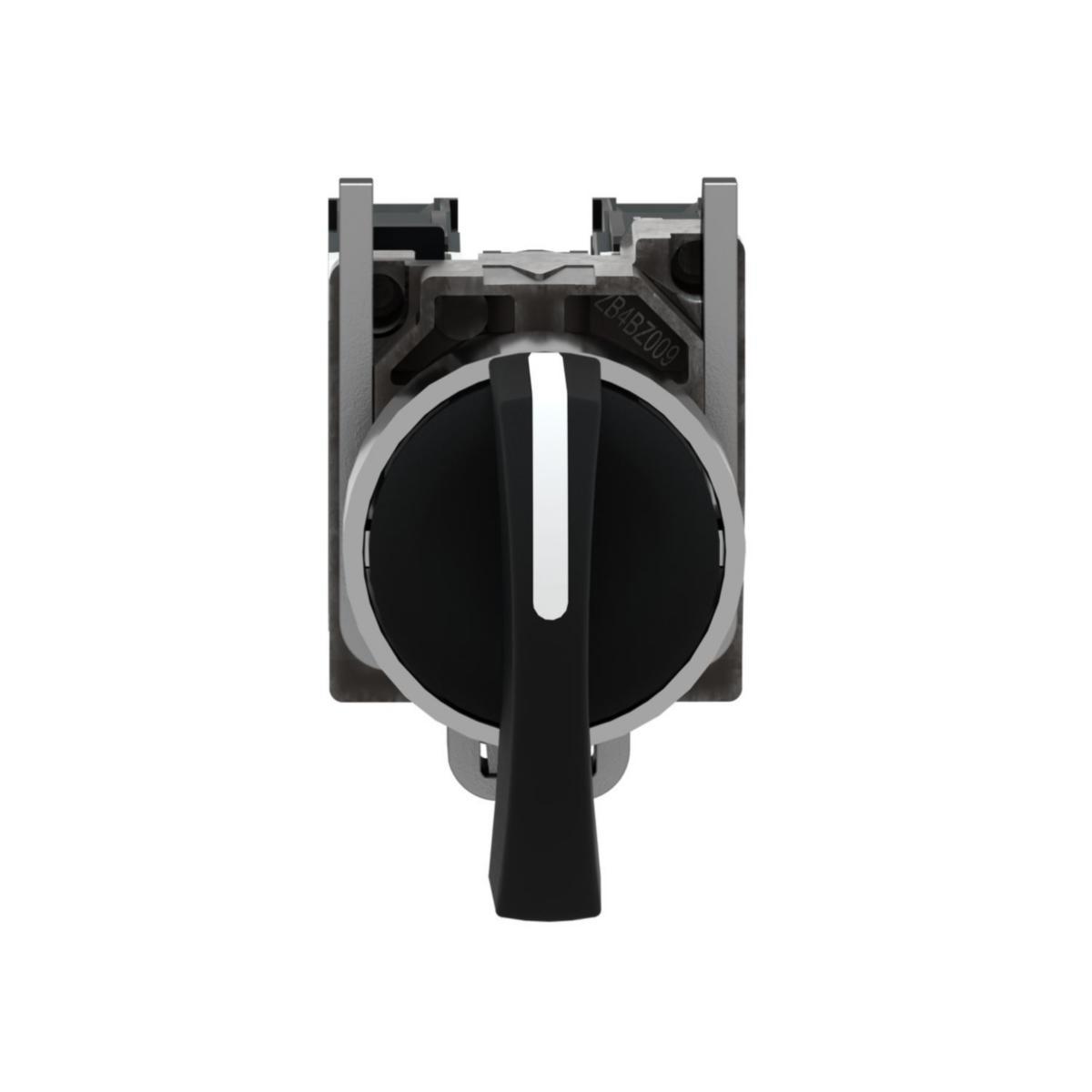

Switch XB4BJ with long black rotary control
BLACK SELECTOR SWITCH DIAM 22 XB4BJ53
Article number: Suppl. article no:
3732630
XB4BJ53
to see price and stock
Front ring in metal Harmony.
- Article number: 3732630
- Suppl. article no: XB4BJ53
- Ean no: 3389110887129
- Material class QO760B
Technical data
- Packagin Size: 1 ST/5 ST/100 ST
- Type: XB4BJ53
- Design: Harmony style 4
- Hole diameter: 22.5 mm
- Number of switch positions: 3
- Colour button: Black
- Number of contacts as normally open contact: 2
- Number of contacts as normally closed contact: 0
- Degree of protection (IP): IP67/IP69K
- Type of control element: Long rotary handle
- Material front ring: Metal
- Spring-return: Yes
- Suitable for lighting: No
- Type of electric connection: Screw connection
- With light source: No
- Colour front ring: Chrome
- With front ring: Yes
- Switching function latching: Yes
- Number of contacts as change-over contact: 0
- Width opening: 0 mm
- Height opening: 0 mm
- Degree of protection (NEMA): 13
- Weight: 0.105 g
- REACH Date: 2025-07-18
- Service life with LED: 100 000 hours.
- Temperature range in operation: -25° C to +70° C
- Rated data at AC 15: Ue = 240 V, le = 3 A
- Rated data at DC 13: Ue = 250 V, le = 0.27 A
- Number of positions: recoil to middle
- Power consumption with LED: At 240 V AC = 14 mA
- REACH Information obligation: No
