ABB

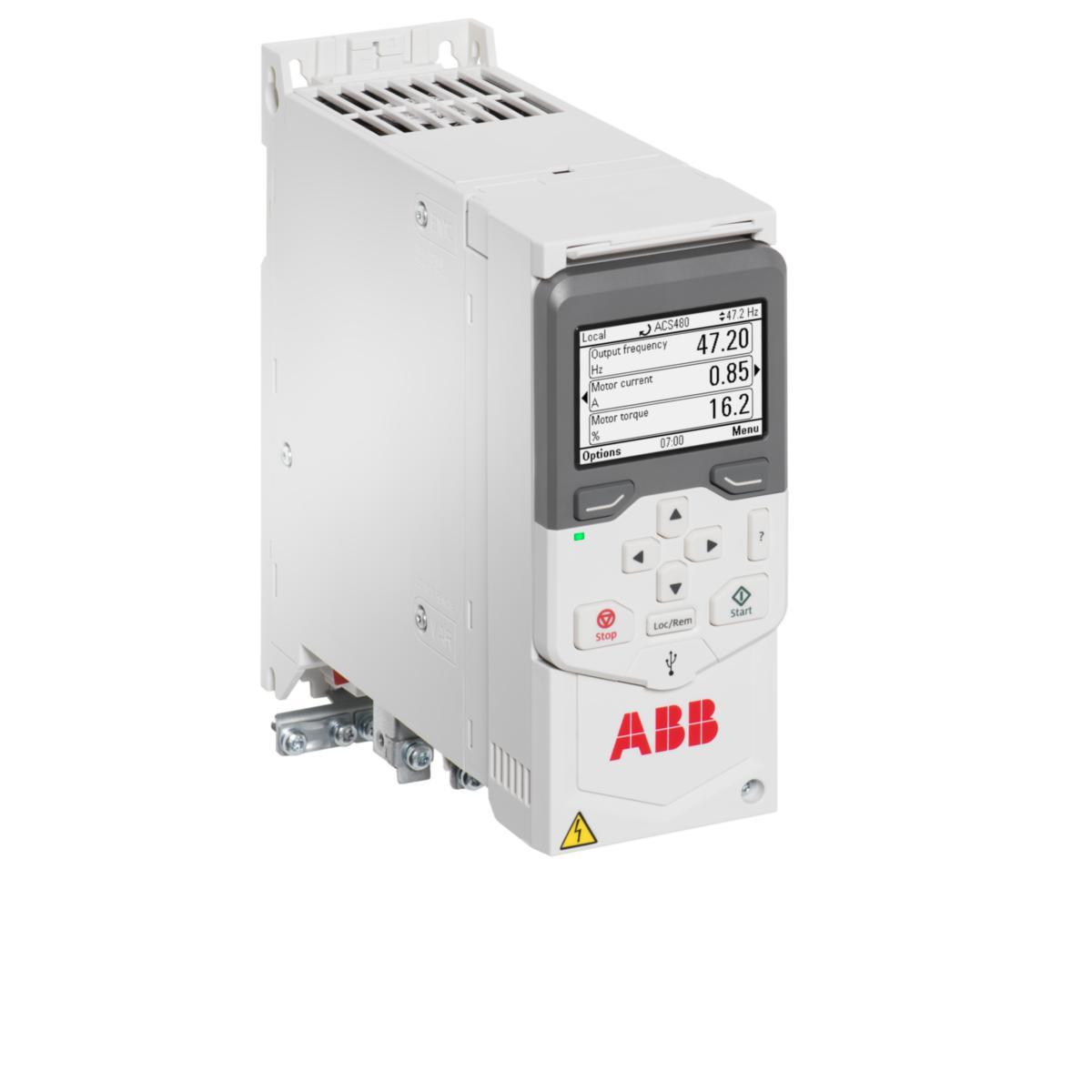

Frequency converter ACS480 3-phase, IP20
FREQ CONV ACS480 0.75KW 400V ACS480-04-02A7-4
Article number: Suppl. article no:
3323825
ACS480-04-02A7-4
to see price and stock
ABB's standard frequency converter ACS480 for general machine applications in light industry and for building automation, IP20 for installation in cabinets. Equipped with an interactive display that guides you to an optimal setting of your drive system.
All essential accessories and functions are built-in as standard.
Available for voltages 200-240V in the power range 0.37 - 3 kW and 380 - 480V in the power range 0.75 - 22 kW, 50/60 Hz.
Examples of applications: Transport tracks, fans, pumps, stirrers, etc.
All essential accessories and functions are built-in as standard.
Available for voltages 200-240V in the power range 0.37 - 3 kW and 380 - 480V in the power range 0.75 - 22 kW, 50/60 Hz.
Examples of applications: Transport tracks, fans, pumps, stirrers, etc.
- Article number: 3323825
- Suppl. article no: ACS480-04-02A7-4
- Ean no: 6438177458937
- Material class QO570B
Technical data
- Number of phases input: 3
- Mains voltage: 380-480 V
- Nominal output current I2N: 2.6 A
- Max. output at linear load at rated output voltage: 0.75 kW
- Max. output at quadratic load at rated output voltage: 0.75 kW
- Height: 223 mm
- Width: 73 mm
- Depth: 207 mm
- Type of converter: U converter
- Application in industrial area permitted: Yes
- Application in domestic- and commercial area permitted: Yes
- Degree of protection (IP): IP20
- Number of phases output: 3
- Supporting protocol for PROFIsafe: No
- Supporting protocol for CAN: Yes
- Supporting protocol for Data-Highway: No
- Supporting protocol for TCP/IP: Yes
- Supporting protocol for INTERBUS-Safety: No
- Integrated breaking resistance: Yes
- Supporting protocol for PROFINET IO: Yes
- Supporting protocol for SafetyBUS p: No
- Number of HW-interfaces other: 5
- Number of HW-interfaces serial TTY: 0
- Number of HW-interfaces parallel: 0
- Number of HW-interfaces industrial Ethernet: 0
- 4-quadrant operation possible: No
- Max. output frequency: 599 Hz
- With PC connection: Yes
- With optical interface: No
- With control element: Yes
- Mains frequency: 50/60 Hz
- Relative symmetric net frequency tolerance: 5 %
- Relative symmetric net voltage tolerance: 10 %
- Number of HW-interfaces USB: 1
- Supporting protocol for ASI: No
- Number of HW-interfaces RS-485: 1
- Number of HW-interfaces RS-422: 0
- Supporting protocol for DeviceNet: Yes
- Supporting protocol for KNX: No
- Supporting protocol for INTERBUS: No
- Supporting protocol for Modbus: Yes
- Number of HW-interfaces RS-232: 0
- Supporting protocol for SERCOS: No
- Supporting protocol for SUCONET: No
- Number of interfaces PROFINET: 0
- Supporting protocol for LON: No
- Supporting protocol for other bus systems: Yes
- Supporting protocol for AS-Interface Safety at Work: No
- Supporting protocol for DeviceNet Safety: No
- Supporting protocol for EtherNet/IP: Yes
- Supporting protocol for Foundation Fieldbus: No
- Supporting protocol for PROFINET CBA: No
- Supporting protocol for PROFIBUS: Yes
