Schneider Electric

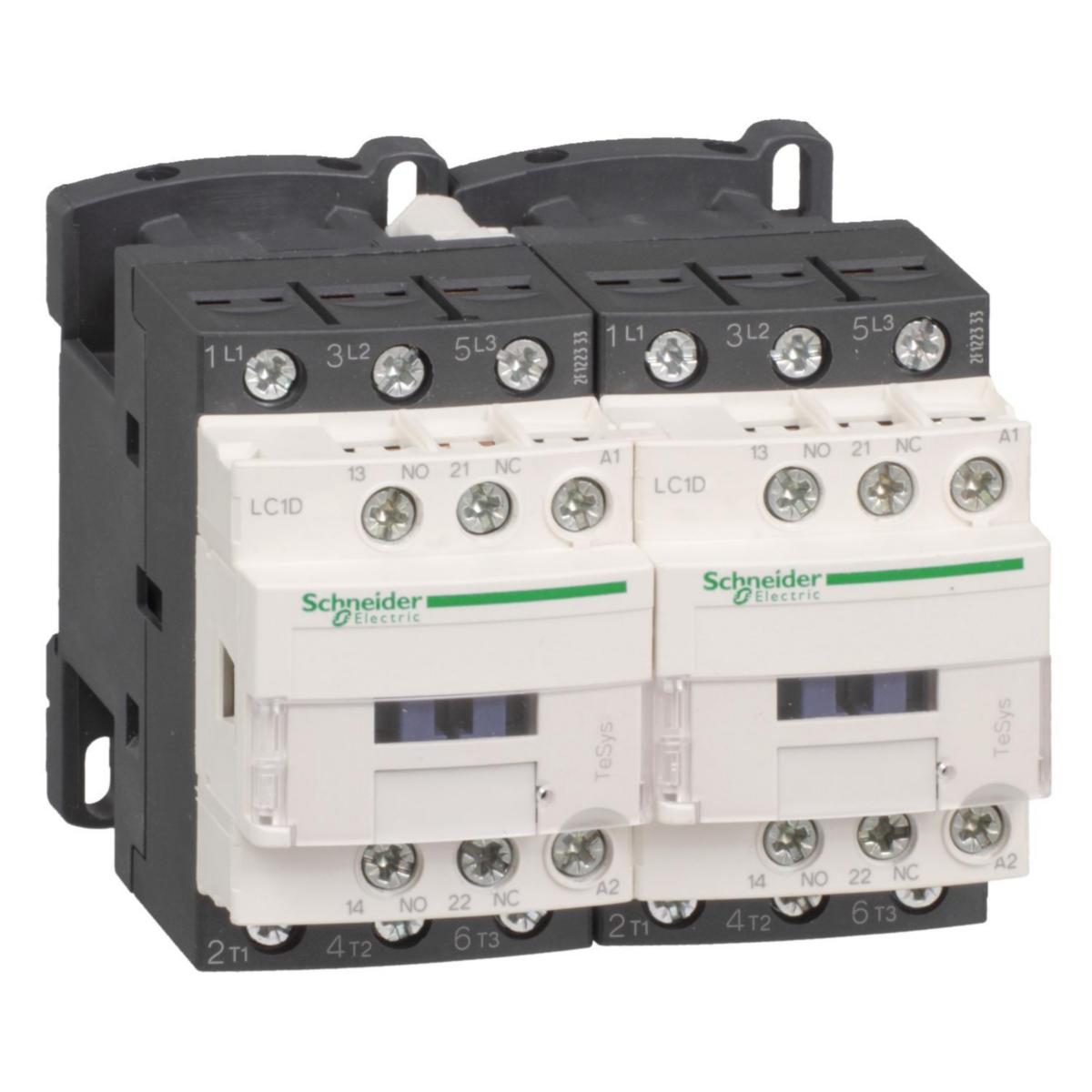

Front and back coupling 9-38 A, series D
REV. CONTR. 9A 4KW 230VAC LC2D09P7
Article number: Suppl. article no:
3239306
LC2D09P7
to see price and stock
AC operated.
Consists of two contactors mechanically interlocked.
For mounting on 35 mm omega rail or with screw.
Prepared for mounting of LRD type overcurrent relay (ordered separately).
Consists of two contactors mechanically interlocked.
For mounting on 35 mm omega rail or with screw.
Prepared for mounting of LRD type overcurrent relay (ordered separately).
- Article number: 3239306
- Suppl. article no: LC2D09P7
- Ean no: 3389110384734
- Material class QO360B
Technical data
- Packagin Size: 1 ST/8 ST
- Type: LC2D09P7
- Function: Reversing contactor
- Rated operation power at AC-3, 400 V: 4 kW
- Rated operation current Ie at AC-3, 400 V: 9 A
- Rated control supply voltage AC 50 Hz: 230 V
- Type of electrical connection of main circuit: Screw connection
- Rated operation power NEMA: 3.73 kW
- Degree of protection (NEMA): Other
- Number of auxiliary contacts as normally open contact: 1
- Number of normally open contacts as main contact: 3
- Number of auxiliary contacts as normally closed contact: 1
- Number of normally closed contacts as main contact: 0
- Width: 90 mm
- Depth: 86 mm
- Operating voltage AC 50 Hz: 440 V
- Operating voltage AC 60 Hz: 440 V
- Height: 77 mm
- Degree of protection (IP): IP20
- Rated control supply voltage AC 60 Hz: 230 V
- Rated operation current Ie at AC-1, 400 V: 20 A
- Suitable for rail mounting: Yes
- Voltage type for actuating: AC
- Type of electrical connection for auxiliary- and control current circuit: Screw connection
- Voltage type (operating voltage): AC
- REACH Date: 2025-07-18
- REACH Information obligation: No
