Schneider Electric

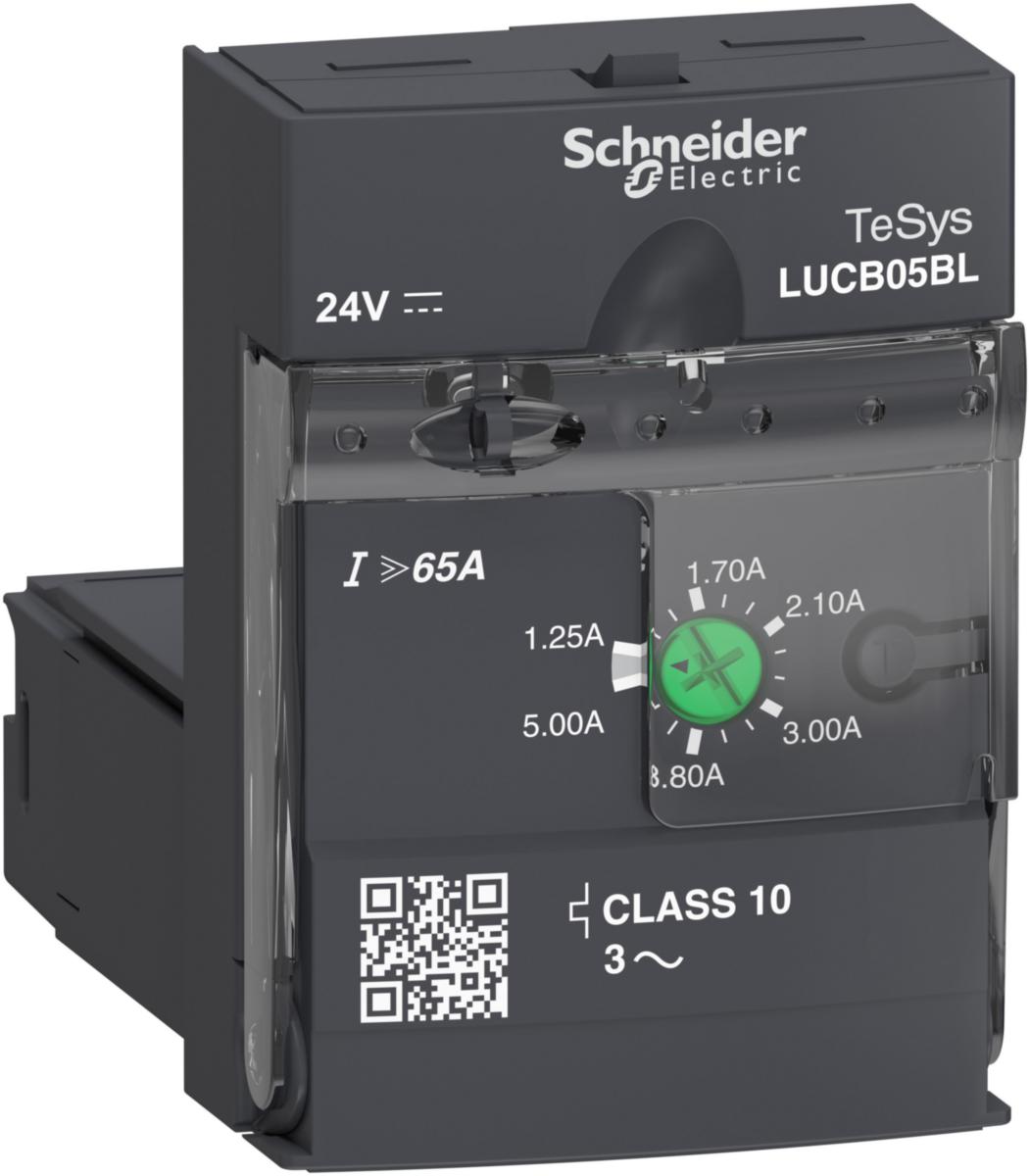

Protection modules LUCB, advanced, 3-phase, class 10
UNIT 1,25-5A 24VDC CL 10 ADV. LUCB05BL
Article number: Suppl. article no:
3231022
LUCB05BL
to see price and stock
Pressing the test button on the front panel simulates tripping due to overload.
* Fits LUB12, LU2B12... ,LU2B32 and LUB32...
** Fits LUB32 and LUB2B32
* Fits LUB12, LU2B12... ,LU2B32 and LUB32...
** Fits LUB32 and LUB2B32
- Article number: 3231022
- Suppl. article no: LUCB05BL
- Ean no: 3389110364088
- Material class QO360B
Technical data
- Packagin Size: 1 ST/23 ST/368 ST
- Type: LUCB05BL*
- Overload release current setting: 1.25-5 A
- Rated permanent current Iu: 5 A
- Number of poles: 3
- Voltage type for actuating: DC
- Rated control supply voltage DC: 24 V
- Type of motor protection: Electronic release
- Short-circuit release function: Undelayed
- With ground fault protection function: Yes
- Rated control supply voltage AC 60 Hz: 0 V
- Initial value of the undelayed short-circuit release - setting range: 65 A
- Number of auxiliary contacts as normally open contact: 0
- Height: 66 mm
- Voltage type (operating voltage): AC
- Width: 45 mm
- Number of auxiliary contacts as normally closed contact: 0
- Voltage type (supply voltage): DC
- External power supply required: Yes
- Depth: 60 mm
- Operating voltage AC 60 Hz: 690 V
- Operating voltage AC 50 Hz: 690 V
- End value adjustment range undelayed short-circuit release: 65 A
- REACH Date: 2025-07-18
- REACH contains candidate substances: Bly | Boroxid, Diboron trioxide | Lead oxide, Blyoxid, Blymonoxid, C.I. Pigment Yellow 46 , C.I. 77577, Litharge, Lead(II) oxide | 2-methylimidazole
- Rated control supply voltage AC 50 Hz: 0 V
- REACH Information obligation: Yes
- Type of electrical connection of main circuit: Other
