Schneider Electric

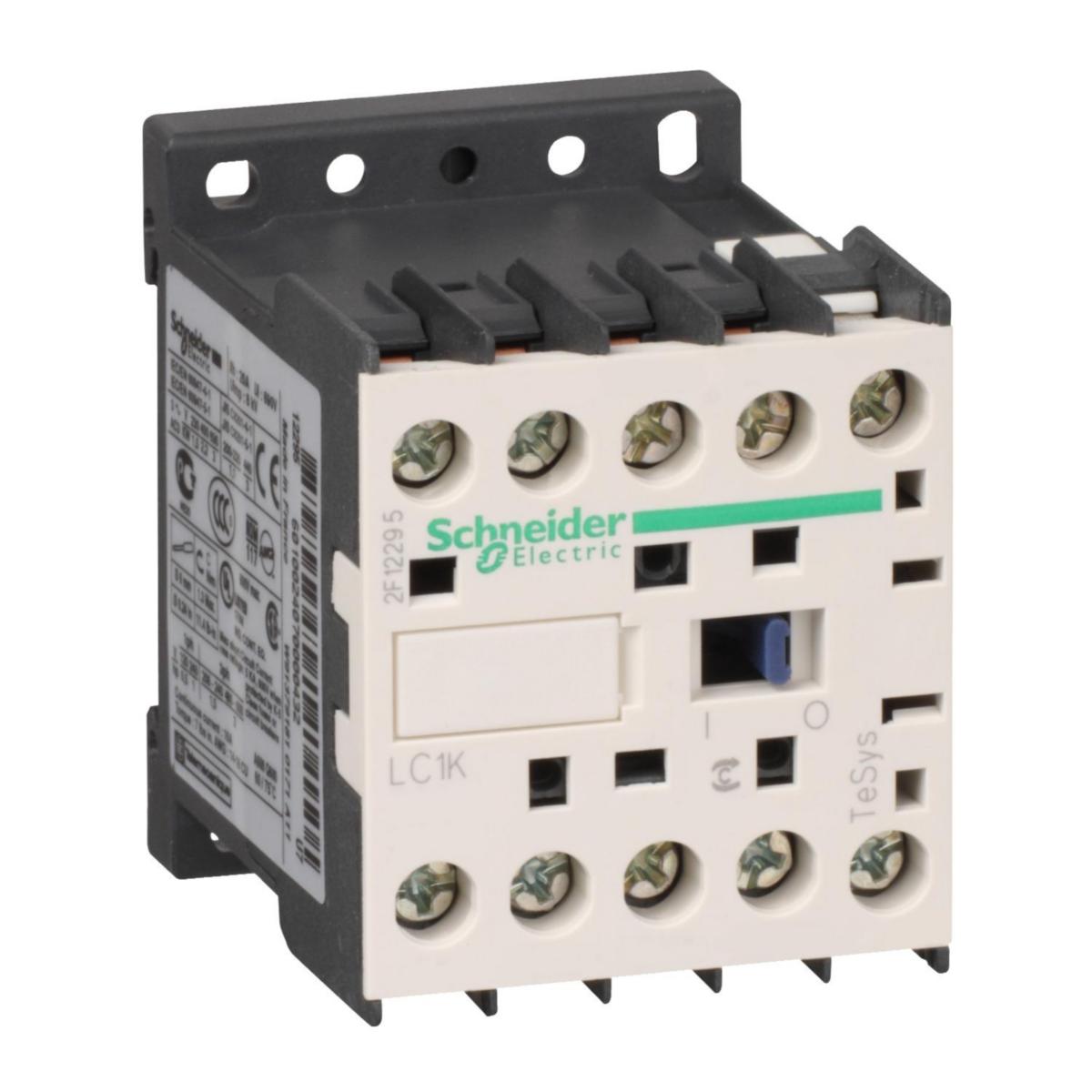

Mini contactor LC1K AC operated
Contactor AC3 9A 380...400V LC1K0910Q7
Article number: Suppl. article no:
3230626
LC1K0910Q7
to see price and stock
3 or 4 main poles
- Article number: 3230626
- Suppl. article no: LC1K0910Q7
- Ean no: 3389110238945
- Material class QO360B
Technical data
- Packagin Size: 1 ST/10 ST/50 ST
- Type: LC1K0910Q7
- Number of normally open contacts (NO) as main contact: 3
- Number of normally closed contacts (NC) as main contact: 0
- Number of auxiliary contacts as normally open contact (NO): 1
- Number of auxiliary contacts as normally closed contact (NC): 0
- Rated operation power at AC-3, 400 V: 4 kW
- Rated operation current Ie at AC-1, 400 V: 20 A
- Rated operation current Ie at AC-3, 400 V: 9 A
- Rated control supply voltage AC 50 Hz: 380-400 V
- Rated control supply voltage DC: 0 V
- Voltage type for actuating: AC
- Type of electrical connection of main circuit: Screw connection
- Suitable for distribution board: No
- Rated operation current Ie at AC-4, 400 V: 6 A
- Rated operation power at AC-4, 400 V: 2.2 kW
- Width: 45 mm
- Depth: 57 mm
- Operating voltage AC 50 Hz: 440 V
- Operating voltage AC 60 Hz: 440 V
- Height: 58 mm
- Rated control supply voltage AC 60 Hz: 380-400 V
- REACH Date: 2025-07-18
- REACH Information obligation: No
