ABB
Mini contactor BC7

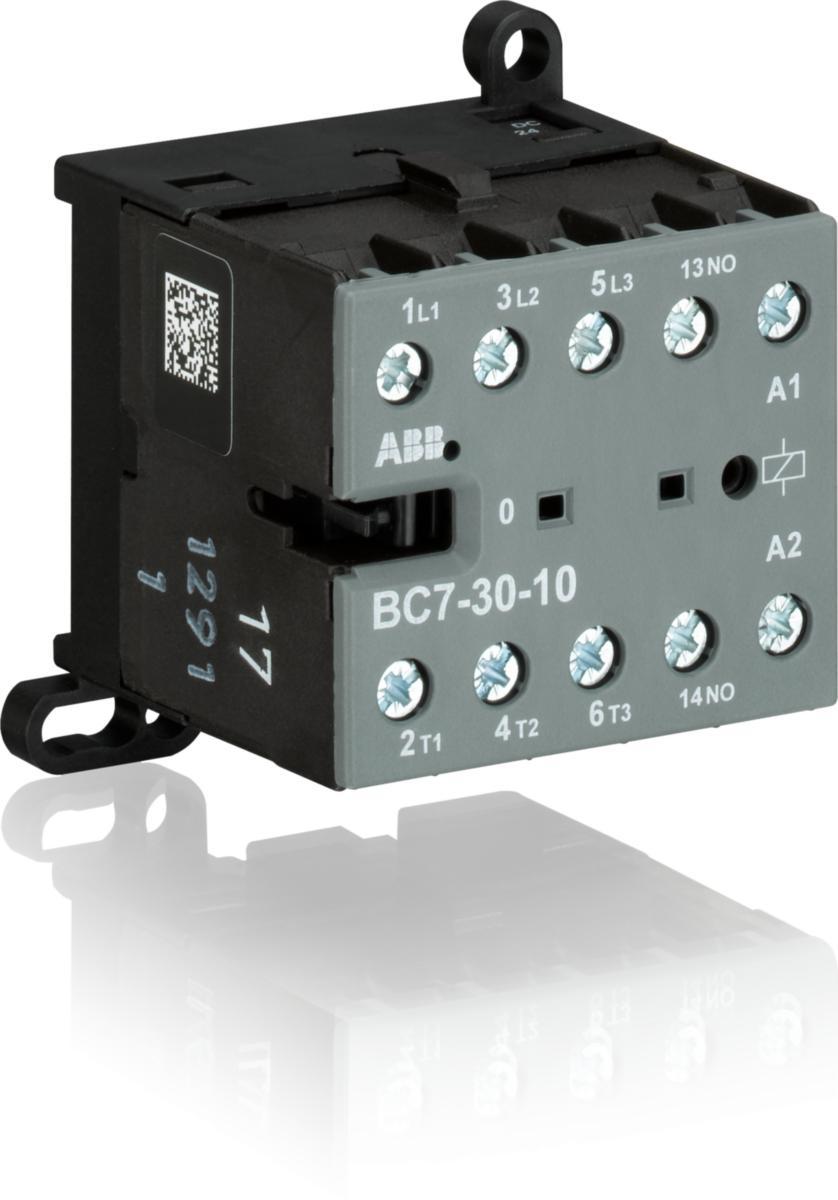

BC7-30-10-01 MINI CONTACTOR GJL1313001R0101
Article number: Suppl. article no:
3210076
GJL1313001R0101
to see price and stock
Mini contactors are a compact 3-pole contactor with 1 auxiliary contact ,, for applications where reliability is a must and space is limited. Mini-contactors are used in residential, commercial buildings and industrial applications for control of 1- or 3-phase loads up to 4-5.5 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. Additional features are the hum-free coil.
- Article number: 3210076
- Suppl. article no: GJL1313001R0101
- Ean no: 4013614150159
- Material class QO300B
Technical data
- Number of normally open contacts (NO) as main contact: 3
- Number of normally closed contacts (NC) as main contact: 0
- Number of auxiliary contacts as normally open contact (NO): 1
- Number of auxiliary contacts as normally closed contact (NC): 0
- Rated operation power at AC-3, 400 V: 5.5 kW
- Rated operation current Ie at AC-1, 400 V: 6 A
- Rated operation current Ie at AC-3, 400 V: 12 A
- Rated control supply voltage AC 50 Hz: 24 V
- Rated control supply voltage DC: 24 V
- Voltage type for actuating: DC
- Type of electrical connection of main circuit: Screw connection
- Suitable for distribution board: No
- Rated operation power NEMA: 3.7285 kW
- Rated control supply voltage AC 60 Hz: 24 V
- GWP-tot (A1-A3): 1,9647 kgCO2e/ST
- REACH Date: 2022-01-18
- REACH Information obligation: No
