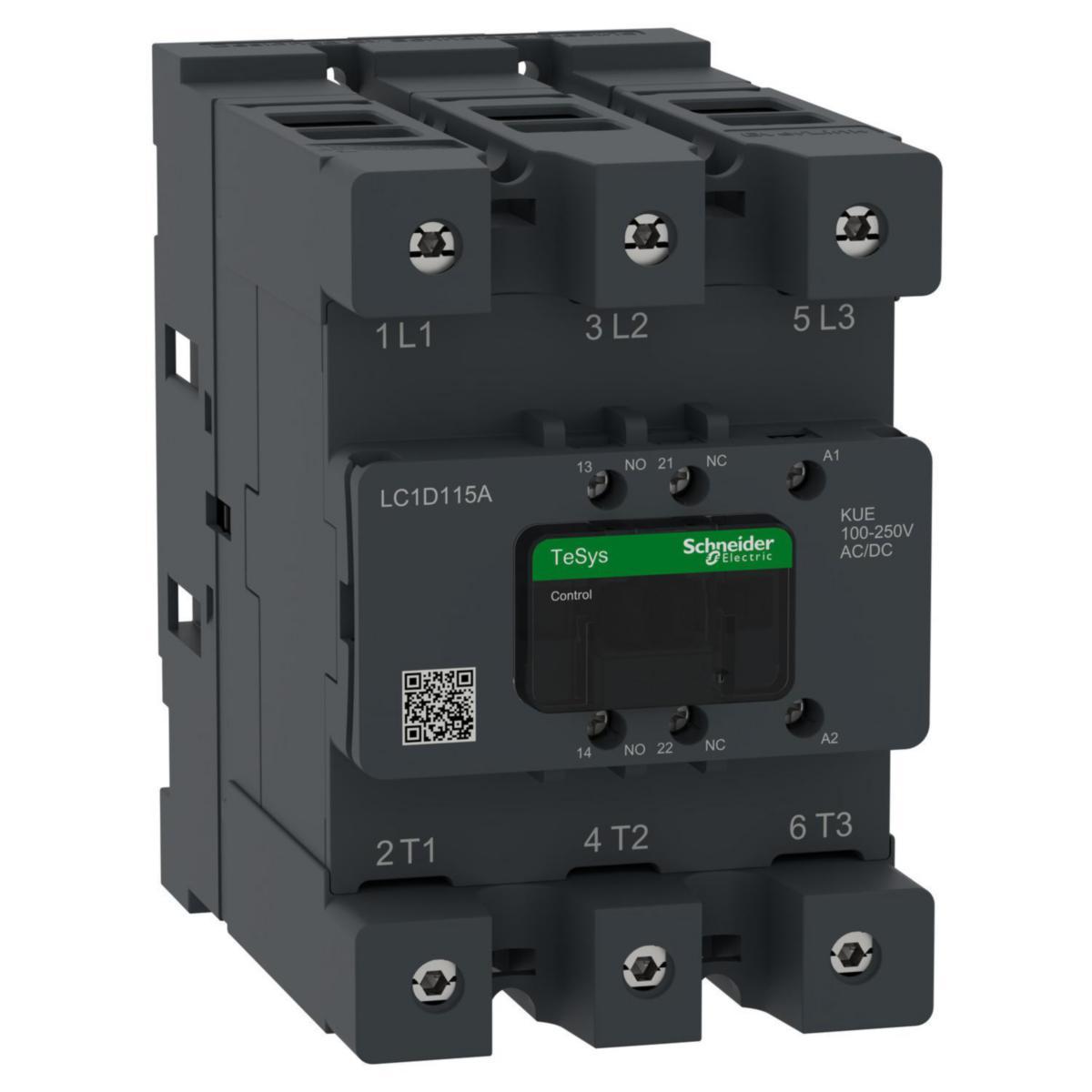

Contactor LC1D 115-200A Deca Advance
CTR Deca 115A 100-250VACDC EvL
Article number: Suppl. article no:
3290467
LC1D115AKUE
to see price and stock
Contactor LC1D 115-200A Deca Advance
- Article number: 3290467
- Suppl. article no: LC1D115AKUE
- Ean no: 3606486976975
- Material class QO3600
Technical data
- Packagin Size: 1 PCS/48 PCS
- Type: LC1D115AKUE
- Rated operation power at AC-3, 400 V: 55 kW
- Rated operation current Ie at AC-1, 400 V: 200 A
- Rated operation current Ie at AC-3, 400 V: 115 A
- Rated control supply voltage AC 50 Hz: 100-250 V
- Rated control supply voltage DC: 100-250 V
- Number of normally open contacts as main contact: 3
- Number of normally closed contacts as main contact: 0
- Voltage type for actuating: AC/DC
- Number of auxiliary contacts as normally open contact: 1
- Number of auxiliary contacts as normally closed contact: 1
- Type of electrical connection of main circuit: Screw connection
- Suitable for distribution board: No
- Rated operation current Ie at AC-4, 400 V: 115 A
- Rated operation power at AC-4, 400 V: 55 kW
- Rated control supply voltage AC 60 Hz: 100-250 V
- REACH Date: 2025-02-18
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
