Siemens

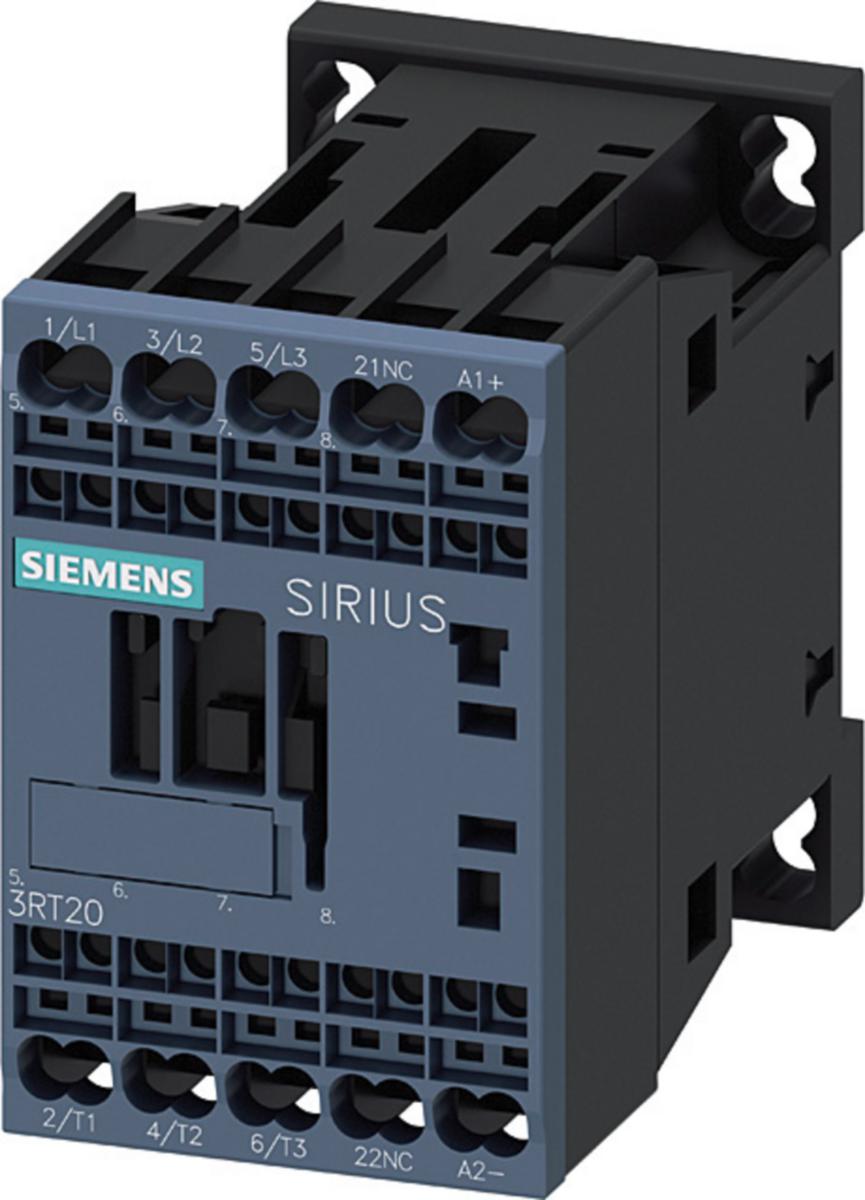

Contactor 3RT20 S00 3-18.5 kW DC-coil
CONTACTOR,AC3:4KW 1NC DC24V 3RT2016-2BB42
Article number: Suppl. article no:
3269246
3RT2016-2BB42
to see price and stock
DC power-operated, size S00.. Those having -0CC0 at the end of the type number have the opportunity to communicate.
- Article number: 3269246
- Suppl. article no: 3RT2016-2BB42
- Ean no: 4011209785373
- Material class QO340B
Technical data
- Type: 3RT2016-2BB42
- Rated operation power at AC-3, 400 V: 4 kW
- Rated operation current Ie at AC-1, 400 V: 22 A
- Rated operation current Ie at AC-3, 400 V: 9 A
- Rated control supply voltage DC: 24 V
- Number of normally open contacts as main contact: 3
- Number of normally closed contacts as main contact: -99999
- Voltage type for actuating: DC
- Number of auxiliary contacts as normally open contact: -99999
- Number of auxiliary contacts as normally closed contact: 1
- Type of electrical connection of main circuit: Spring clamp connection
- Suitable for distribution board: TRUE
- Rated operation current Ie at AC-4, 400 V: 8.5 A
- Rated operation power at AC-4, 400 V: 4 kW
- Rated operation power NEMA: 3.67749375 kW
- REACH Date: 2022-03-14
- REACH Information obligation: No
