Eaton

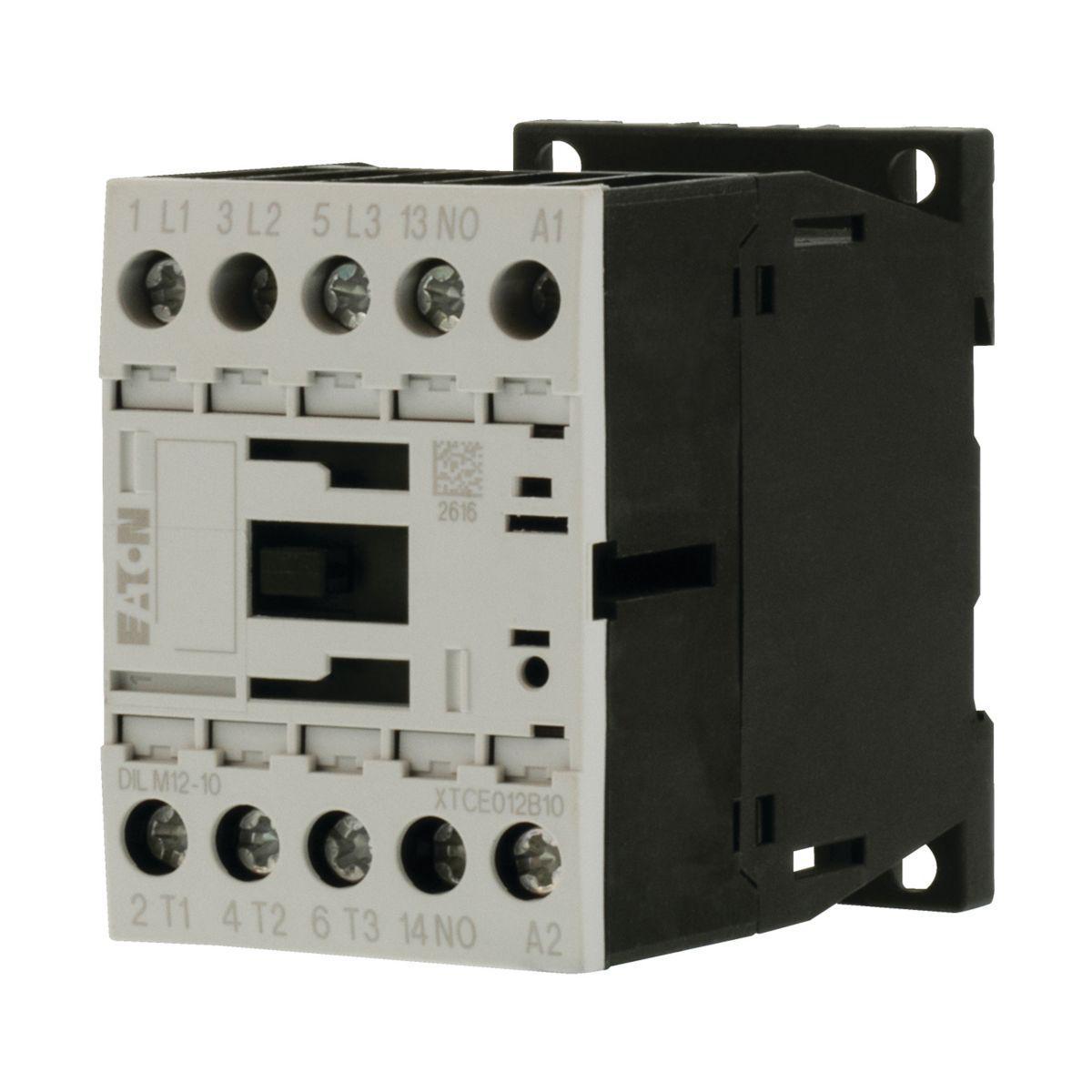

Contactor 3-pole 3-90 kW DILM7-DILM38, with inbuilt auxiliary switch, AC voltage operation
CONTACTOR 1N0.7.5KW 17A 276830
Article number: Suppl. article no:
3250794
Y7-276830
to see price and stock
Dimensions WxHxD: DILM7-DILM15: 45x68x75 mm, DILM17-DILM38: 45x85x97 mm
- Article number: 3250794
- Suppl. article no: Y7-276830
- Ean no: 4015082768300
- Material class QO320B
Technical data
- Type: DILM12-10
- Rated operation power at AC-3, 400 V: 5.5 kW
- Rated operation current Ie at AC-1, 400 V: 22 A
- Rated operation current Ie at AC-3, 400 V: 12 A
- Rated control supply voltage AC 50 Hz: 230 V
- Rated control supply voltage DC: 0 V
- Number of normally open contacts as main contact: 3
- Number of normally closed contacts as main contact: 0
- Voltage type for actuating: AC
- Number of auxiliary contacts as normally open contact: 1
- Number of auxiliary contacts as normally closed contact: 0
- Type of electrical connection of main circuit: Screw connection
- Suitable for distribution board: No
- Rated operation current Ie at AC-4, 400 V: 7 A
- Rated operation power at AC-4, 400 V: 3 kW
- Rated operation power NEMA: 7.4 kW
- Width: 45 mm
- Depth: 75 mm
- Height: 68 mm
- Rated control supply voltage AC 60 Hz: 240 V
- REACH Date: 2023-08-23
- Auxiliary contacts: 1 NO
- REACH Information obligation: No
