Schneider Electric
Contactor low-energy use 9-38 A, DC operated

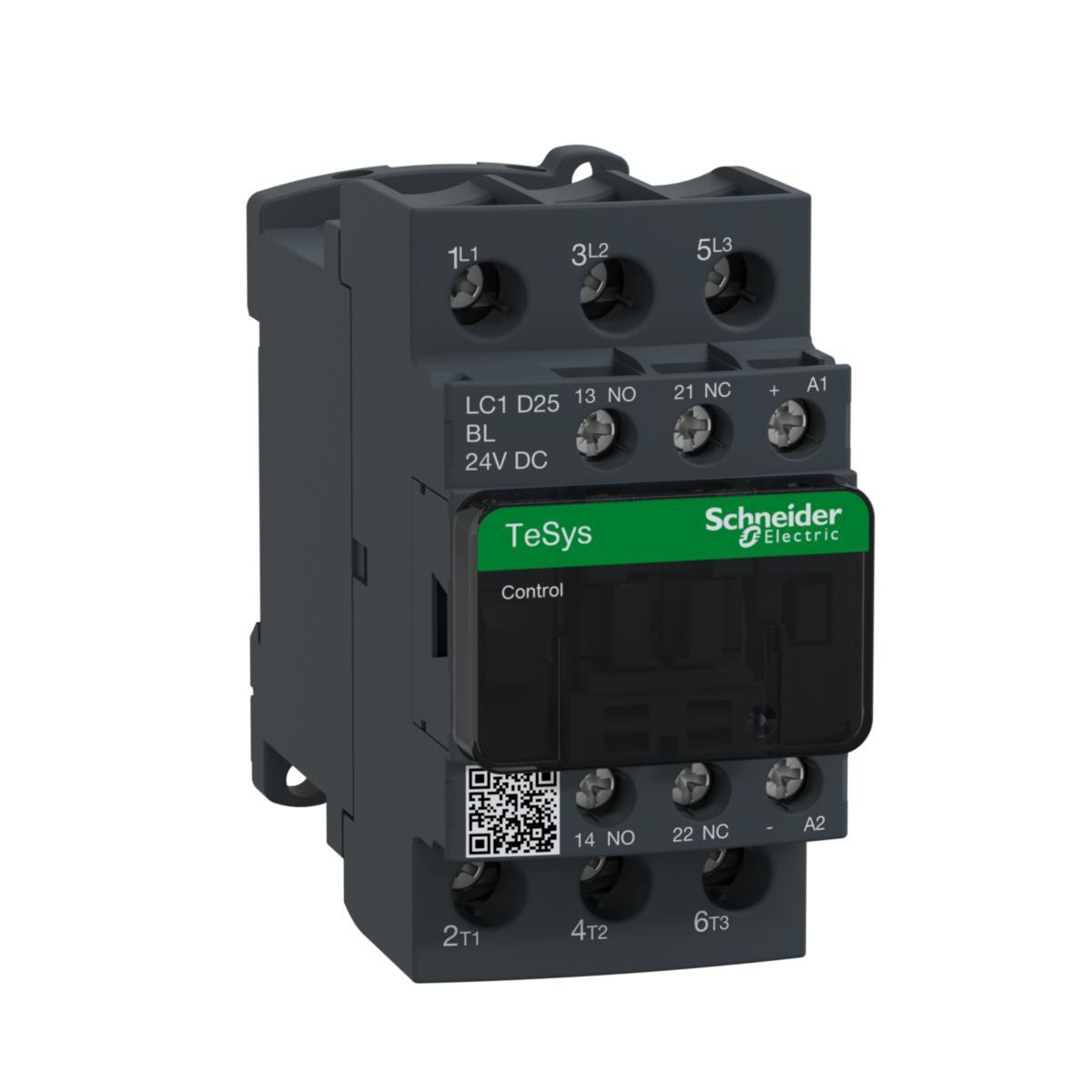

CONTACTOR 25A 11KW LC1D25BL
Article number: Suppl. article no:
3233251
LC1D25BL
to see price and stock
Direct current controlled. The coil’s power consumption 2.4 W. Integrated protection diode by default Only 2-pole front-mounted auxiliary contact block.
Open type.
Open type.
- Article number: 3233251
- Suppl. article no: LC1D25BL
- Ean no: 3389110361773
- Material class QO360B
Technical data
- Packagin Size: 1 ST/15 ST
- Type: LC1D25BL
- Design: Coil output 2.4 W
- Number of normally open contacts as main contact: 3
- Number of normally closed contacts as main contact: 0
- Number of auxiliary contacts as normally open contact: 1
- Number of auxiliary contacts as normally closed contact: 1
- Rated operation power at AC-3, 400 V: 11 kW
- Rated operation current Ie at AC-1, 400 V: 40 A
- Rated operation current Ie at AC-3, 400 V: 25 A
- Rated control supply voltage DC: 24 V
- Voltage type for actuating: DC
- Type of electrical connection of main circuit: Screw connection
- Suitable for distribution board: No
- Rated operation current Ie at AC-4, 400 V: 12 A
- Rated operation power at AC-4, 400 V: 5.5 kW
- Width: 45 mm
- Depth: 101 mm
- Height: 85 mm
- REACH Date: 2025-07-18
- REACH contains candidate substances: Bly
- GWP-tot (A1-A3): 2,913 kgCO2e/ST
- REACH Information obligation: Yes
