Schneider Electric
Contactor low-energy use 9-38 A, DC operated

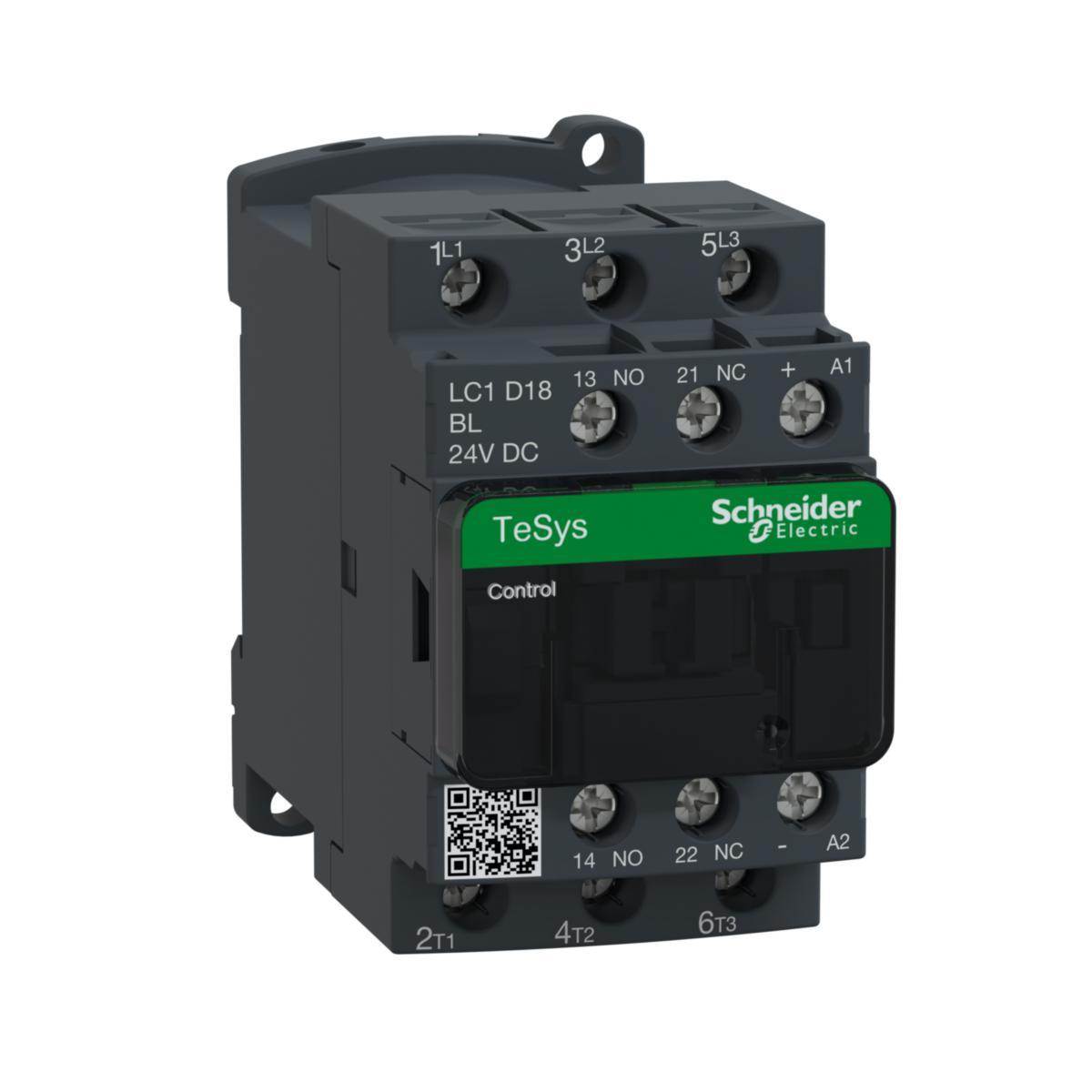

CONTACTOR 18A 7,5KW LC1D18BL
Article number: Suppl. article no:
3233241
LC1D18BL
to see price and stock
Direct current controlled. The coil’s power consumption 2.4 W. Integrated protection diode by default Only 2-pole front-mounted auxiliary contact block.
Open type.
Open type.
- Article number: 3233241
- Suppl. article no: LC1D18BL
- Ean no: 3389110361711
- Material class QO360B
Technical data
- Packagin Size: 1 ST/20 ST
- Type: LC1D18BL
- Design: Coil output 2.4 W
- Number of normally open contacts as main contact: 3
- Number of normally closed contacts as main contact: 0
- Number of auxiliary contacts as normally open contact: 1
- Number of auxiliary contacts as normally closed contact: 1
- Rated operation power at AC-3, 400 V: 7.5 kW
- Rated operation current Ie at AC-1, 400 V: 32 A
- Rated operation current Ie at AC-3, 400 V: 18 A
- Rated control supply voltage DC: 24 V
- Voltage type for actuating: DC
- Type of electrical connection of main circuit: Screw connection
- Suitable for distribution board: No
- Rated operation current Ie at AC-4, 400 V: 9 A
- Rated operation power at AC-4, 400 V: 4 kW
- Width: 45 mm
- Depth: 95 mm
- Height: 77 mm
- REACH Date: 2025-07-18
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
