Schneider Electric
Contactor 80-150A LC1D, AC coil

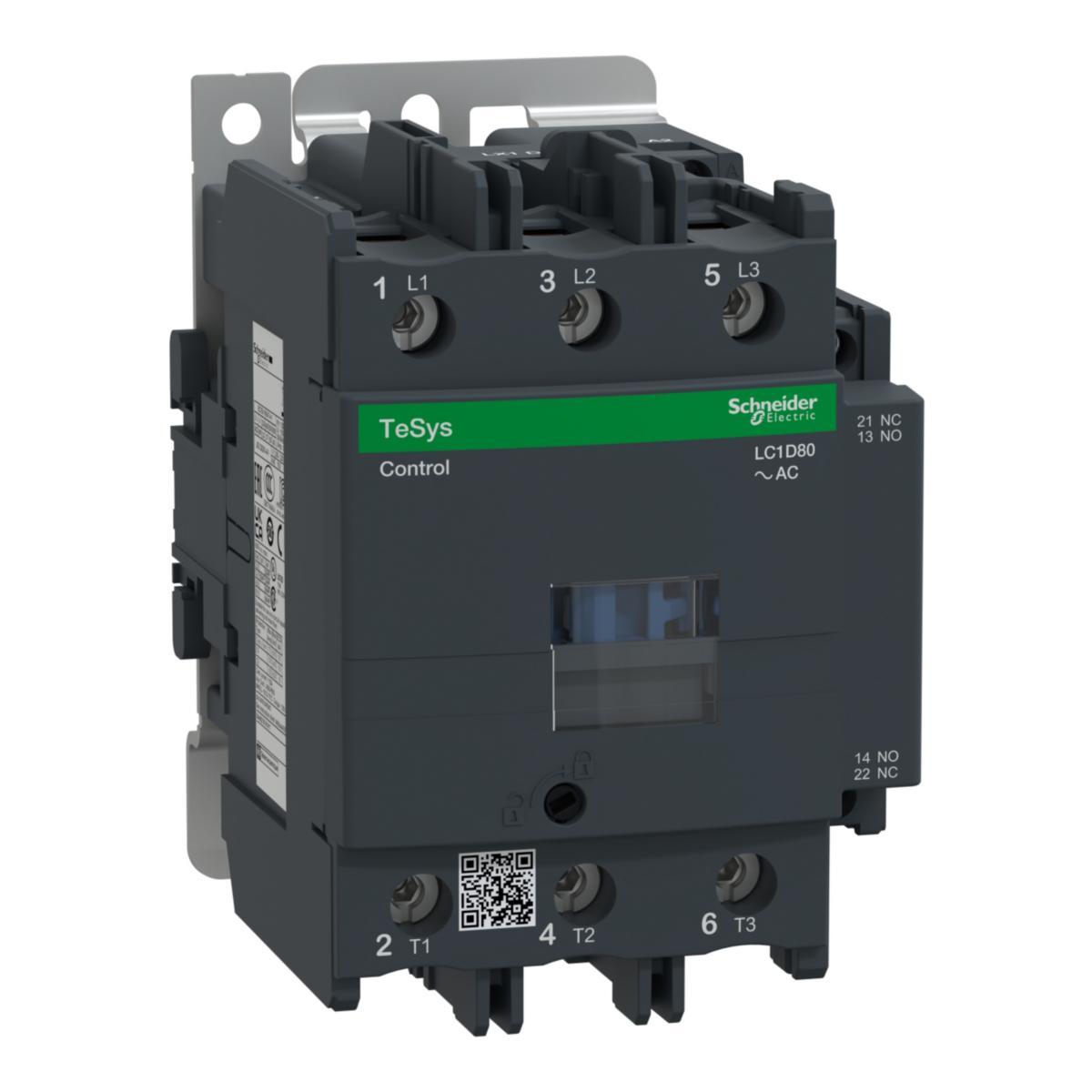

CONTACTOR LC1D80F7
Article number: Suppl. article no:
3233093
LC1D80F7
to see price and stock
AC operated. 1sl + 1br auxiliary contact standard. Uncapsulated. 3-pole.
- Article number: 3233093
- Suppl. article no: LC1D80F7
- Ean no: 3389110440782
- Material class QO360B
Technical data
- Packagin Size: 1 ST/5 ST
- Type: LC1D80F7
- Rated operation power at AC-3, 400 V: 37 kW
- Rated operation current Ie at AC-1, 400 V: 125 A
- Rated operation current Ie at AC-3, 400 V: 80 A
- Rated control supply voltage AC 50 Hz: 110 V
- Number of normally open contacts as main contact: 3
- Number of normally closed contacts as main contact: 0
- Voltage type for actuating: AC
- Number of auxiliary contacts as normally open contact: 1
- Number of auxiliary contacts as normally closed contact: 1
- Type of electrical connection of main circuit: Screw connection
- Suitable for distribution board: No
- Rated operation current Ie at AC-4, 400 V: 32 A
- Rated operation power at AC-4, 400 V: 15 kW
- Width: 85 mm
- Depth: 130 mm
- Operating voltage AC 50 Hz: 440 V
- Operating voltage AC 60 Hz: 440 V
- Height: 127 mm
- Rated control supply voltage AC 60 Hz: 110 V
- REACH Date: 2024-07-31
- REACH Information obligation: No
