Schneider Electric
Contactor 9-38A LC1D, AC coil

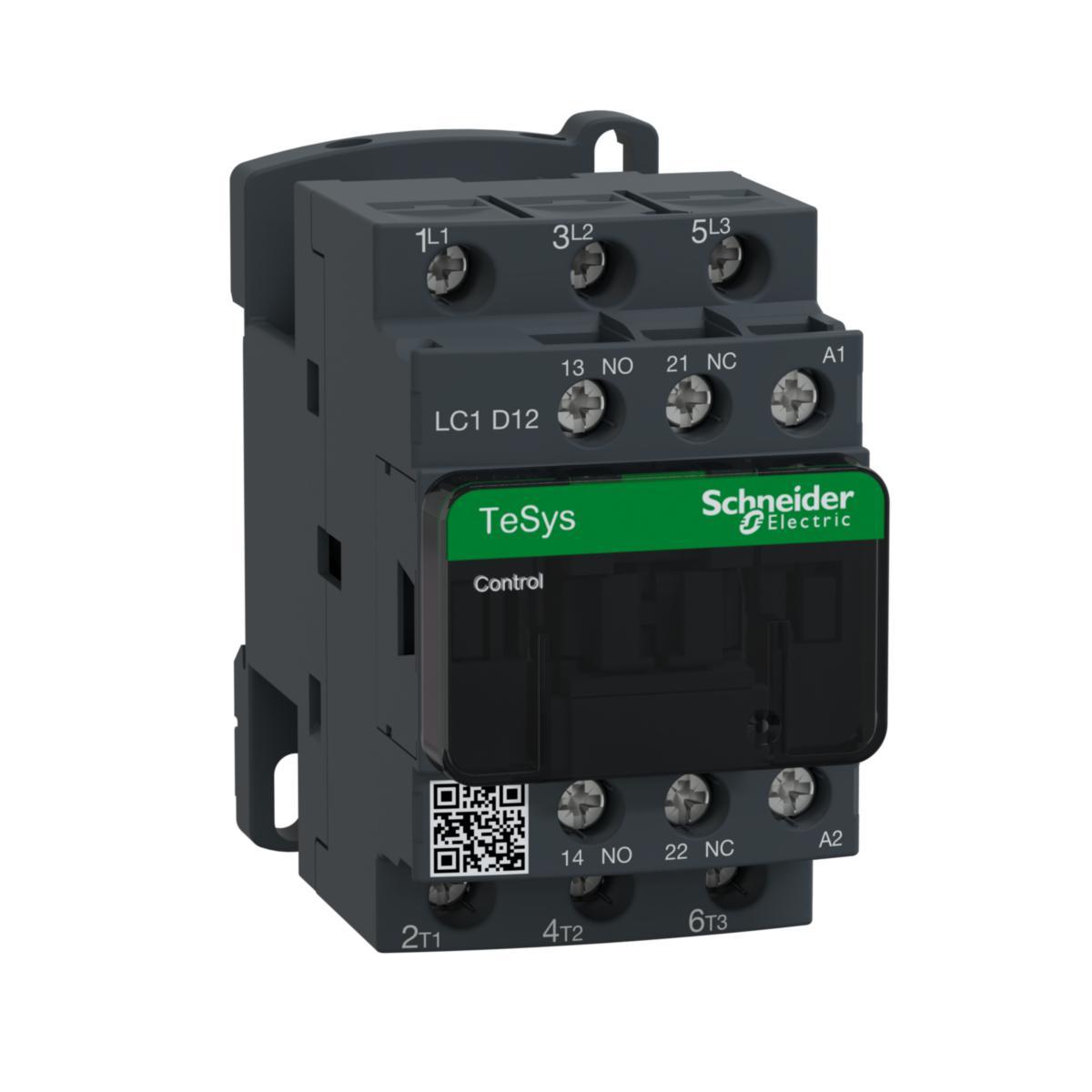

CONTACTOR 12A 5,5KW LC1D12B7
Article number: Suppl. article no:
3233011
LC1D12B7
to see price and stock
AC operated. 1sl+1br auxiliary contact standard. Unencapsulated. 3-pole.
- Article number: 3233011
- Suppl. article no: LC1D12B7
- Ean no: 3389110349160
- Material class QO360B
Technical data
- Packagin Size: 1 ST/20 ST
- Type: LC1D12B7
- Rated operation power at AC-3, 400 V: 5.5 kW
- Rated operation current Ie at AC-1, 400 V: 25 A
- Rated operation current Ie at AC-3, 400 V: 12 A
- Rated control supply voltage AC 50 Hz: 24 V
- Rated control supply voltage DC: 0 V
- Number of normally open contacts as main contact: 3
- Number of normally closed contacts as main contact: 0
- Voltage type for actuating: AC
- Number of auxiliary contacts as normally open contact: 1
- Number of auxiliary contacts as normally closed contact: 1
- Type of electrical connection of main circuit: Screw connection
- Suitable for distribution board: No
- Rated operation current Ie at AC-4, 400 V: 7.5 A
- Rated operation power at AC-4, 400 V: 3 kW
- Rated control supply voltage AC 60 Hz: 24 V
- REACH Date: 2022-07-20
- REACH Information obligation: No
