Schneider Electric
Contactor 4-pole LC1D 20-40 A

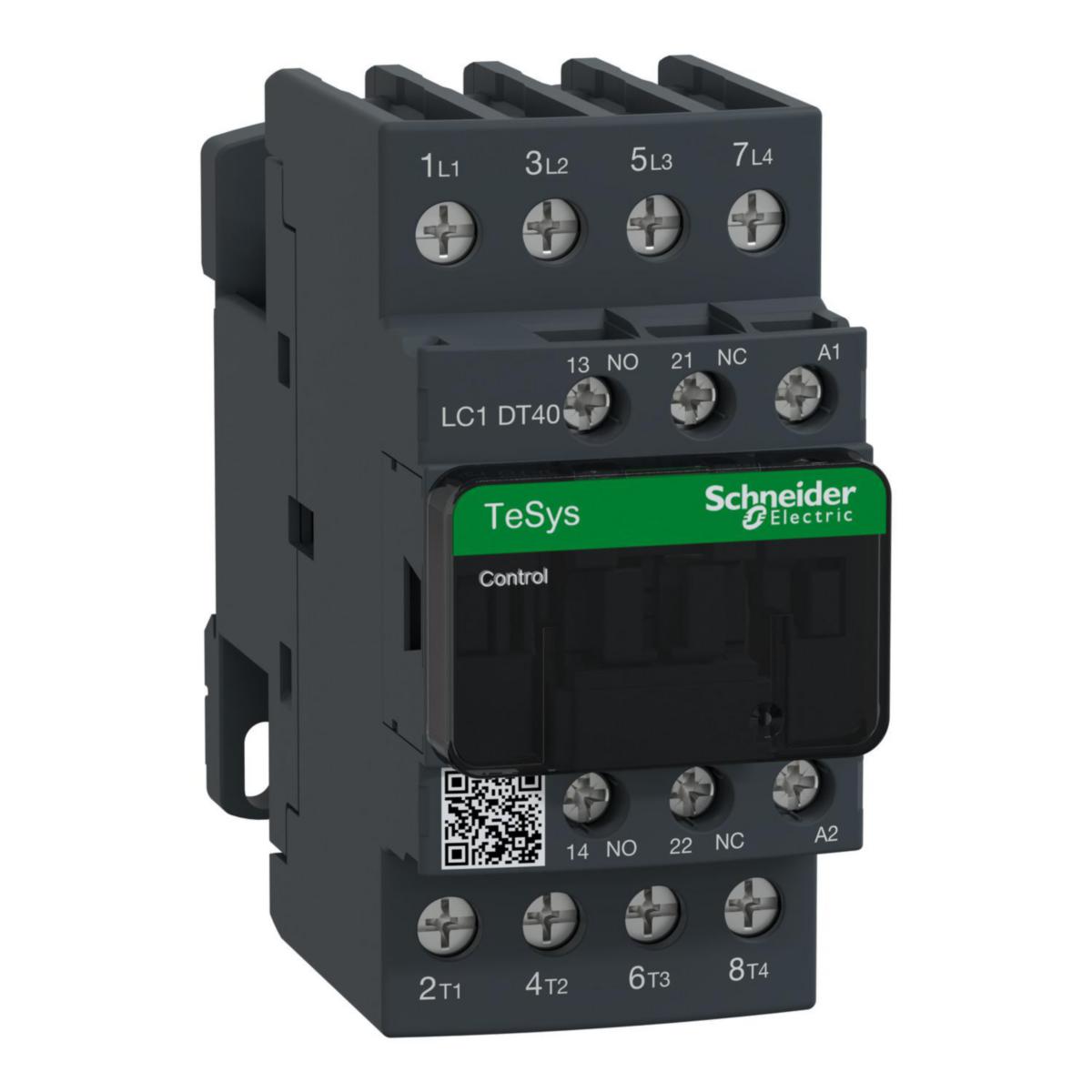

Contactor 4NO AC1 40A 230V LC1DT40P7
Article number: Suppl. article no:
3232174
LC1DT40P7
to see price and stock
4-pole, AC operated
- Article number: 3232174
- Suppl. article no: LC1DT40P7
- Ean no: 3389110244779
- Material class QO360B
Technical data
- Type: LC1DT40P7
- Number of normally open contacts as main contact: 4
- Number of normally closed contacts as main contact: 0
- Number of auxiliary contacts as normally open contact: 1
- Number of auxiliary contacts as normally closed contact: 1
- Rated operation current Ie at AC-1, 400 V: 40 A
- Rated operation current Ie at AC-3, 400 V: 0 A
- Rated control supply voltage AC 50 Hz: 230 V
- Voltage type for actuating: AC
- Type of electrical connection of main circuit: Screw connection
- Suitable for distribution board: No
- Rated operation current Ie at AC-4, 400 V: 0 A
- Width: 45 mm
- Depth: 99 mm
- Operating voltage AC 50 Hz: 440 V
- Operating voltage AC 60 Hz: 440 V
- Height: 91 mm
- Rated control supply voltage AC 60 Hz: 230 V
- REACH Date: 2025-07-18
- GWP-tot (A1-A3): 2,6125 kgCO2e/ST
- REACH Information obligation: No
