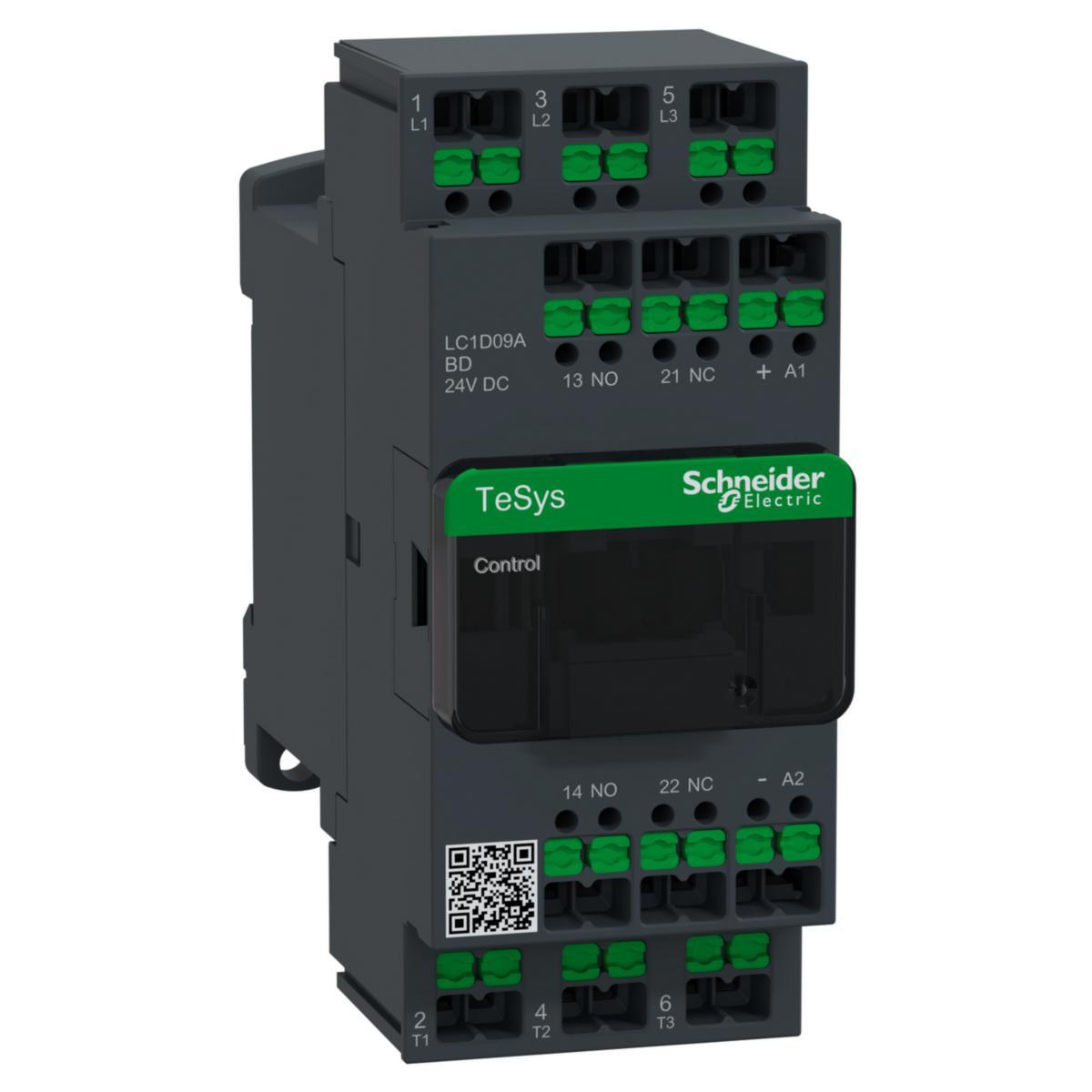

Contactor LC1D DC coil 9-38A Snap-in
CTR DECA 09A 3P 24V DC SNAP-IN
Article number: Suppl. article no:
3230866
LC1D09ABD
to see price and stock
Contactor LC1D DC coil 9-38A Snap-in
- Article number: 3230866
- Suppl. article no: LC1D09ABD
- Ean no: 3606487538486
- Material class QO3600
Technical data
- Packagin Size: 1 PCS/15 PCS
- Type: LC1D09ABD
- Number of normally open contacts as main contact: 3
- Number of normally closed contacts as main contact: 0
- Number of auxiliary contacts as normally open contact: 1
- Number of auxiliary contacts as normally closed contact: 1
- Rated operation power at AC-3, 400 V: 4 kW
- Rated operation current Ie at AC-1, 400 V: 25 A
- Rated operation current Ie at AC-3, 400 V: 9 A
- Rated control supply voltage DC: 24 V
- Voltage type for actuating: DC
- Type of electrical connection of main circuit: Other
- Suitable for distribution board: No
- Width: 45 mm
- Depth: 95 mm
- Height: 107 mm
- REACH Date: 2025-07-18
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
