Schneider Electric

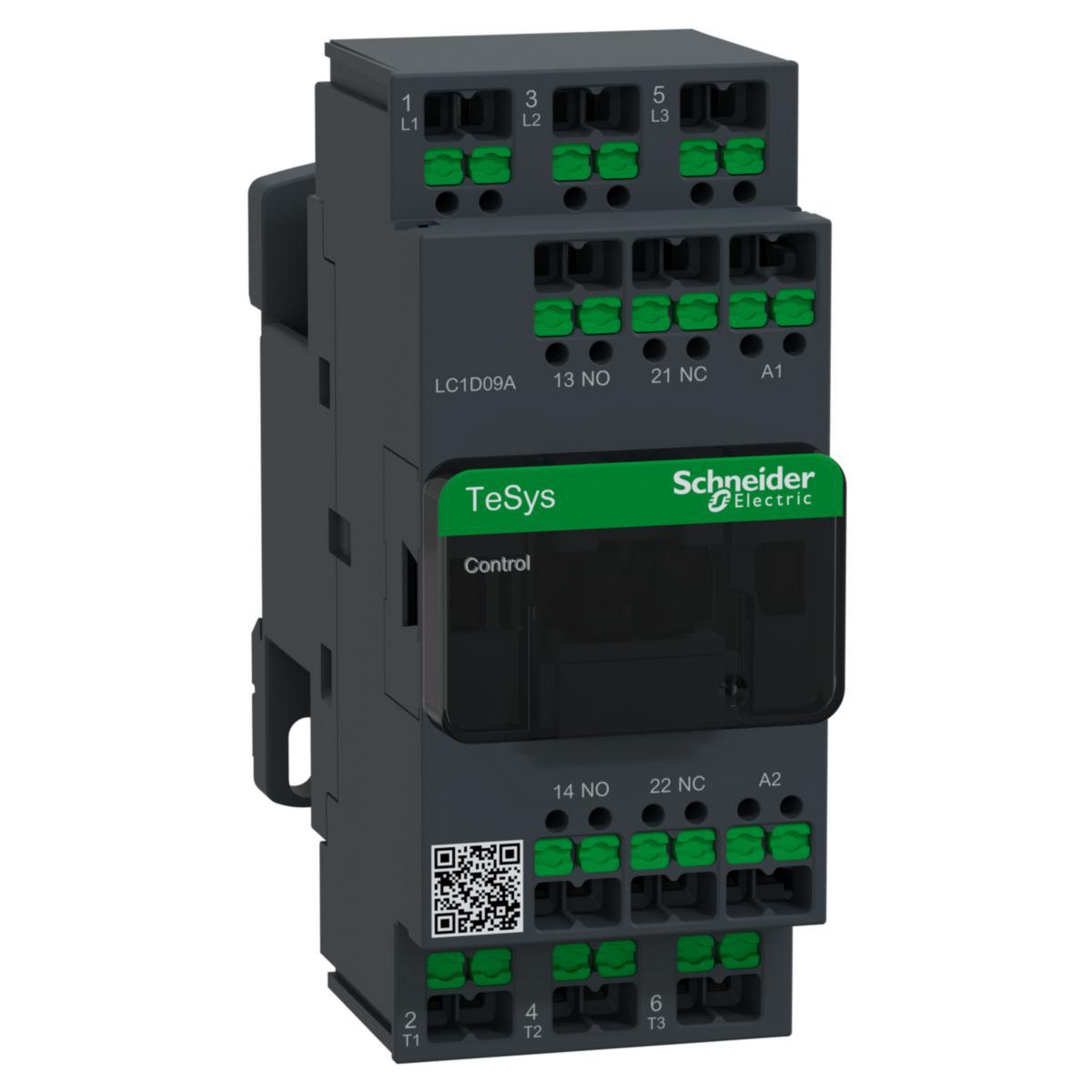

Contactor 9-18A LC1D AC Coil Snap-in
CTR DECA 09A 3P 24V AC SNAP-IN
Article number: Suppl. article no:
3230865
LC1D09AB7
to see price and stock
Contactor 9-18A LC1D AC Coil Snap-in
- Article number: 3230865
- Suppl. article no: LC1D09AB7
- Ean no: 3606487538479
- Material class QO3600
Technical data
- Packagin Size: 1 PCS/15 PCS
- Type: LC1D09AB7
- Number of normally open contacts as main contact: 3
- Number of normally closed contacts as main contact: 0
- Number of auxiliary contacts as normally open contact: 1
- Number of auxiliary contacts as normally closed contact: 1
- Rated operation power at AC-3, 400 V: 4 kW
- Rated operation current Ie at AC-1, 400 V: 25 A
- Rated operation current Ie at AC-3, 400 V: 9 A
- Rated control supply voltage AC 50 Hz: 24 V
- Voltage type for actuating: AC
- Type of electrical connection of main circuit: Other
- Suitable for distribution board: No
- Width: 45 mm
- Depth: 86 mm
- Operating voltage AC 50 Hz: 440 V
- Operating voltage AC 60 Hz: 440 V
- Height: 107 mm
- Rated control supply voltage AC 60 Hz: 24 V
- REACH Date: 2025-07-18
- REACH Information obligation: No
