ABB

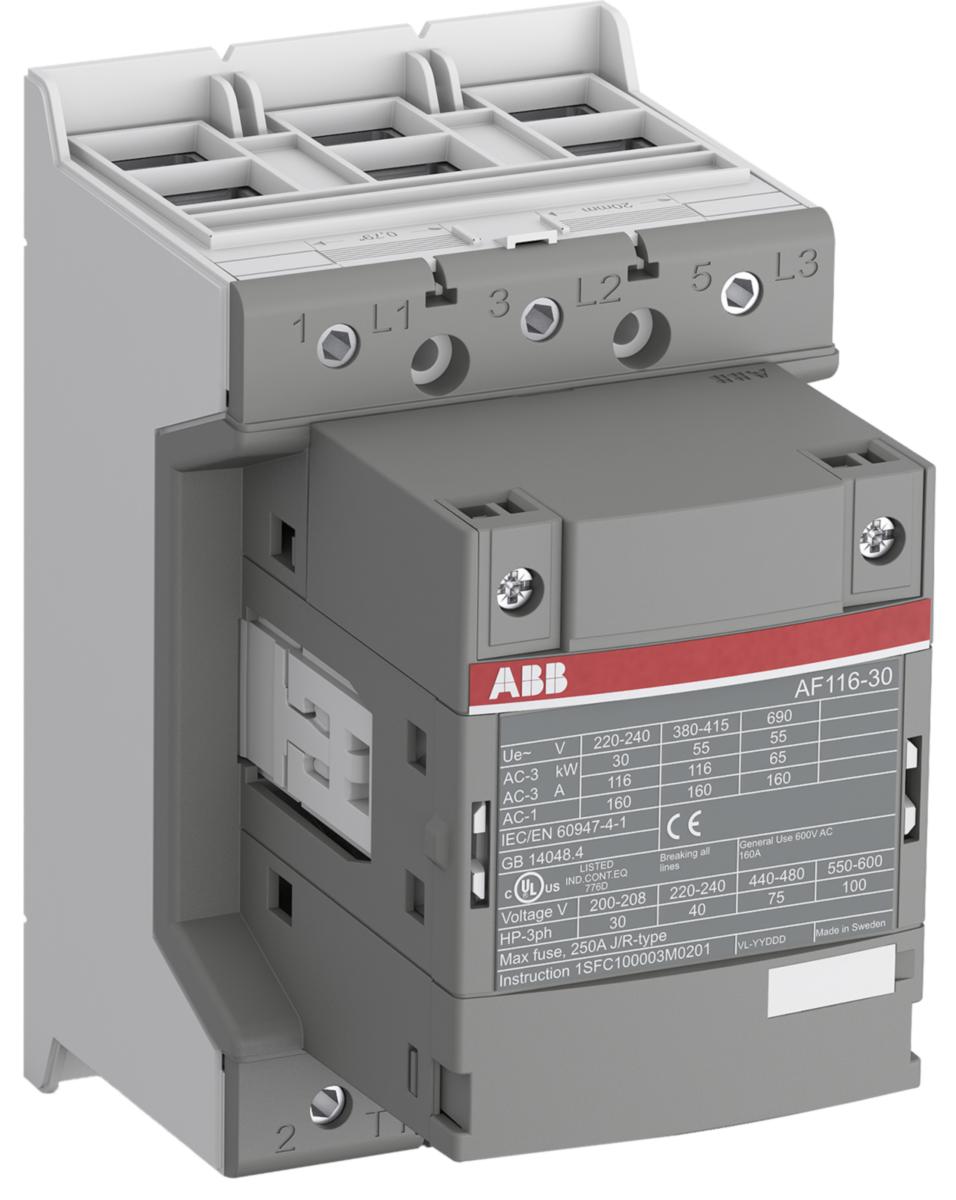

Contactor 3-pole type AF 116-AF 370
AF116-30-11-13 CONTACTOR 1SFL427001R1311
Article number: Suppl. article no:
3210068
1SFL427001R1311
to see price and stock
Motor contactors halogen, cadmium and phosphorus free. Isolation rated voltage 1000V. 3 closing main contacts and separate auxiliary contact features. The contactor has a coil interface with a wide voltage range and is tolerant to voltage fluctuations.
- Article number: 3210068
- Suppl. article no: 1SFL427001R1311
- Ean no: 7320500476376
- Material class QO300B
Technical data
- Type: AF116-30-11-13
- Rated operation power at AC-3, 400 V: 55 kW
- Rated operation current Ie at AC-1, 400 V: 160 A
- Rated operation current Ie at AC-3, 400 V: 116 A
- Rated control supply voltage AC 50 Hz: 100-250 V
- Rated control supply voltage DC: 100-250 V
- Number of normally open contacts as main contact: 3
- Number of normally closed contacts as main contact: 0
- Voltage type for actuating: AC/DC
- Number of auxiliary contacts as normally open contact: 1
- Number of auxiliary contacts as normally closed contact: 1
- Type of electrical connection of main circuit: Cable clamp
- Suitable for distribution board: No
- Rated operation power NEMA: 55.9275 kW
- Rated control supply voltage AC 60 Hz: 100-250 V
- REACH Date: 2023-01-18
- REACH Information obligation: No
