Eaton
Impulse relay DIL ER

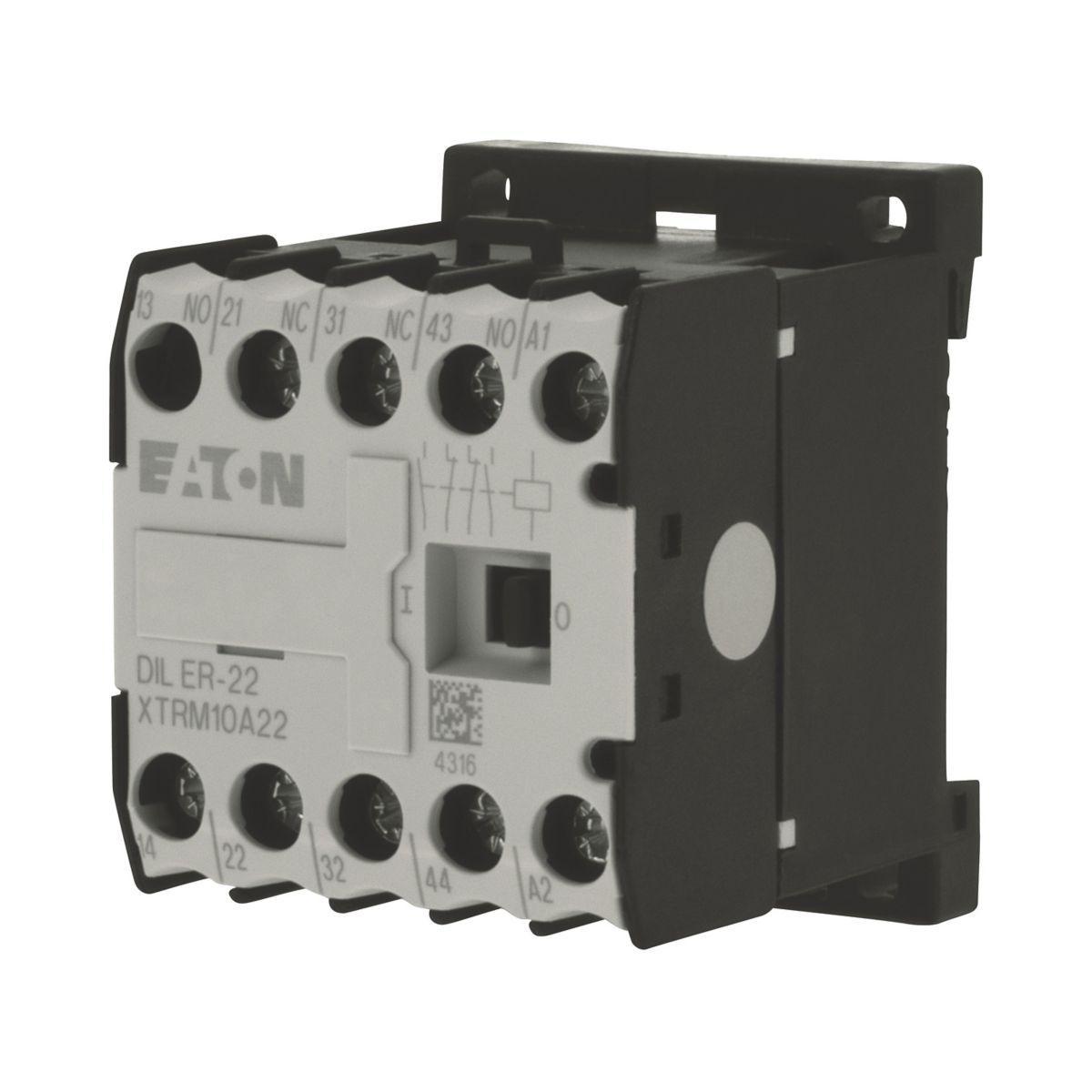

IMPULSE RELAY DIL ER-22 230V 2+2
Article number: Suppl. article no:
3250104
Y7-51777
to see price and stock
The DIL E mini connector is an extra-compact, economical, and environmentally friendly solution for sites that require the control of small motors or loads.
- Article number: 3250104
- Suppl. article no: Y7-51777
- Ean no: 4015080517771
- Material class QO320B
Technical data
- Packagin Size: 1 PCS/5 PCS
- Type: DIL ER-22
- Rated control supply voltage AC 50 Hz: 230 V
- Rated control supply voltage DC: 0 V
- Voltage type for actuating: AC
- Rated operation current Ie, 400 V: 3 A
- Connection type auxiliary circuit: Screw connection
- Number of auxiliary contacts as normally open contact: 2
- Number of auxiliary contacts as normally closed contact: 2
- Number of auxiliary contacts as normally closed contact, delayed switching: 0
- Number of auxiliary contacts as normally open contact, leading: 0
- Number of auxiliary contacts as change-over contact: 0
- Rated control supply voltage AC 60 Hz: 240 V
- Interface: No
- With LED indication: No
- Mounting method: DIN-rail/screw
- REACH Date: 2023-08-23
- REACH Information obligation: No
