Schneider Electric

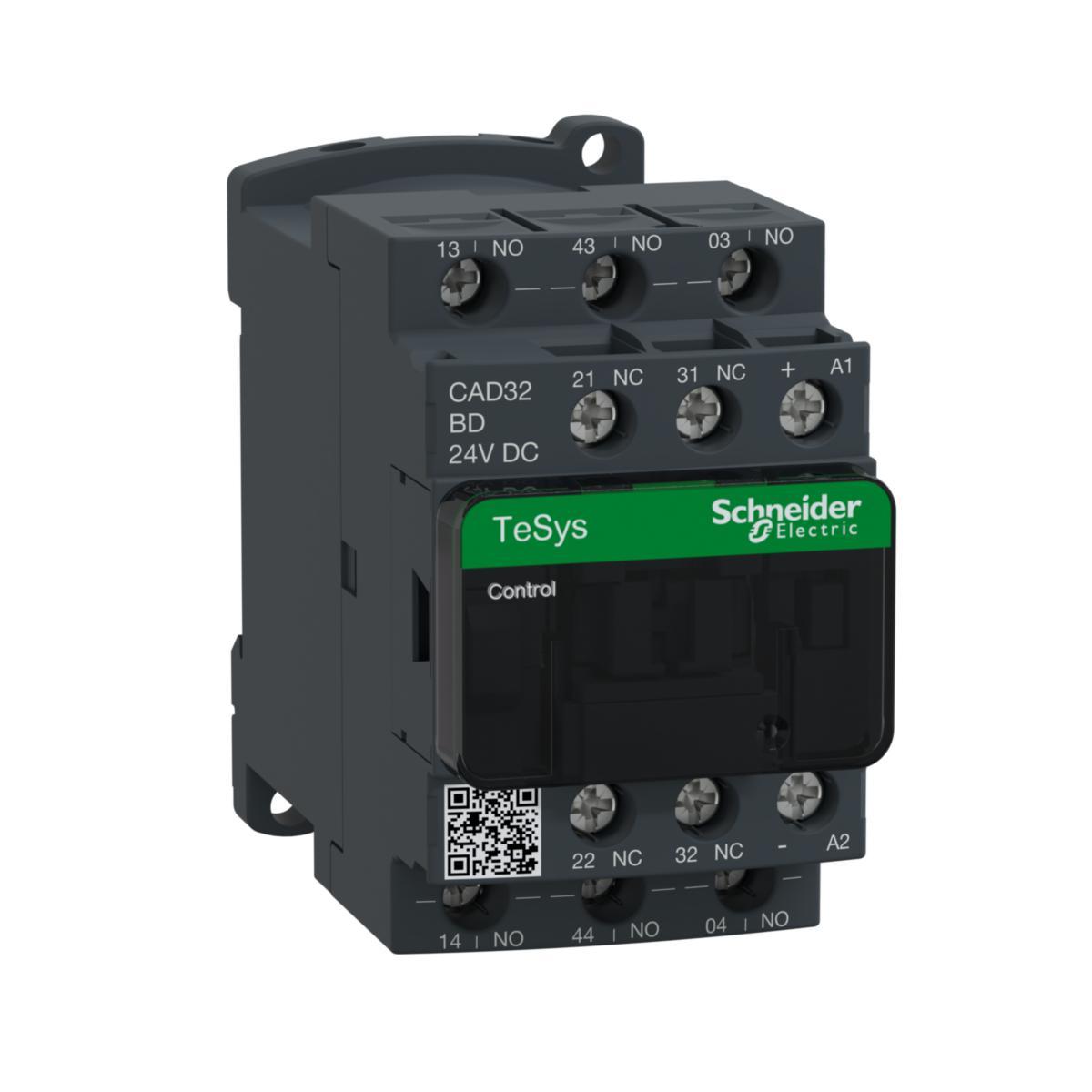

Auxiliary relay CAD direct current operated
Control relay 3NO2NC<=690V 24V CAD32BD
Article number: Suppl. article no:
3232021
CAD32BD
to see price and stock
Direct current controlled. Tamper-proof connections. Supplied with all connections screws. The help relay is intended for screw mounting or snap-in mounting on 35mm rail. The extension block (help contact block or time device) is mounted on the help of relay with a simple snap-in fixing without screws.
Thermal rated current (ith) 10 A
Thermal rated current (ith) 10 A
- Article number: 3232021
- Suppl. article no: CAD32BD
- Ean no: 3389110404166
- Material class QO360B
Technical data
- Packagin Size: 1 ST/20 ST
- Type: CAD32BD
- Design: Coil output 5.4 W
- Rated control supply voltage DC: 24 V
- Voltage type for actuating: DC
- Rated operation current Ie, 400 V: 10 A
- Connection type auxiliary circuit: Screw connection
- Number of auxiliary contacts as normally open contact: 3
- Number of auxiliary contacts as normally closed contact: 2
- Number of auxiliary contacts as normally closed contact, delayed switching: 0
- Number of auxiliary contacts as normally open contact, leading: 0
- Number of auxiliary contacts as change-over contact: 0
- Width: 45 mm
- Depth: 84 mm
- Height: 77 mm
- Interface: No
- Suitable for manual operation: No
- With LED indication: No
- Mounting method: DIN-rail/screw
- Operating voltage DC: 690 V
- Rated operation current: 10 A
- Rated switch current: 0.005 A
- Voltage type (operating voltage): DC
- REACH Date: 2025-07-18
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
