Kraus & Naimer

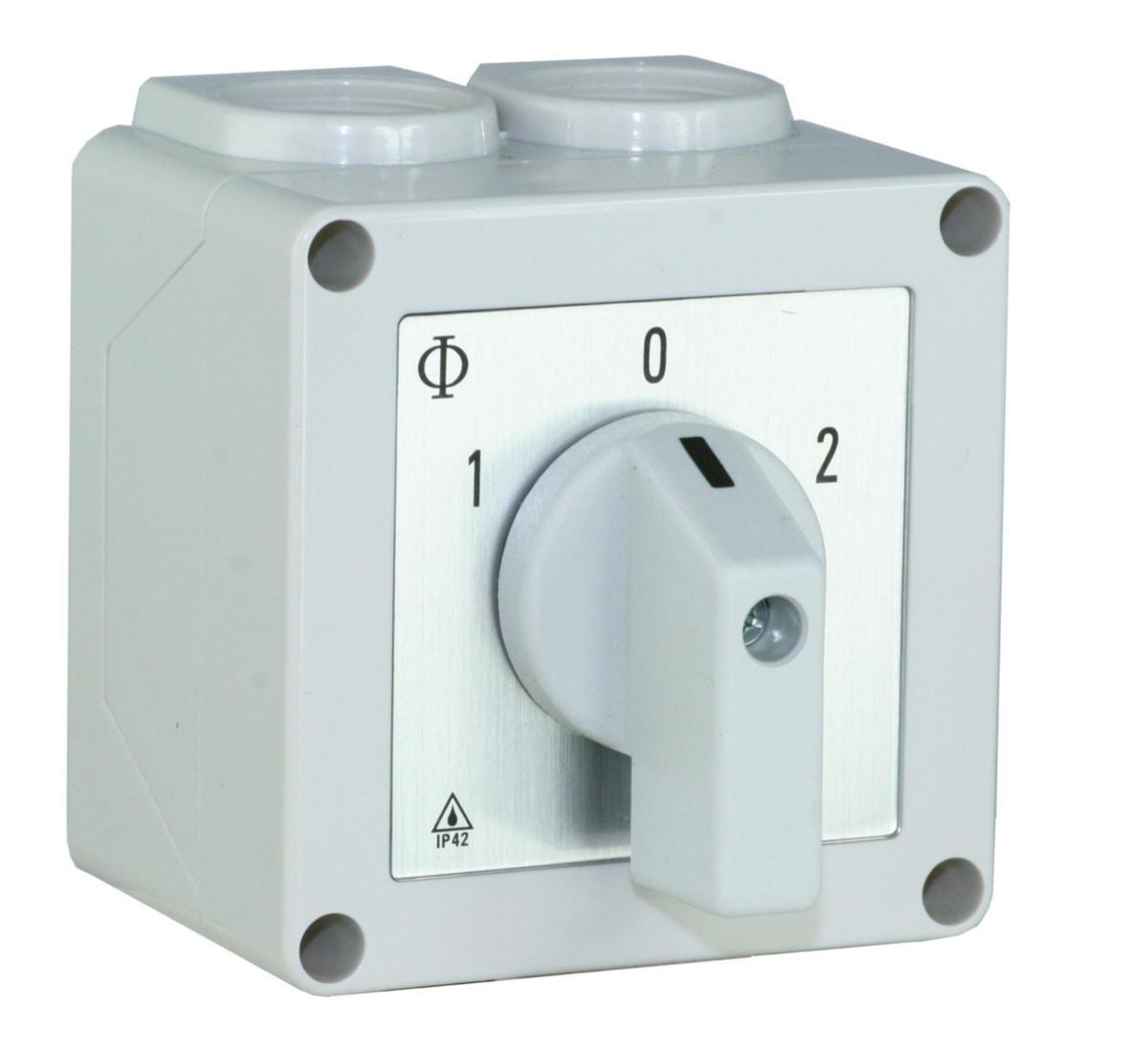

Switch zero position 1-0-2
SWITCH CA10 A210 PN1
Article number: Suppl. article no:
3134971
70002200
to see price and stock
Connection diagram A210
- Article number: 3134971
- Suppl. article no: 70002200
- Ean no: 9004257083930
- Replaces art.nbr: 1934616
- Material class QO280B
Technical data
- Packagin Size: 1 PCS/6 PCS
- Type: CA10 A210 PN1
- Design: Encapsulated 1-0-2
- Number of poles: 1
- Max. rated operation voltage Ue AC: 690 V
- Rated permanent current Iu: 20 A
- Number of switch positions: 3
- With zero (off) position: Yes
- With retraction in 0-position: No
- Device construction: Surface mounted device
- Front shield size: 48x48 mm
- Complete device in housing: Yes
- Degree of protection (IP), front side: IP42
- Suitable for floor mounting: Yes
- Suitable for front mounting: No
- Suitable for distribution board installation: No
- Suitable for intermediate mounting: No
- Type of control element: Turn button
