ABB

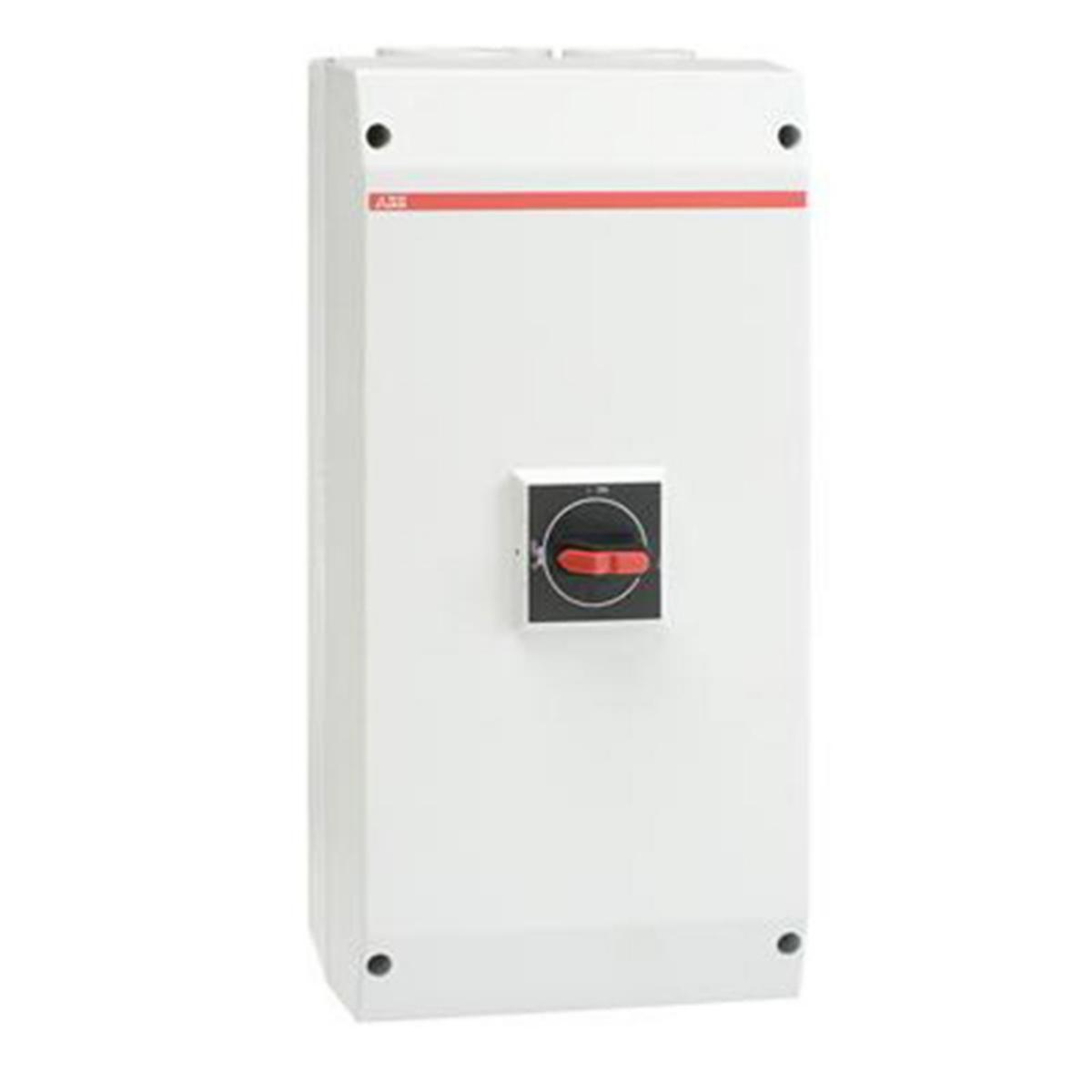

Safety switch OT 3-pole light-grey 16-90 A
OTP75T3M SAFETY SWITCH 1SCA022812R2890
Article number: Suppl. article no:
3134544
1SCA022812R2890
to see price and stock
Safety switch with plastic housing 16-1000A, 3-pin
- Article number: 3134544
- Suppl. article no: 1SCA022812R2890
- Ean no: 6417019274447
- Material class QO1300
Technical data
- Rated permanent current at AC-23, 400 V: 80 A
- Rated permanent current Iu: 115 A
- Colour: Grey
- Number of poles: 3
- Number of auxiliary contacts as normally open contact: 1
- Version as main switch: TRUE
- Version as maintenance-/service switch: TRUE
- Version as safety switch: TRUE
- Max. rated operation voltage Ue AC: 750 V
- Rated operation power at AC-23, 400 V: 37 kW
- Rated permanent current at AC-21, 400 V: 100 A
- Version as emergency stop installation: FALSE
- Degree of protection (IP), front side: IP65
- Number of switches: 1
- Rated operating voltage: 750 V
- Rated operation power at AC-3, 400 V: 37 kW
- Number of auxiliary contacts as change-over contact: 0
- Colour control element: Black
- Width: 200 mm
- Height: 400 mm
- Depth: 140 mm
- Device construction: Complete device in housing
- Motor drive integrated: FALSE
- Interlockable: TRUE
- Suitable for front mounting 4-hole: FALSE
- Suitable for front mounting centre: FALSE
- Suitable for floor mounting: FALSE
- Suitable for distribution board installation: TRUE
- Suitable for intermediate mounting: FALSE
- Motor drive optional: FALSE
- Voltage release optional: FALSE
- Type of control element: Long rotary handle
- Version as reversing switch: FALSE
- Rated short-time withstand current lcw: 2.5 kA
- Switching power at 400 V: 37 kW
- REACH Date: 2023-01-18
- REACH Information obligation: No
