ABB

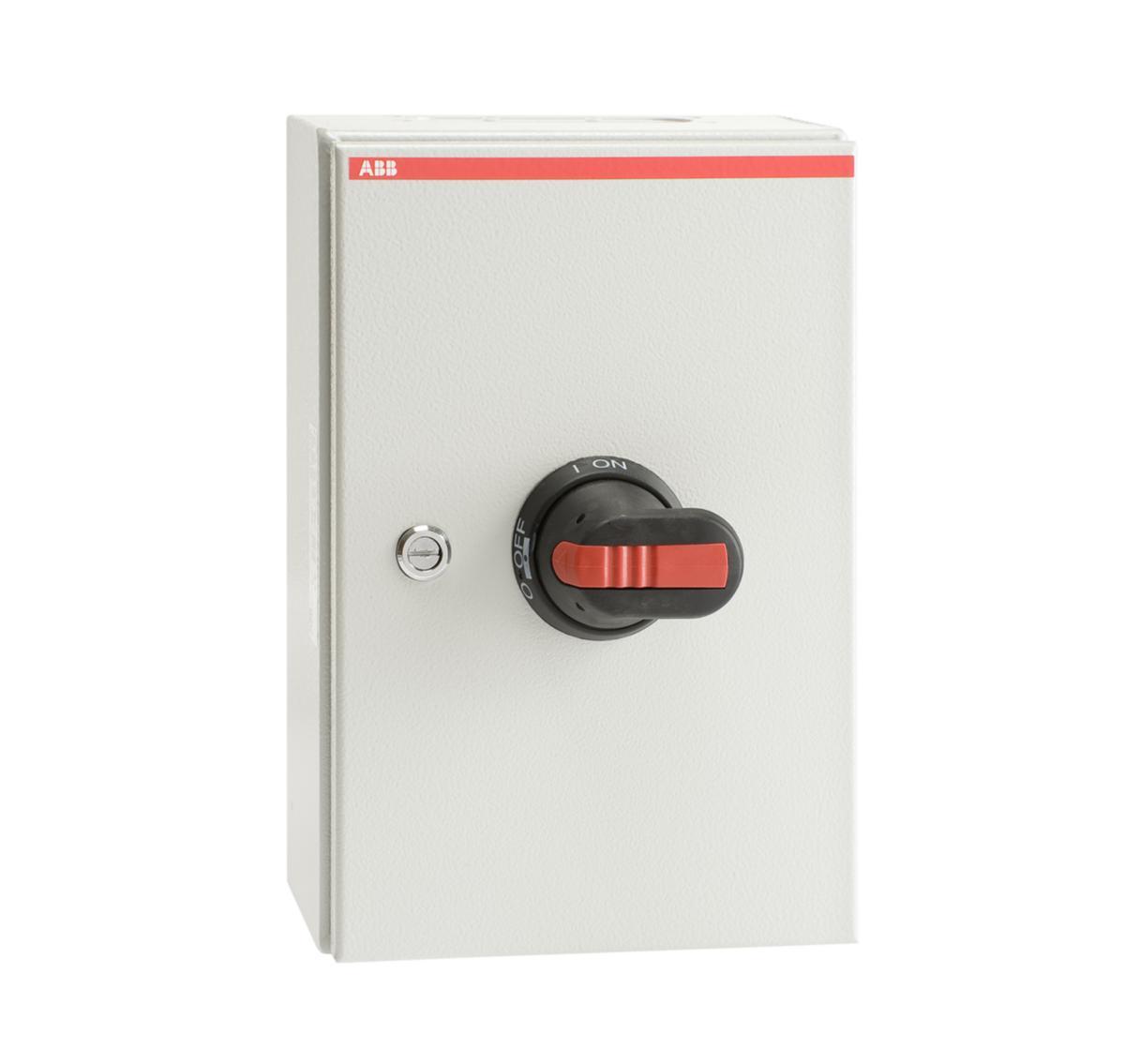

Safety switch OT 3-pole steel plate casing 16-90 A
SAFETY SWITCH PLATE 3-POLE OTL75T3B
Article number: Suppl. article no:
3140554
1SCA022546R0820
to see price and stock

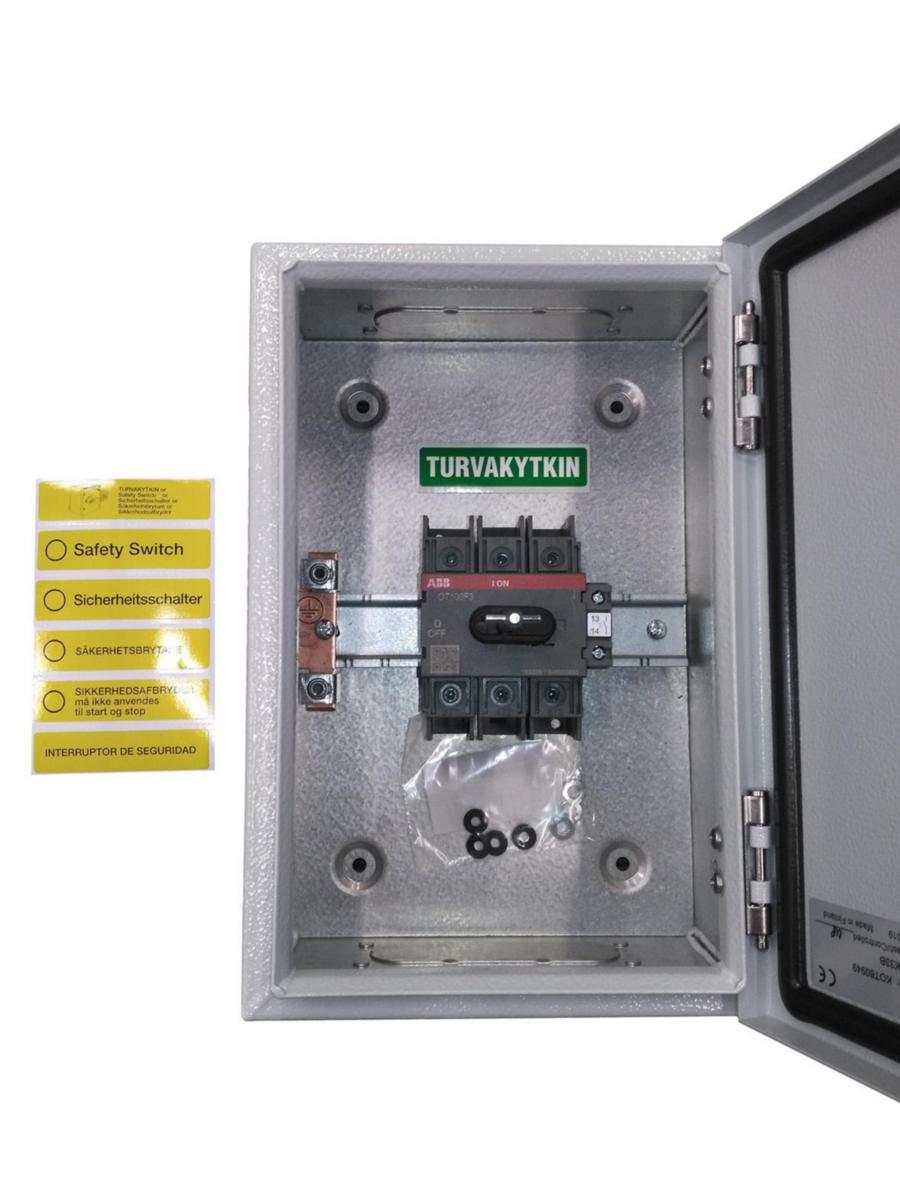

With FL 13 cable entry top and bottom.
Additional auxiliary contacts can be installed in the safety switch instead of supplied in standard version.
Additional auxiliary contacts can be installed in the safety switch instead of supplied in standard version.
- Article number: 3140554
- Suppl. article no: 1SCA022546R0820
- Ean no: 6417019174556
- Material class QO1300
Technical data
- Type: OTL 75T3B
- Design: Pistol handle
- Rated permanent current at AC-23, 400 V: 80 A
- Colour control element: Black
- Rated permanent current Iu: 115 A
- Number of poles: 3
- Number of auxiliary contacts as normally open contact: 1
- Number of auxiliary contacts as normally closed contact: 0
- Version as main switch: Yes
- Version as maintenance-/service switch: Yes
- Version as safety switch: Yes
- Max. rated operation voltage Ue AC: 750 V
- Rated operation power at AC-23, 400 V: 37 kW
- Rated permanent current at AC-21, 400 V: 100 A
- Version as emergency stop installation: No
- Degree of protection (IP), front side: IP65
- Number of switches: 1
- Rated operating voltage: 750 V
- Rated operation power at AC-3, 400 V: 37 kW
- Number of auxiliary contacts as change-over contact: 0
- Width: 300 mm
- Height: 200 mm
- Depth: 135 mm
- Device construction: Complete device in housing
- Type of electrical connection of main circuit: Screw connection
- Motor drive integrated: No
- Interlockable: Yes
- Suitable for front mounting 4-hole: No
- Suitable for front mounting centre: No
- Suitable for floor mounting: No
- Suitable for distribution board installation: Yes
- Suitable for intermediate mounting: No
- Motor drive optional: No
- Voltage release optional: No
- Type of control element: Long rotary handle
- Version as reversing switch: No
- Rated short-time withstand current lcw: 2.5 kA
- Switching power at 400 V: 37 kW
- REACH Date: 2023-01-18
- REACH Information obligation: No
